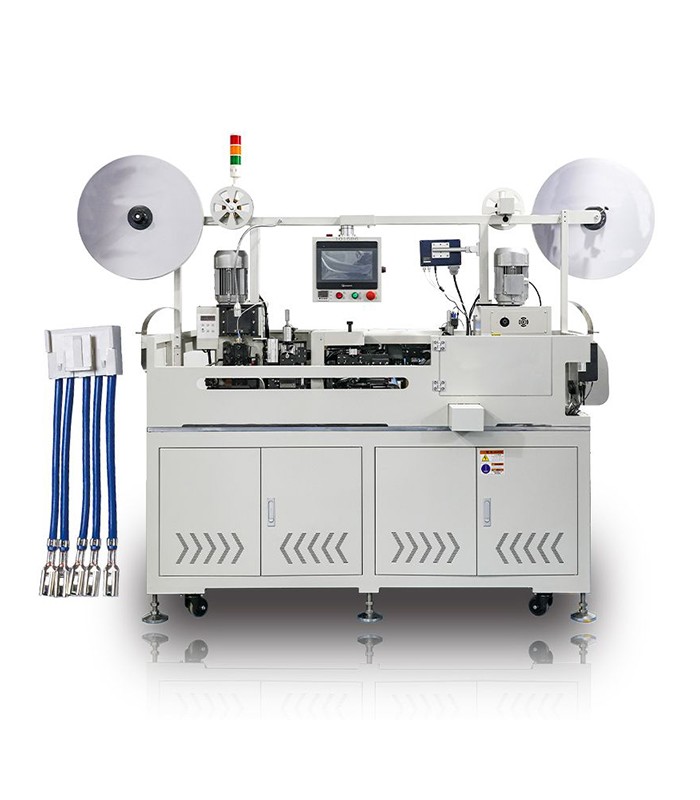

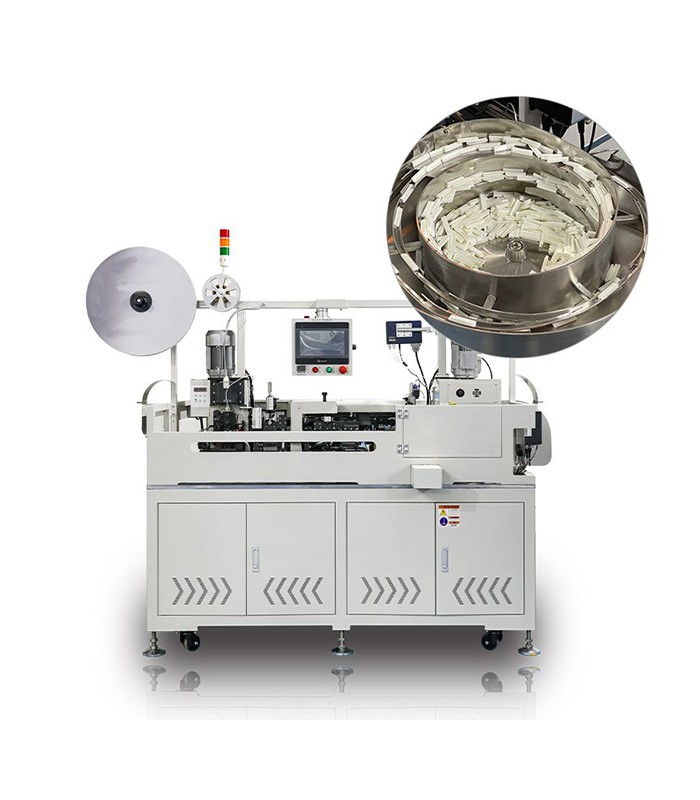

Automatic crimping machine, connector insertion on both sides
Errebi code: 66582
Producer code: RBEW8150
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
SOLD WITH PROTECTIVE COVER
Read moreShow lessProducer code: RBEW8150
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
SOLD WITH PROTECTIVE COVER
€80,461.00
(tax excl.)
€98,162.42
(tax incl.)
Condition
New
Reference:
RBEW8150
Brand:
Add to wishlist
Technical data
Model: RBEW8150
Wire section: 28-18 AWG
Cutting length: 45 - 1000 mm
Capacity: 300 - 380 pcs/hour (L=110 mm)
Crimping force: 2.0 T
Stroke: 30 mm or 40 mm strokes optional
Air pressure: 0.6-0.8 MPa
Rated current: 45 A
Power: 220 V/110 V/50/60 HZ
Dimensions: 2183x2350x1800 mm
Weight: 1100 kg
Read moreShow less
Model: RBEW8150
Wire section: 28-18 AWG
Cutting length: 45 - 1000 mm
Capacity: 300 - 380 pcs/hour (L=110 mm)
Crimping force: 2.0 T
Stroke: 30 mm or 40 mm strokes optional
Air pressure: 0.6-0.8 MPa
Rated current: 45 A
Power: 220 V/110 V/50/60 HZ
Dimensions: 2183x2350x1800 mm
Weight: 1100 kg
RBEW8150
Data sheet
- Product type
- Terminal crimping machine
- Voltage/Frequency
- AC: 110-220V, 50/60Hz
- Dimensions
- 2183x2350x1800 (L x W x H)
- Cable section AWG
- 28 AWG - 18 AWG
- Minimum order quantity
- 1
- Unit Type
- piece
- Crimping force
- 20 KN (2T)
- Length of Cut
- 45 - 1000 mm
- Viewing mode
- touch screen
- Air pressure
- 0.6 - 0.8 MPa
- Productivity
- 300 - 380 pz/h
- Press stroke
- 30/40 mm
