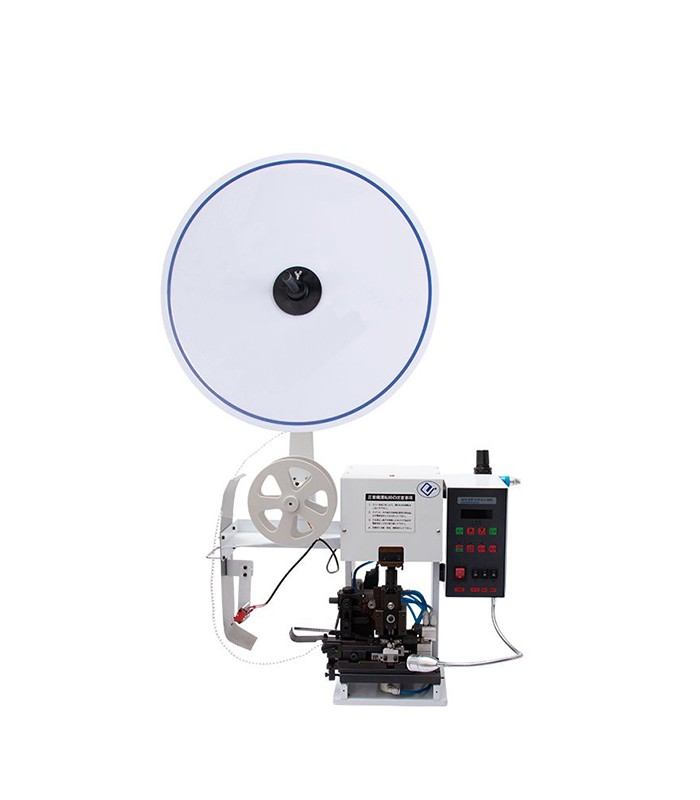

Semi-automatic machine for stripping and crimping terminals with side taping section 26-16 AWG

Characteristics:
1. Wire stripper and crimping machine all in one
2. High stability and ultra quiet
3. Designed with automatic skinning department, automatic forward and automatic return function.
4. The stripping part adopts pneumatic components, can quickly complete the stripping operation efficiently and stably.

Technical data:
Model: RBEW50A3
Cable section: 26-16AWG
Stripping length: 1-10mm
Stroke: 30mm
Crimping force: 3T
Motor power: 1100W
Machine power: 1500W
Air pressure: 0.3-0.4 mpa
Power: 220V/110V/50HZ/60HZ
Weight: 120Kg
Dimension: 500*450*1000 mm
