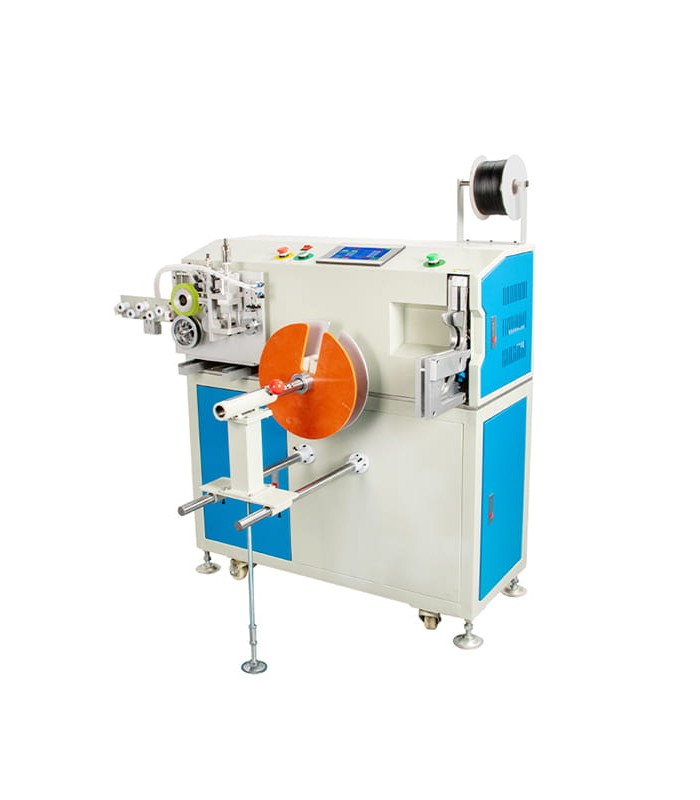

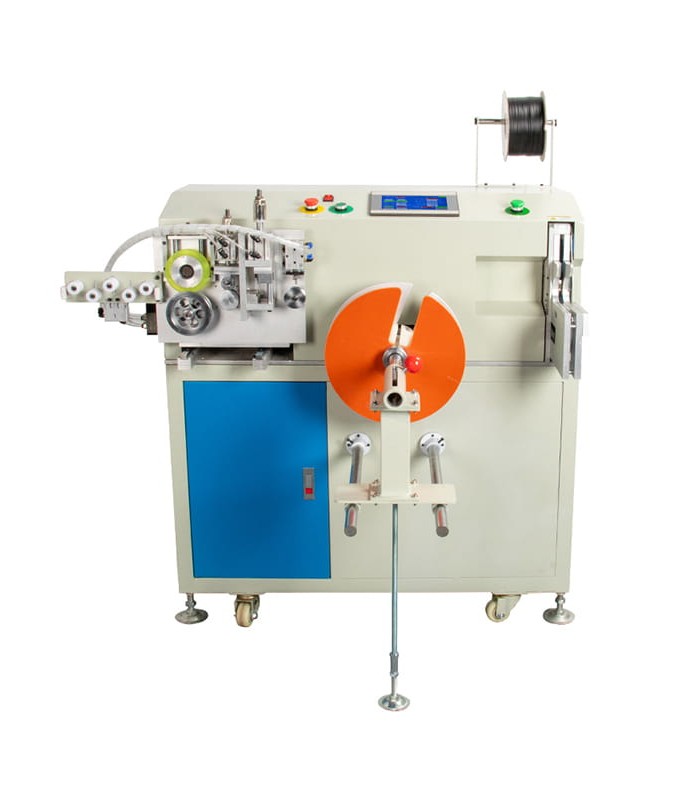

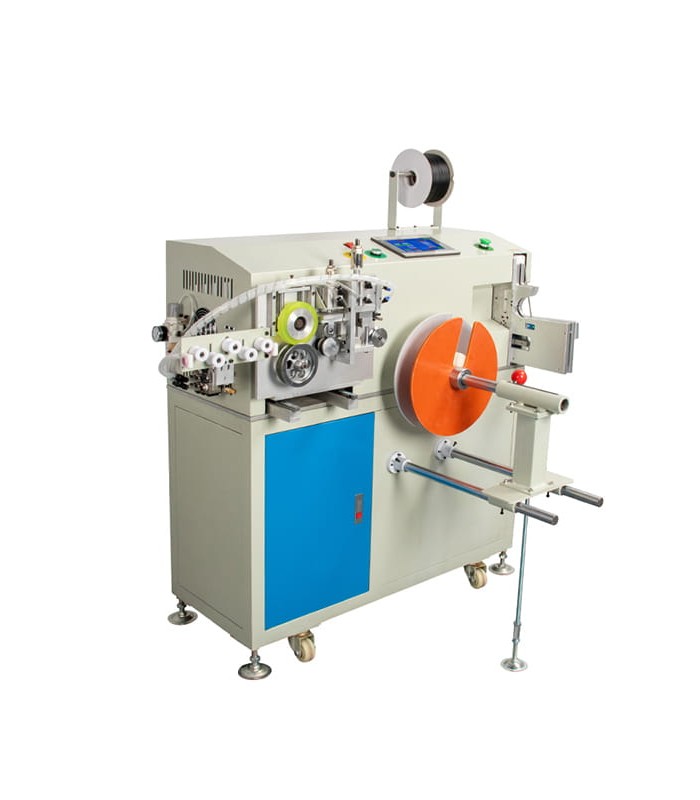

Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable
Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable
Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable
Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable
Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable
Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable

Machine for cutting to size, winding with and without spool and automatic tying of Ø1-10mm cable

Errebi code: 65778
Producer code: RBEW20S2A
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€13,556.00 (tax excl.)
€16,538.32 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW20S2A
Brand:
ErreBi Group
Add to wishlist
Description
Characteristics
1. This machine is specifically used in cable winding and cutting
2. The parameter can be changed freely according to the operator's needs
3. Foot pedal is available, which makes the operation much easier and faster
4. Touch screen.

Technical data
Model: RBEW20S2A
Maximum winding length: 80 meters
Tying function: applicable
Binding diameter: 18 - 45 mm
Wire diameter: 1 - 10 mm
Internal reel diameter: 50 - 200 mm
Coil external diameter: < 320 mm
Winding speed: 1 - 10 rpm
Tying speed: 0.7s
Power supply: 110, 220 V (50 - 60 Hz)
Power: 2500W
Dimension: 1100*450*800 mm
Weight: 230 kg
Read moreShow less
Product Details
RBEW20S2A

Data sheet

Product type
Automatic skeins
Wattage
2500W
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
1100x450x800 (L x W x H)
Minimum order quantity
1
Unit Type
piece
Coil diameter
50 - 320 mm
Outer diameter of cable
1 - 10 mm
Viewing mode
touch screen
Unwinding and winding speed
1 - 10 revolutions per second
Attachments
065778_001_DATASHEET.pdf
Download (724.92KB)
065778_002_CERTIFICATION.pdf
Download (3.13MB)
