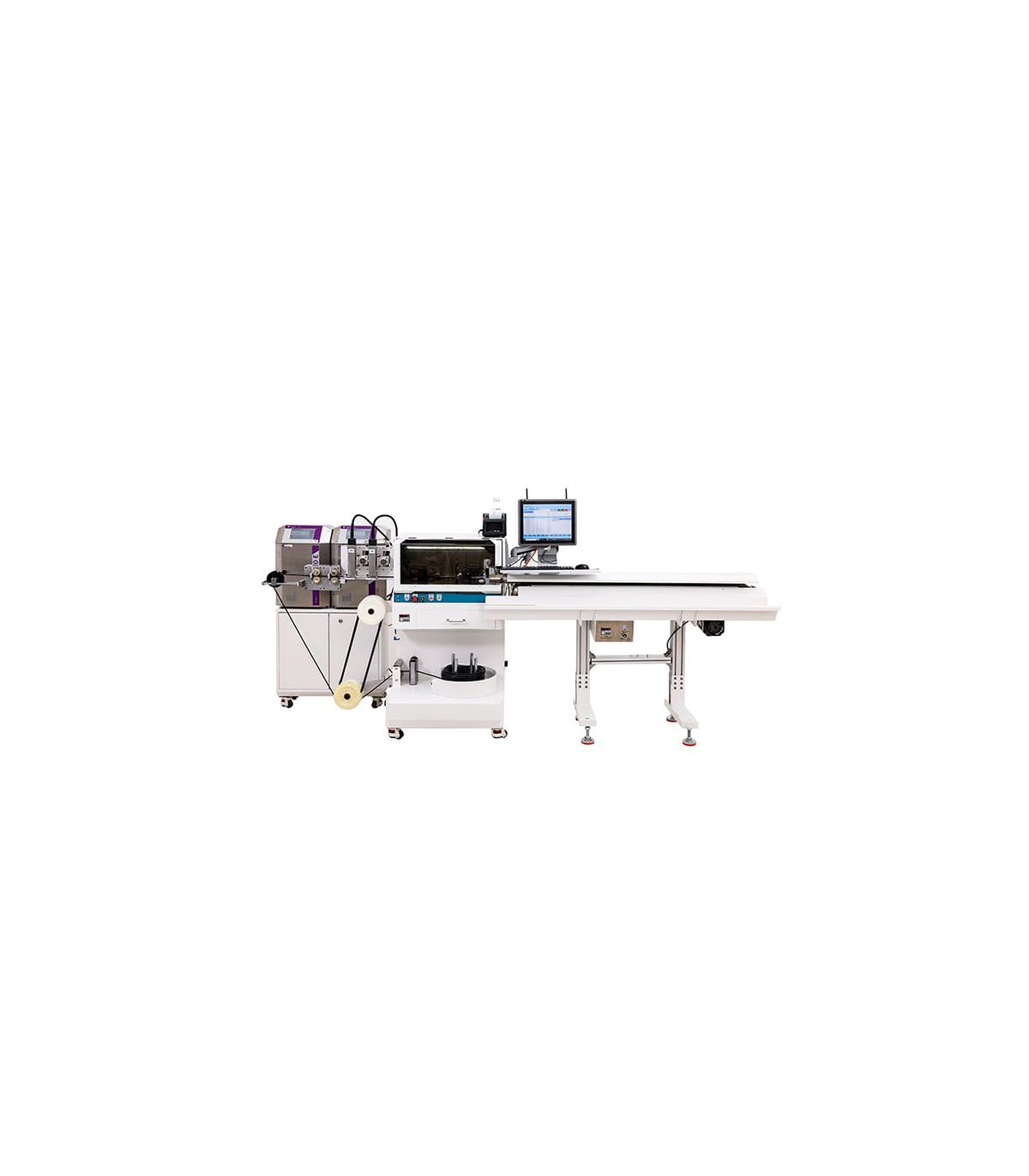

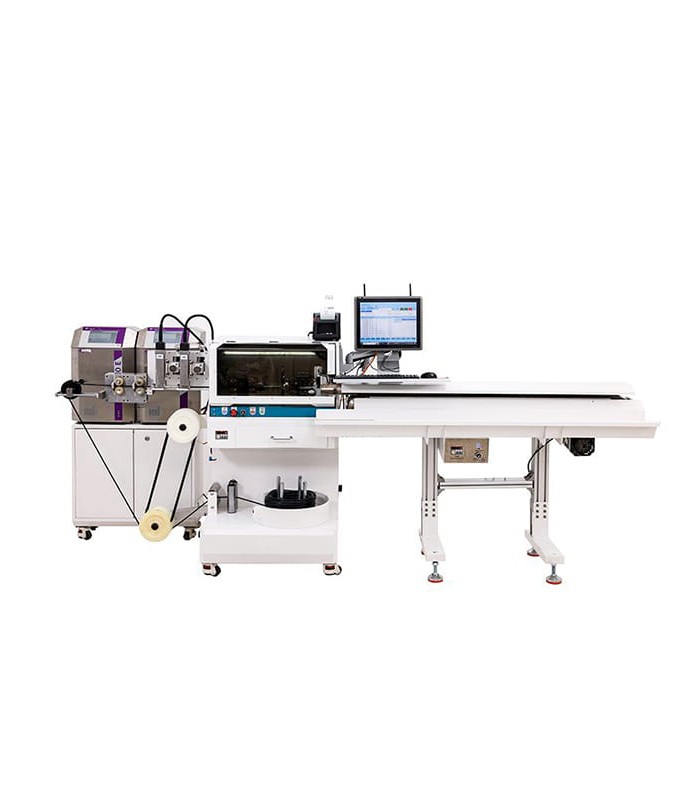

Automatic Single Core Multicore Cable Cutting and Stripping Machine with Marker and Intelligent Control System
Errebi code: 67983
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 70 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow lessDELIVERY TIMES FOR UNAVAILABLE ITEMS: 70 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
€49,674.55
(tax excl.)
€60,602.95
(tax incl.)
Condition
New
Reference:
RBEW3215
Brand:
Add to wishlist
Technical data
Model: RBEW3215
Cable section: 0.75 - 30 mmq
Cable: Single core cable, Multicore cable, Sheathed cable, PVC cable etc.
Wire Stripping: 2 - 10 cores
Cutting Length: 1 - 999,999.9 mm
Cutting Length Tolerance: 0.002 * L (L = Cutting Length)
Stripping Length (Side I)
Cable Jacket: Full Stripping: 10 - 800 mm
Inner Cable: Full Stripping: 1 - 200 mm
Stripping Length (Side II)
Cable Jacket: Full Stripping: 1 - 300 mm
Inner Cable: Full Stripping: 1 - 80 mm
Max. Guide Tube Diameter: 18 mm
Throughput: 2000 pcs/h - 900 pcs/h (Multi-core Cable)
Blade Material: Steel

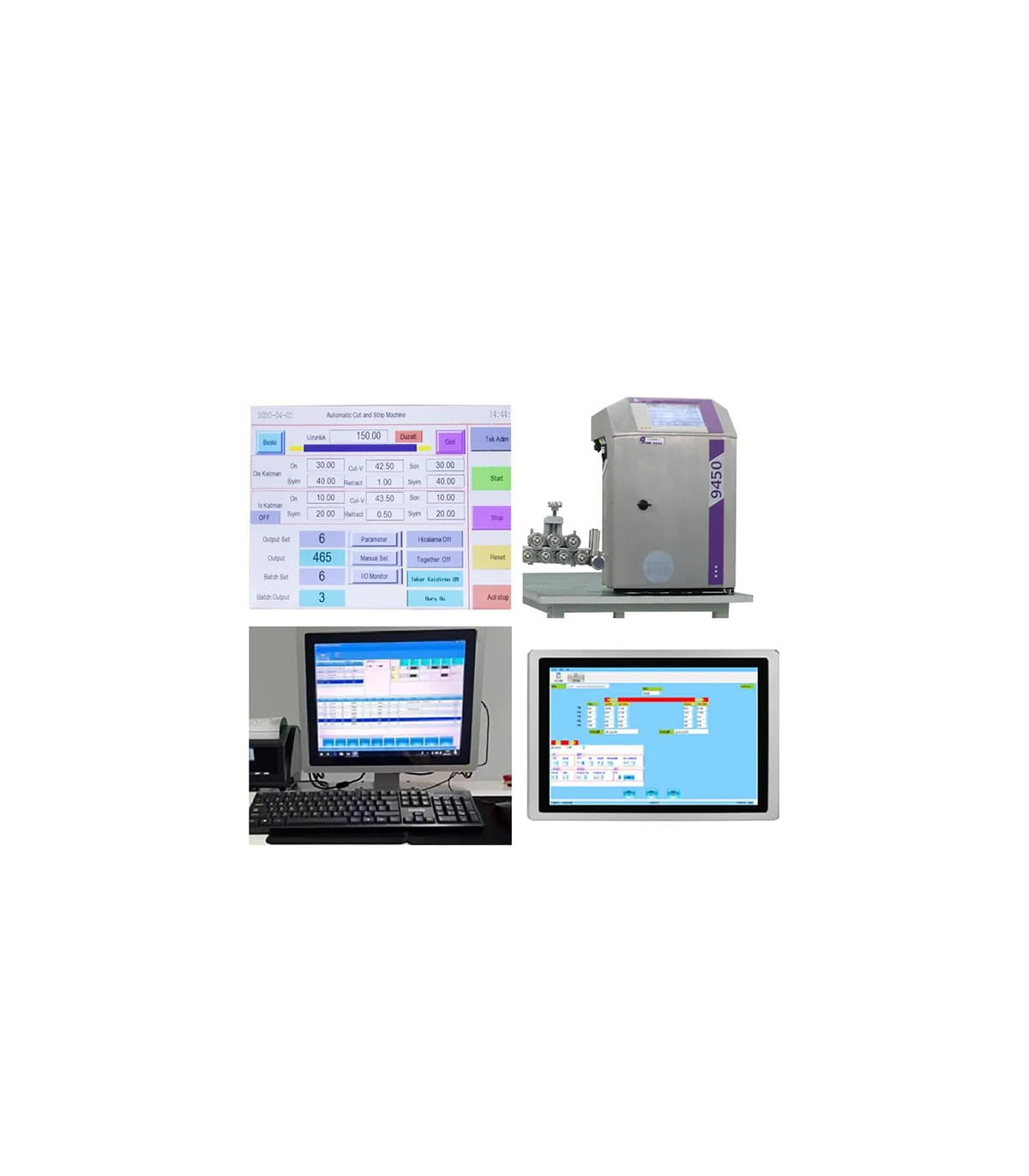

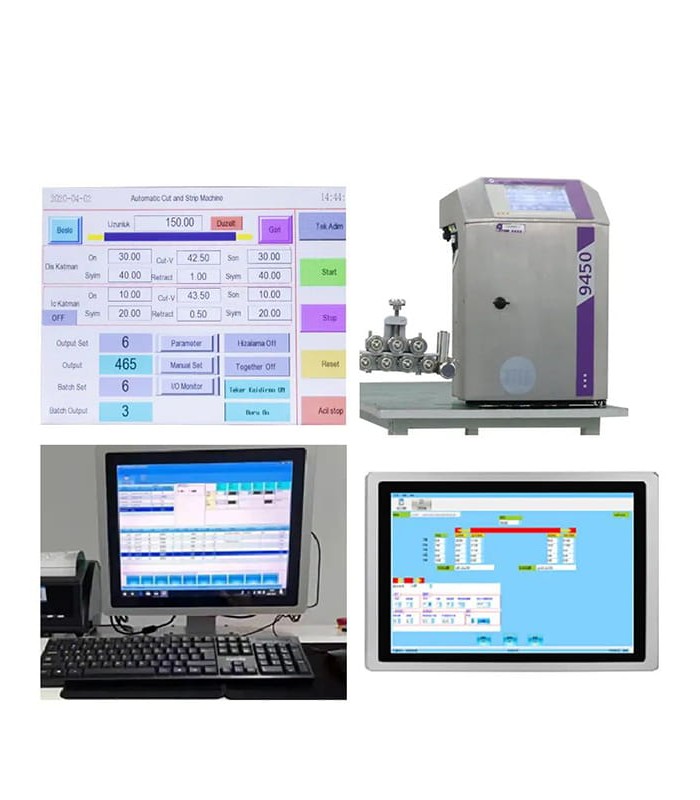

Display Mode: 7-inch Touch Screen
Drive Mode: Servo Motor Cutting with 16-Roller Guide System
Drive Mode: power supply: belt feeding with pressure stripping function
Power supply: 110, 220V (50 - 60Hz)
Power: 1.1kW
Air pressure: 0.5 - 0.7MPa
Total weight: 480Kg
Machine size: 850*700*1500mm
Marker size: 570*630*820mm
Software bench size: 570*630*820mm
Conveyor belt size: 2200*720*500mm

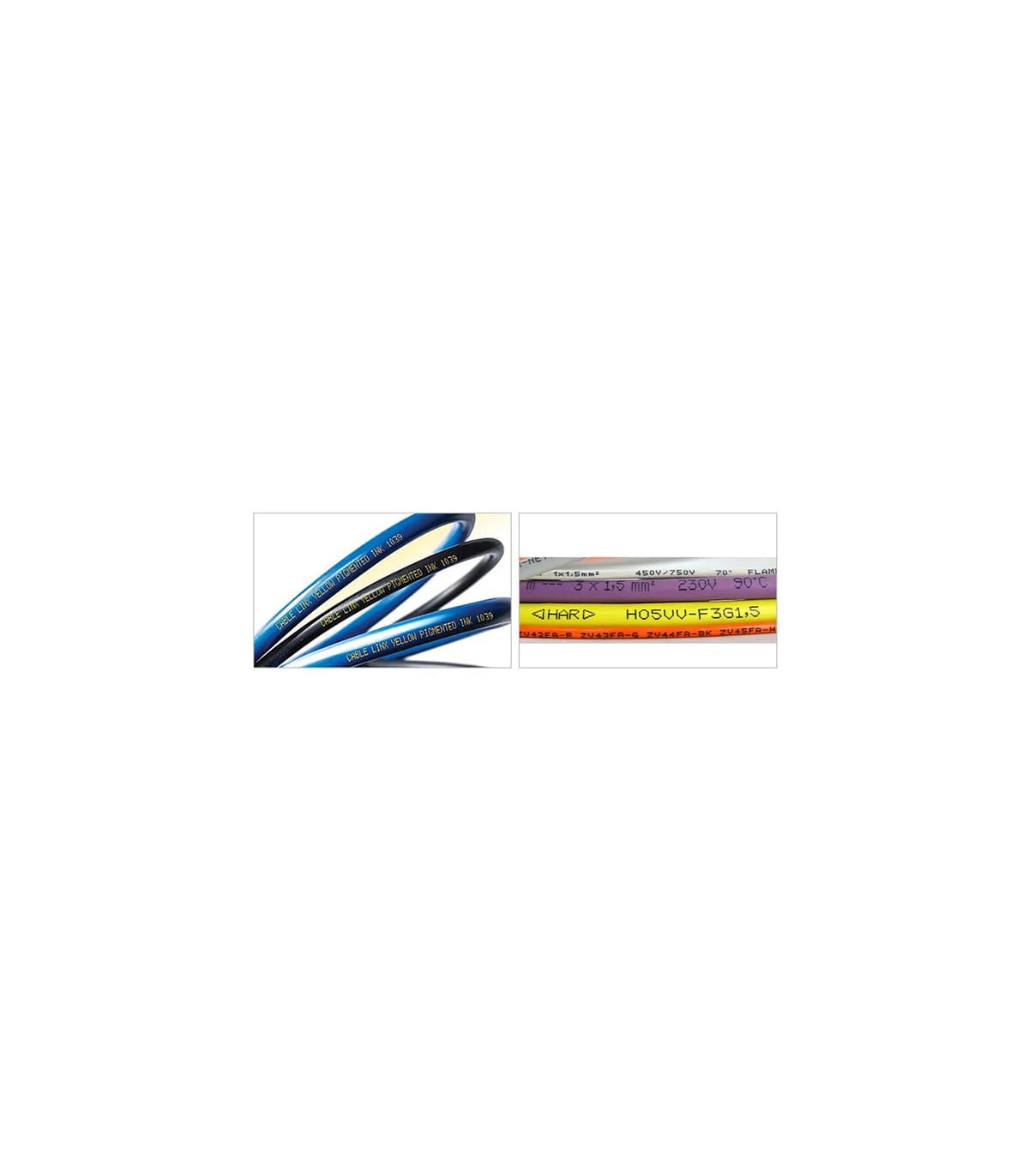

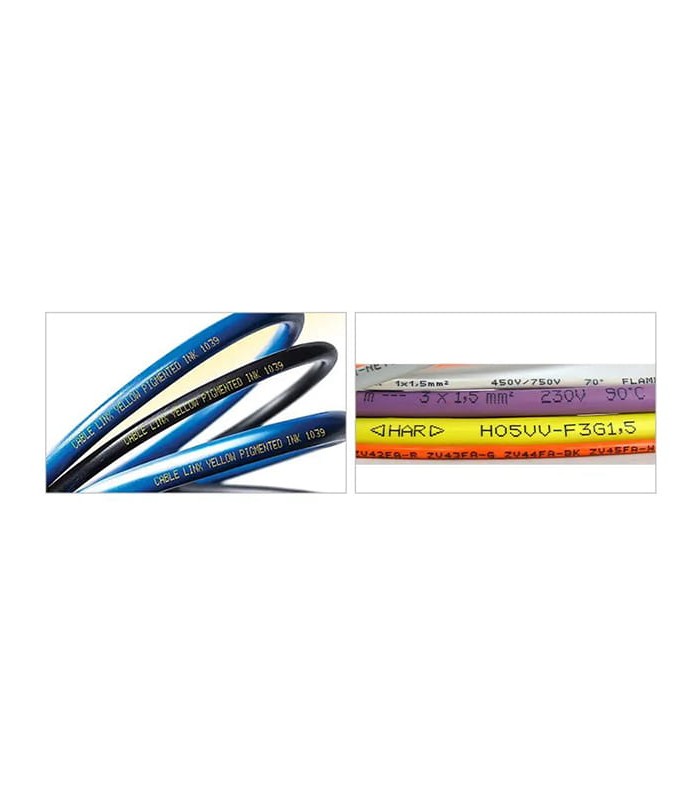

Printing color: black/white (other colors optional)
Read moreShow less
Model: RBEW3215
Cable section: 0.75 - 30 mmq
Cable: Single core cable, Multicore cable, Sheathed cable, PVC cable etc.
Wire Stripping: 2 - 10 cores
Cutting Length: 1 - 999,999.9 mm
Cutting Length Tolerance: 0.002 * L (L = Cutting Length)
Stripping Length (Side I)
Cable Jacket: Full Stripping: 10 - 800 mm
Inner Cable: Full Stripping: 1 - 200 mm
Stripping Length (Side II)
Cable Jacket: Full Stripping: 1 - 300 mm
Inner Cable: Full Stripping: 1 - 80 mm
Max. Guide Tube Diameter: 18 mm
Throughput: 2000 pcs/h - 900 pcs/h (Multi-core Cable)
Blade Material: Steel
Display Mode: 7-inch Touch Screen
Drive Mode: Servo Motor Cutting with 16-Roller Guide System
Drive Mode: power supply: belt feeding with pressure stripping function
Power supply: 110, 220V (50 - 60Hz)
Power: 1.1kW
Air pressure: 0.5 - 0.7MPa
Total weight: 480Kg
Machine size: 850*700*1500mm
Marker size: 570*630*820mm
Software bench size: 570*630*820mm
Conveyor belt size: 2200*720*500mm
Printing color: black/white (other colors optional)
RBEW3215
Data sheet
- Product type
- Cable cutting and stripping machine
- Wattage
- 1.1 kW
- Voltage/Frequency
- AC: 110-220V, 50/60Hz
- Dimensions
- 3620x720x1500 (L x W x H)
- Cable section mmq
- 0.75 mmq - 30.00 mmq
- Minimum order quantity
- 1
- Unit Type
- piece
- Maximum inner diameter of guide tube
- 18 mm
- Stripping length Side1
- 10 - 800 mm
- Stripping length Side2
- 1 - 300 mm
- Length of Cut
- 1 - 999999,99 mm
- Blade material
- tungsten steel
- Driving mode
- 16 rollers with servomotor
- Viewing mode
- 7" touch screen
- Air pressure
- 0.5 - 0.7 MPa
- Productivity
- 2000 pcs/h (900 pcs/h for multicore cable)
