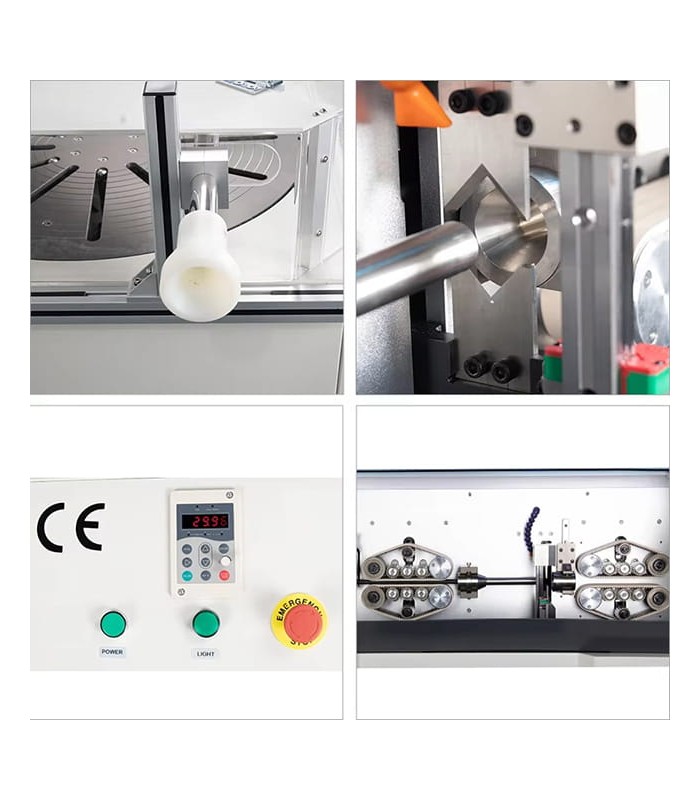

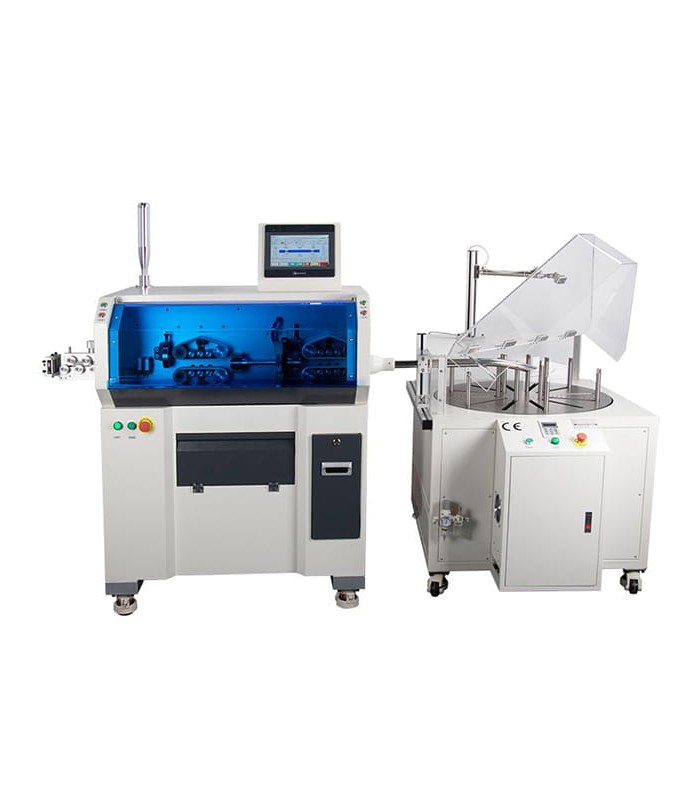

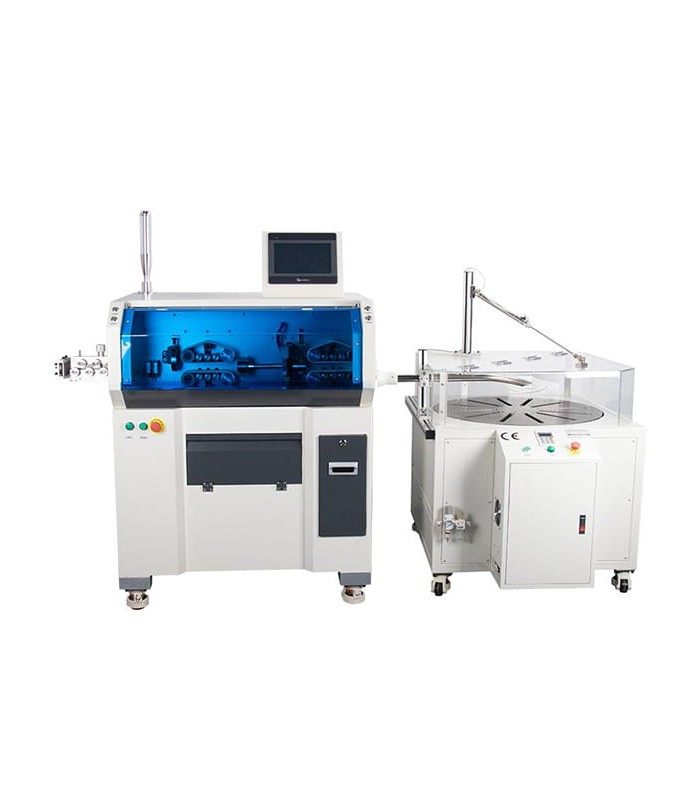

Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)
Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)

Automatic machine for cutting and stripping single-core and multi-core cables with winder (4 - 70 mmq)

Errebi code: 66899
Producer code: RBEW3105+C
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
Read moreShow less
€22,499.00 (tax excl.)
€27,448.78 (tax incl.)
'Available in 60 working days from the order.'
Condition
New
Reference:
RBEW3105+C
Brand:
ErreBi Group
Add to wishlist
Description
Technical data

Model: RBEW3105+C
Cable section: 4 - 70 mmq
Max. cable diameter: 18 mm
Stripping length (side 1): 0.1 - 200 mm
Stripping length (side 2): 0.1 - 100 mm
Cutting length: 0.1 - 100000 mm
Transmission: Conveyor belt, 8 rollers
Blade material: steel
Productivity: 800 pieces/hour (L=500mm)
Dimensions: 945*615*1270 mm
Power: AC220V/110V 50/60HZ
Voltage: 0.75 kW
Air pressure: 0.4 - 0.6 Mpa
Winding width: <= 600 mm
Winding bars: move from top to bottom, can be positioned as desired
Winding bar adjustment: 200 - 650 mm
Winding height: < 140 mm
Read moreShow less
Product Details
RBEW3105+C

Data sheet

Product type
Cable cutting and stripping machine
Wattage
0.75 kW
Voltage/Frequency
AC: 110-220V, 50/60Hz
Dimensions
945x615x1270 (L x W x H)
Cable section mmq
4.00 mmq - 70 mmq
Minimum order quantity
1
Unit Type
piece
Maximum inner diameter of guide tube
18 mm
Stripping length Side1
0.1 - 200 mm
Stripping length Side2
0.1 - 100 mm
Length of Cut
0,1 - 100000 mm
Blade material
tungsten steel
Viewing mode
touch screen
Air pressure
0.4 - 0.6 MPa
Productivity
800 pz/h
Attachments
066899_001_DATASHEET.pdf
Download (733.6KB)
066899_002_CERTIFICATION.pdf
Download (3.13MB)
