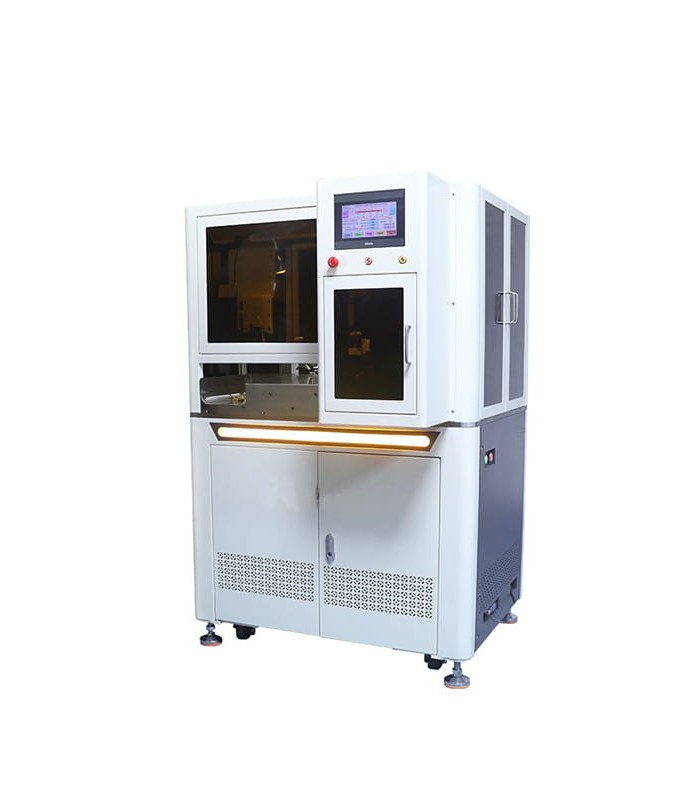

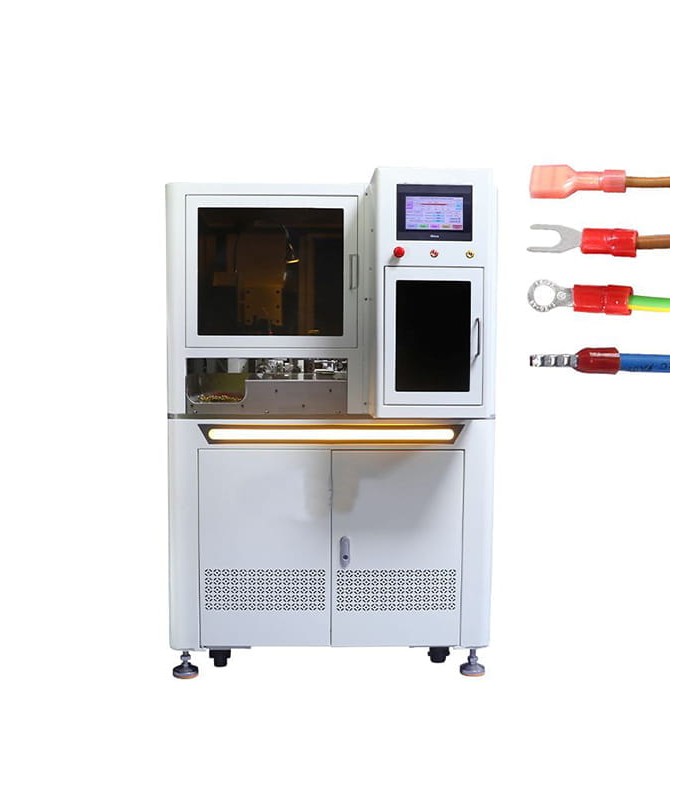

Cutting, stripping and crimping machine for insulated terminals, with protective cover
Errebi code: 66116
Producer code: RBEW8160
Producer: ErreBi Group
DELIVERY TIMES FOR UNAVAILABLE ITEMS: 60 DAYS.
FOR URGENT DELIVERIES WITHIN 3 WEEKS CONTACT US PRIVATELY
NOTES: AT THE TIME OF PURCHASE, SPECIFY THE TYPE OF TERMINAL YOU WILL APPLY ON THE MINI APPLICATOR
€27,373.00
(tax excl.)
€33,395.06
(tax incl.)
Condition
New
Reference:
RBEW8160
Add to wishlist
Technical data
Model: RBEW8160
Applicable conductor section: AWG 26-14
Cut precision: +/- (0.5+0.002*L) mm, L=cut length
Stripping length: 0 - 15 mm
Cutting length: 40 - 9999mm
Capacity: 1000 - 1300 pcs/hour
Stroke: 30 mm
Crimping Force: 2.0T (20KN)
Air pressure: 0.3 - 0.4 mpa
Power: 220V/110V/50HZ/60HZ
Display language: Chinese/English
Weight: 358Kg
Size: 1150*750*1600 mm
Power cord plug: European, USA and Chinese plug
RBEW8160
Data sheet
- Product type
- Cable cutting and stripping machine
- Voltage/Frequency
- AC: 110-220V, 50/60Hz
- Dimensions
- 1150X750X1600 (L x W x H)
- Cable section AWG
- 26 - 14 AWG
- Minimum order quantity
- 1
- Unit Type
- piece
- Crimping force
- 20 KN (2T)
- Stripping length Side1
- 0 - 15 mm
- Length of Cut
- 40 - 9999 mm
- Viewing mode
- touch screen
- Air pressure
- 0.3 - 0.4 MPa
- Productivity
- 1000 - 1300 pz/h
- Press stroke
- 30mm
