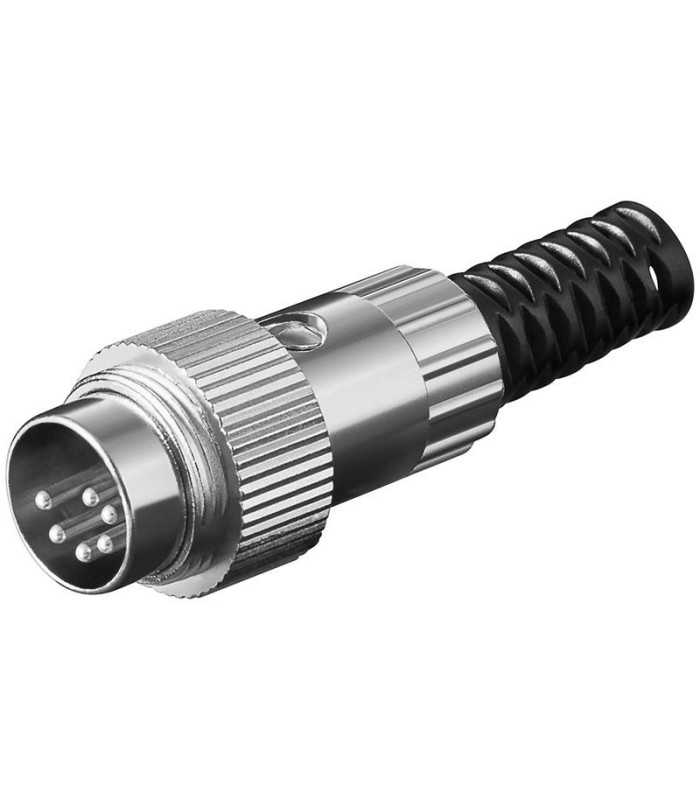

DIN Connector male 6 poles metallic
Errebi code: 17874
Producer code: 09-0322-00-06
Producer: Binder
Read moreShow lessProducer code: 09-0322-00-06
Producer: Binder
€6.95
(tax excl.)
€8.48
(tax incl.)
Condition
New
Reference:
RBCTDM6VVM
Brand:
Add to wishlist
Connector Type: Circular Industrial
Series: 680
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Contacts: 6
Contact Termination Type: Solder
Contact Material: Bronze
Contact Plating: Silver
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 6mm
Cable Diameter Min: 3mm
Contact Termination: Solder
Current rating: 5A
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Wire Area Size Max: 0.75mm²
Working Voltage: 250V
Read moreShow less
Series: 680
Connector Body Material: Nylon (Polyamide)
Gender: Receptacle
Contact Gender: Socket
Connector Mounting: Cable
No. of Contacts: 6
Contact Termination Type: Solder
Contact Material: Bronze
Contact Plating: Silver
SVHC: No SVHC (16-Jun-2014)
Cable Diameter Max: 6mm
Cable Diameter Min: 3mm
Contact Termination: Solder
Current rating: 5A
Operating Temperature Max: 85°C
Operating Temperature Min: -40°C
Wire Area Size Max: 0.75mm²
Working Voltage: 250V
RBCTDM6VVM
Data sheet
- Product type
- Connector
- Serie
- DIN
- Material
- PA (Polyamide, Nylon)
- Color
- Metallic
- Operating temperature
- -40°C a +85°C
- Voltage
- 250V
- Contact material
- Bronze
- Mounting
- On cable
- Kind
- Male
- Number of poles
- 6
- Orientation
- 180°
- Contact plating
- Silver
- Minimum order quantity
- 1
- Unit Type
- piece
Specific References
- EAN13
- 8716065143232
