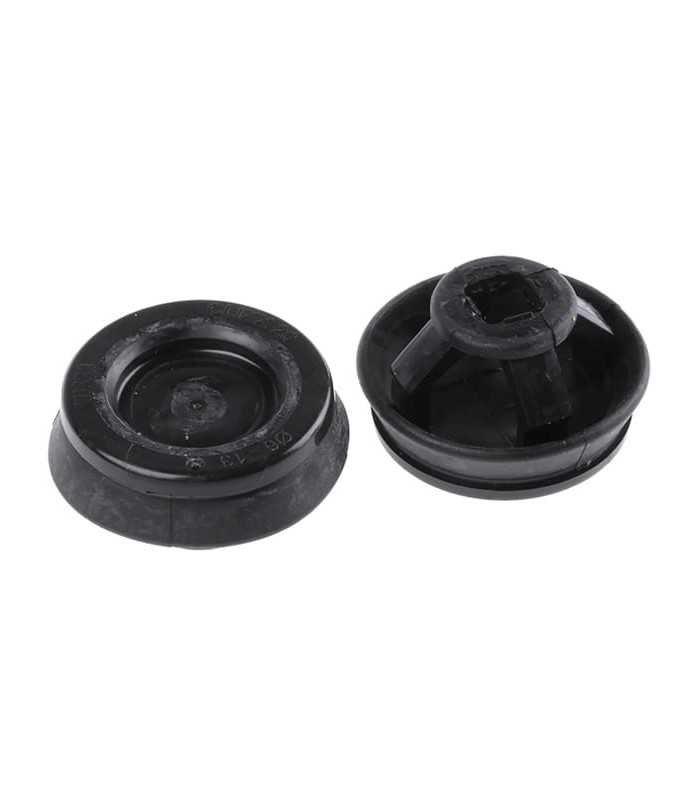

Diaphragm cable grommet in PP CLIXX external d.20
Errebi code: 59128
Producer code: CLIXX M20/B
Producer: WISKA
Read moreShow lessProducer code: CLIXX M20/B
Producer: WISKA
€1.09
(tax excl.)
€1.33
(tax incl.)
Condition
New
Reference:
RBPCPPCE20M
Brand:
Add to wishlist
Material: Polypropylene
Material: TPE membrane
Minimum range temp: -40 ° C
Temp.range max: 65 ° C
Glow wire test: 750 ° C
Protection class: IP66 / IP67
Ø Connection thread: D 20
Screw thread length: L 7.3 mm
Ø cable min diameter: 6 mm
Ø cable max diameter: 13 mm
Collar diameter (E): 28 mm - 33 mm
Total length: TL 15 mm
Ø Drilling: 20.5 mm - 20.7 mm
Wall thickness S: 0.8mm - 3.5mm
Product color: RAL 9005
Read moreShow less
Material: TPE membrane
Minimum range temp: -40 ° C
Temp.range max: 65 ° C
Glow wire test: 750 ° C
Protection class: IP66 / IP67
Ø Connection thread: D 20
Screw thread length: L 7.3 mm
Ø cable min diameter: 6 mm
Ø cable max diameter: 13 mm
Collar diameter (E): 28 mm - 33 mm
Total length: TL 15 mm
Ø Drilling: 20.5 mm - 20.7 mm
Wall thickness S: 0.8mm - 3.5mm
Product color: RAL 9005
