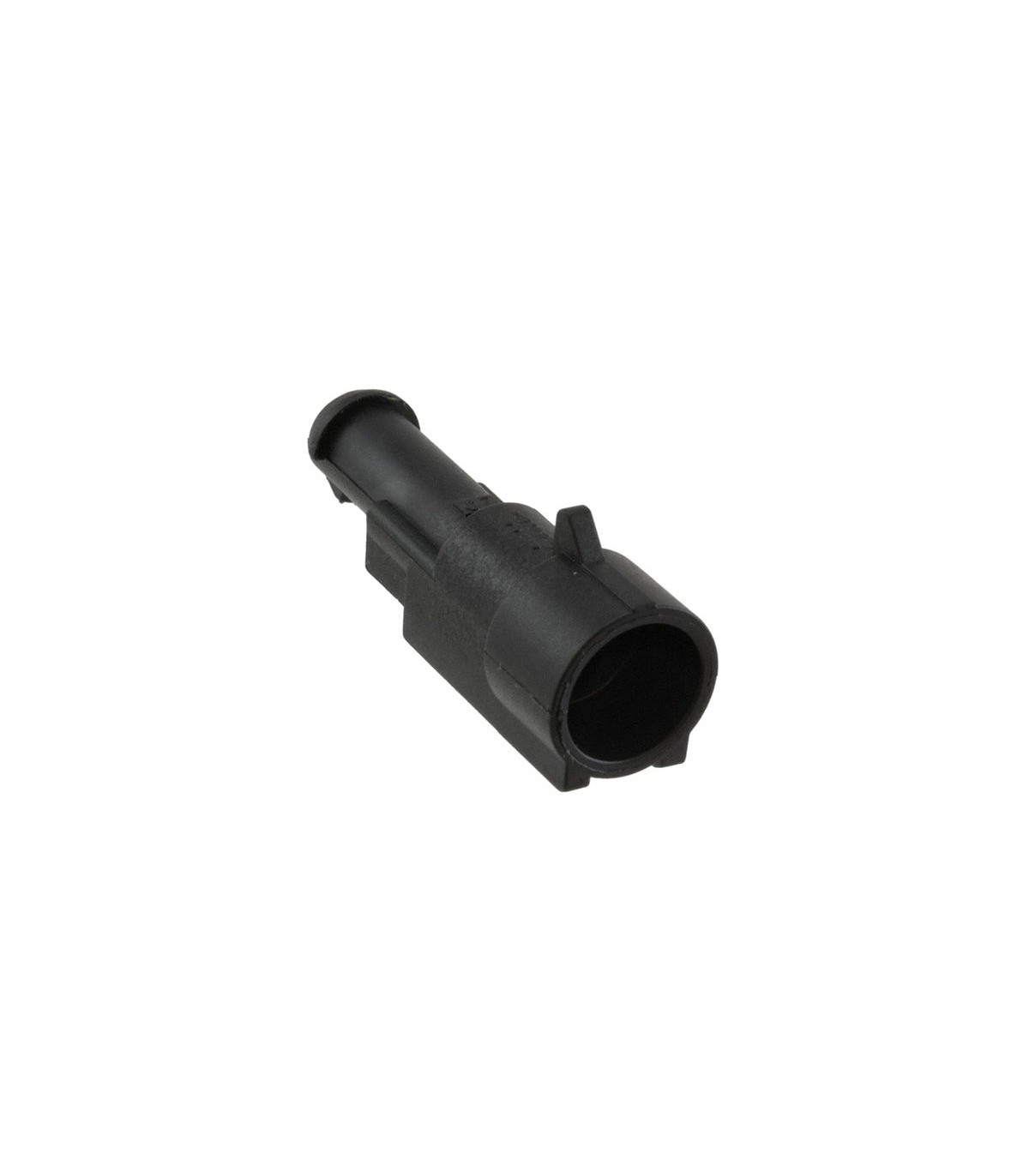

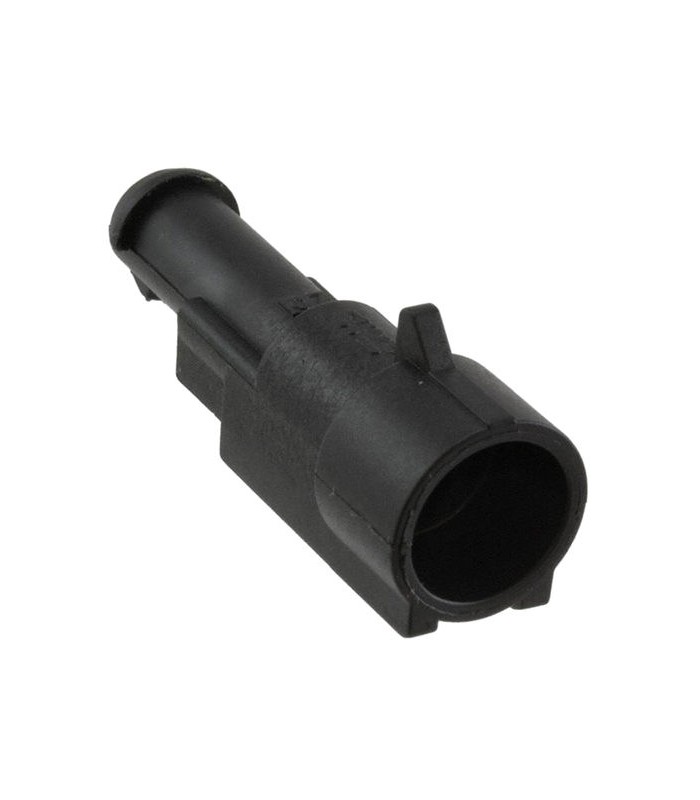

Connettore Superseal femmina 1 vie

Product Type Features
Connector Style: Housing for male terminals
Sealed: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector System: Wire-to-Board/Device, Wire-to-Wire
Strain Relief: No

Configuration Features
Number of Positions: 1
Number of Rows: 1

Electrical Characteristics
Nominal Voltage Architecture (V): 12, 24
Operating Voltage (VDC): 24

Body Features
Cable Exit Angle: 180°
Body Material: PA GF
Color: Black

Contact Features
Mating Tab Width: 1.2 mm [ .047 in ]

Mechanical Attachment
Terminal Position Assurance: Yes
Mounting Feature: No
Polarized: Yes

Dimensions
Width: 9.3 mm [ .366 in ]
Height: 42 mm [ 1.654 in ]
Length: 13.6 mm [ .535 in ]

Usage Conditions
Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105, 110, 120, 125
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221, 230, 248, 257
Operating Temperature Range: -40 – 125 °C [ -40 – 257 °F ]

Industry Standards
Degree of Protection: IP67, Other
UL Flammability Rating: None

Other
Connector Position Assurance Capable: No
Serviceable: Yes
