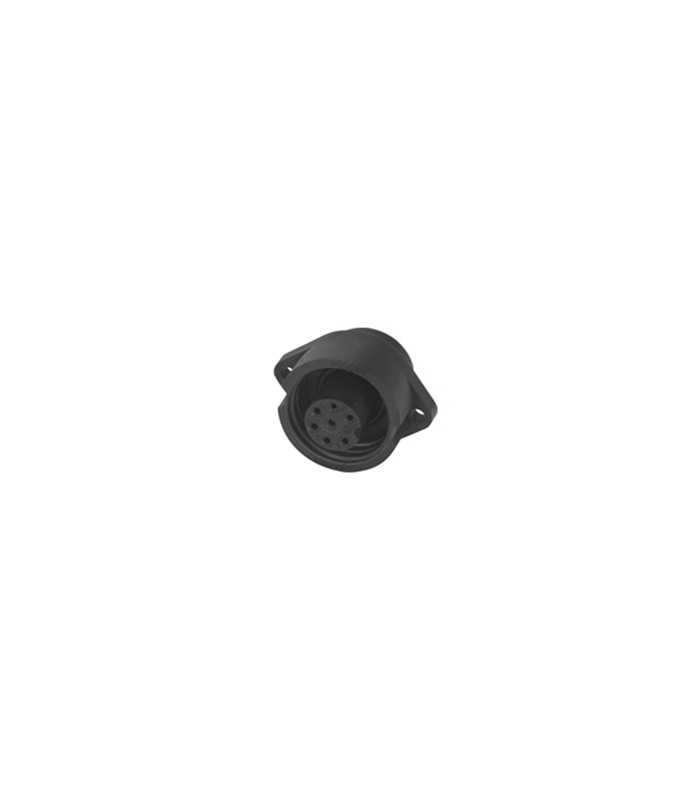

Connettore WA22 Femmina 7 Vie a saldare da pannello
Codice ErreBi: 17878
Codice produttore: WA22K7Z1
Produttore: Weipu
Read moreShow lessCodice produttore: WA22K7Z1
Produttore: Weipu
8,16 €
(Tasse escluse)
9,96 €
(Tasse incl.)
Condizione
Nuovo
Reference:
RBCTWA22PF7VP
Brand:
Metti in lista desideri
Number of contact: 6+PE
Termination: Solder
Wire size: Max0.75mm²/AWG18
Rated voltage(V): 250V
Rated current(A): 10A
Contact diameter: 1.5×7
Shell material: Nylon66,fire resistance:V-0
Contact material: Brass with gold plating
Cable outlet diameter: 6,8,10mm
IP rating: IP67
Mating cycle: 500
Temperture range: -25~+85?
Insulation resistance: MO 2000
Test voltage(AC.V)1 min: 2000V
Contact resistance MO: 2.5
Read moreShow less
Termination: Solder
Wire size: Max0.75mm²/AWG18
Rated voltage(V): 250V
Rated current(A): 10A
Contact diameter: 1.5×7
Shell material: Nylon66,fire resistance:V-0
Contact material: Brass with gold plating
Cable outlet diameter: 6,8,10mm
IP rating: IP67
Mating cycle: 500
Temperture range: -25~+85?
Insulation resistance: MO 2000
Test voltage(AC.V)1 min: 2000V
Contact resistance MO: 2.5
