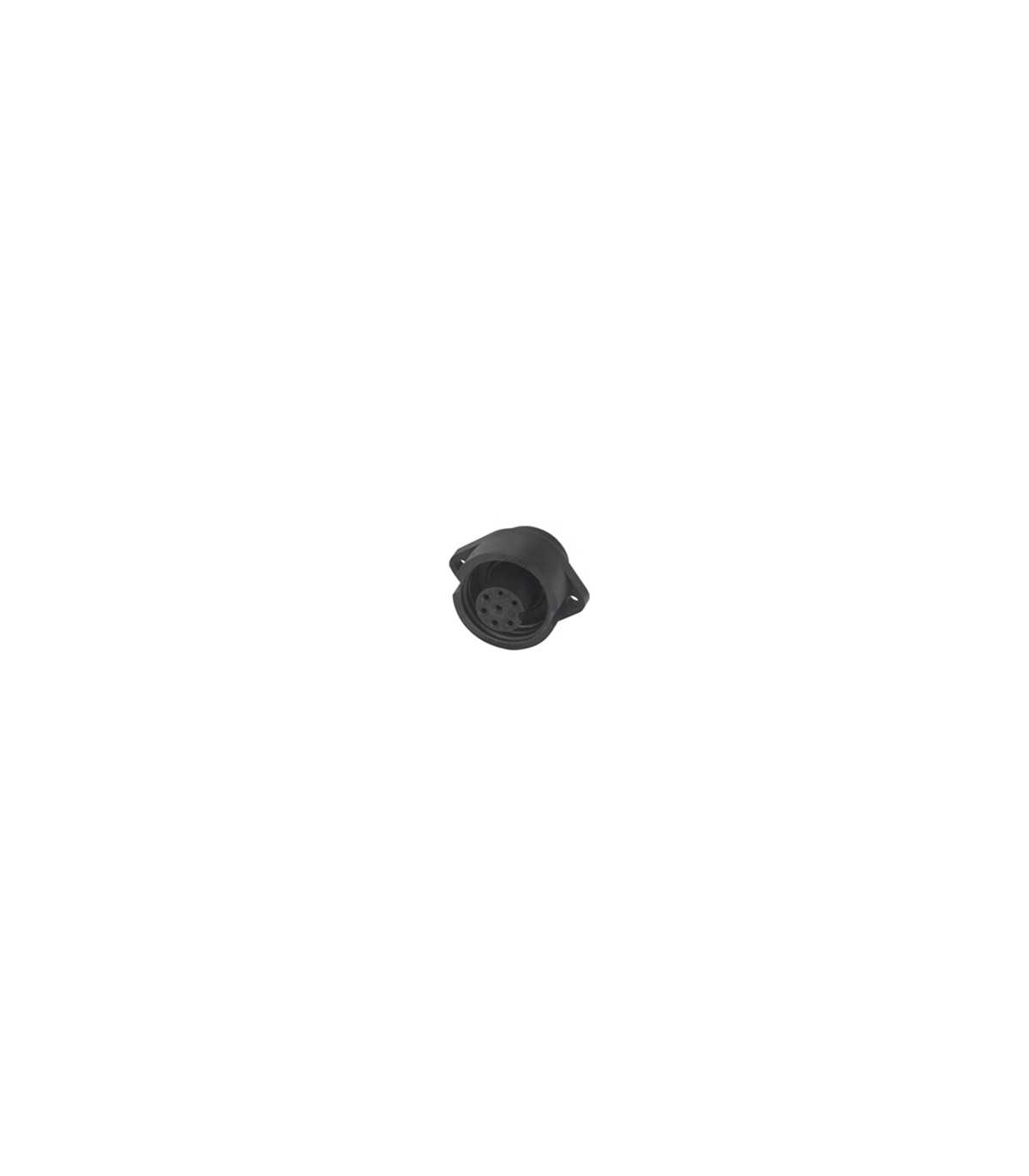

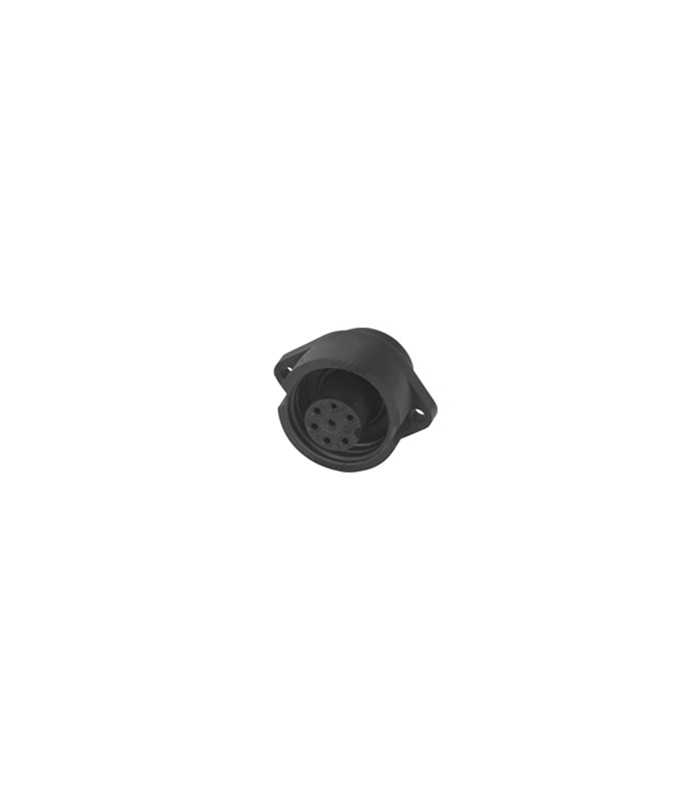

Conector WA22 Femenino 7 vías Soldar de panel
Código ErreBi: 17878
Código productor: WA22K7Z1
Productor: Weipu
Lee masShow lessCódigo productor: WA22K7Z1
Productor: Weipu
10,75 €
(tax excl.)
13,12 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBCTWA22PF7VP
Marca:
A lista de deseos
Number of contact: 6+PE
Termination: Solder
Wire size: Max0.75mm²/AWG18
Rated voltage(V): 250V
Rated current(A): 10A
Contact diameter: 1.5×7
Shell material: Nylon66,fire resistance:V-0
Contact material: Brass with gold plating
Cable outlet diameter: 6,8,10mm
IP rating: IP67
Mating cycle: 500
Temperture range: -25~+85?
Insulation resistance: MO 2000
Test voltage(AC.V)1 min: 2000V
Contact resistance MO: 2.5
Lee masShow less
Termination: Solder
Wire size: Max0.75mm²/AWG18
Rated voltage(V): 250V
Rated current(A): 10A
Contact diameter: 1.5×7
Shell material: Nylon66,fire resistance:V-0
Contact material: Brass with gold plating
Cable outlet diameter: 6,8,10mm
IP rating: IP67
Mating cycle: 500
Temperture range: -25~+85?
Insulation resistance: MO 2000
Test voltage(AC.V)1 min: 2000V
Contact resistance MO: 2.5
