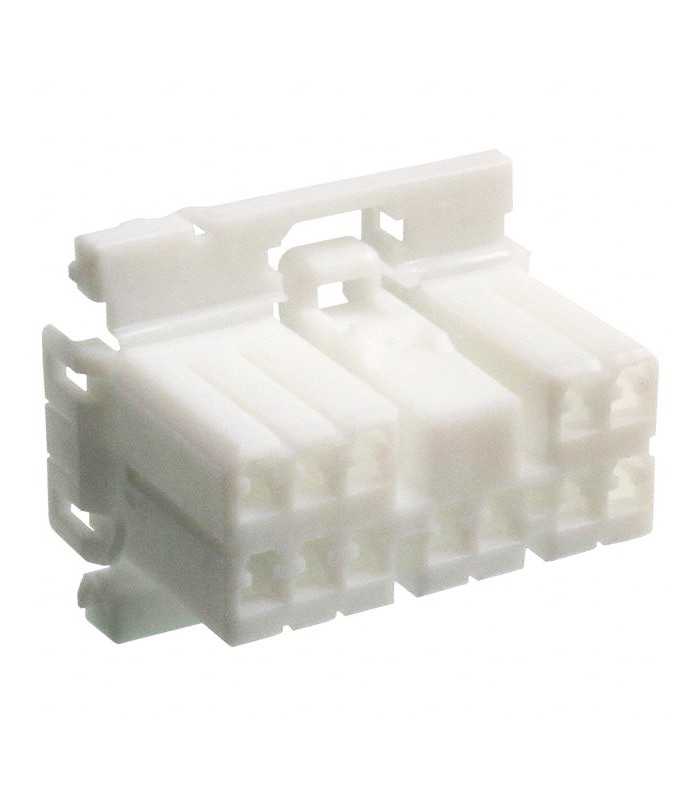

Connettore Multilock 070 Maschio 12 Vie

Codice ErreBi: 20927
Codice produttore: 173851-1
Produttore: TE/Connectivity
1,21 € (Tasse escluse)
1,48 €

Sconti per quantità

Quantità Prezzo Salva
11 1,33 € Fino a 1,60 €
26 1,18 € Fino a 7,66 €
51 1,11 € Fino a 18,82 €
101 0,96 € Fino a 52,33 €
251 0,81 € Fino a 166,55 €
501 0,74 € Fino a 369,79 €
1001 0,66 € Fino a 813,46 €
Disponibile 572 Articoli
Condizione
Nuovo prodotto
Reference:
RBCTML07012VPF
Aggiungi alla lista desideri
Descrizione
Product Type Features
Connector Style: Housing for female terminals
Sealed: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector System: Wire-to-Wire
Row-to-Row Spacing (mm): 3, 7.7
Row-to-Row Spacing (in): .118, .303
Strain Relief: No

Configuration Features
Number of Positions: 12
Number of Rows: 2

Electrical Characteristics
Nominal Voltage Architecture (V): 12
Operating Voltage (VDC): 12

Body Features
Cable Exit Angle: 180°
Body Material: PBT
Color: Natural

Contact Features
Mating Tab Width: 1.8 mm [ .07 in ]

Mechanical Attachment
Terminal Position Assurance: Yes
Mounting Feature: No
Polarized: Yes

Housing Features
Pitch (mm): 3.5, 5.5
Pitch (in): .138, .217

Dimensions
Width: 31.8 mm [ 1.252in ]
Height: 26.05 mm [ 1.026 in ]
Length: 21.6 mm [ .85 in ]

Usage Conditions
Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221
Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Industry Standards
Degree of Protection: Other
UL Flammability Rating: UL 94-HB
Dettagli del prodotto
