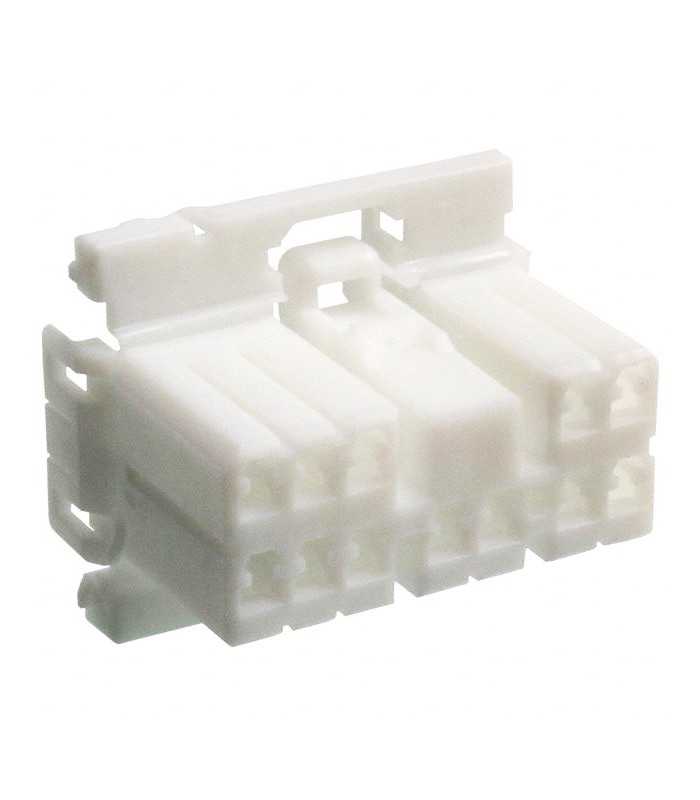

Steckverbinder Multilock 070 Männlich 12 Wege

Product Type Features
Connector Style: Housing for female terminals
Sealed: No
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector System: Wire-to-Wire
Row-to-Row Spacing (mm): 3, 7.7
Row-to-Row Spacing (in): .118, .303
Strain Relief: No

Configuration Features
Number of Positions: 12
Number of Rows: 2

Electrical Characteristics
Nominal Voltage Architecture (V): 12
Operating Voltage (VDC): 12

Body Features
Cable Exit Angle: 180°
Body Material: PBT
Color: Natural

Contact Features
Mating Tab Width: 1.8 mm [ .07 in ]

Mechanical Attachment
Terminal Position Assurance: Yes
Mounting Feature: No
Polarized: Yes

Housing Features
Pitch (mm): 3.5, 5.5
Pitch (in): .138, .217

Dimensions
Width: 31.8 mm [ 1.252in ]
Height: 26.05 mm [ 1.026 in ]
Length: 21.6 mm [ .85 in ]

Usage Conditions
Operating Temperature (Max) (°C): 70, 75, 80, 85, 90, 100, 105
Operating Temperature (Max) (°F): 158, 167, 176, 185, 194, 212, 221
Operating Temperature Range: -30 – 105 °C [ -22 – 221 °F ]

Industry Standards
Degree of Protection: Other
UL Flammability Rating: UL 94-HB
