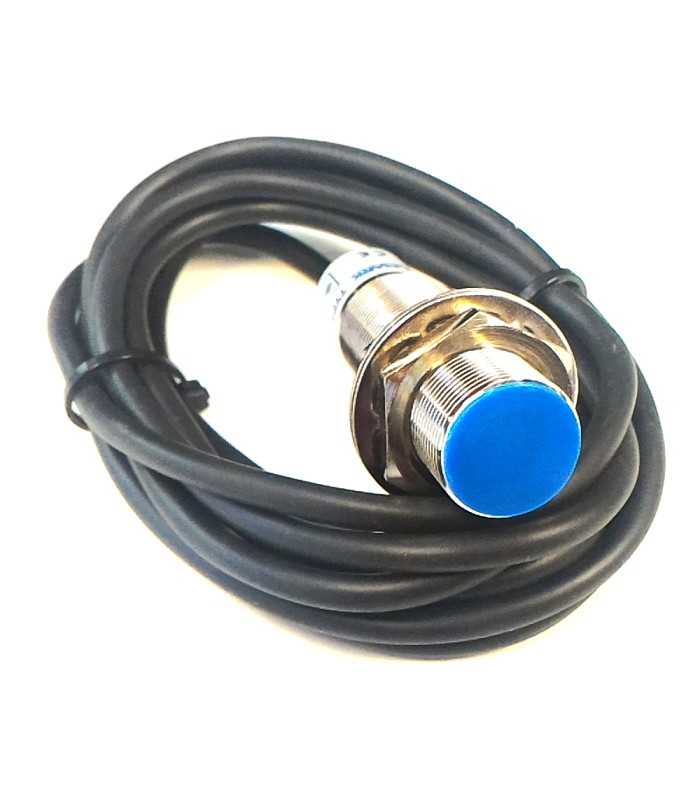

Sensore capacitivo 15-30VDC 300 mA EL-XM18-305PMI

Capacitive sensors are used in machine systems and equipment for no-contact motion surveillance. They consist of two coaxial electrodes, a condenser and RC generator. This type of sensors reacts to both metal and non-metal objects, as the gearing distance for non-metal objects depends on their dielectric constants. They allow gearing distance adjustment for non-magnetic conductive materials. They are developed on the base of PNP and NPN transition. They have small dimensions and feature a metal cylindrical shell resistant to vibrations and a plastic lid which is oil and water resistant.

- Insulation resistance: = 50 MW
- Activation distance: 8 mm
- Output load: 300 mA
- Precision of repetition: 0.01
- Ambient temperature: -25 °C to +70 °C
- Activation speed: 5 mm/s
- Rated voltage: 15~30VDC
- IP code: IP 54
