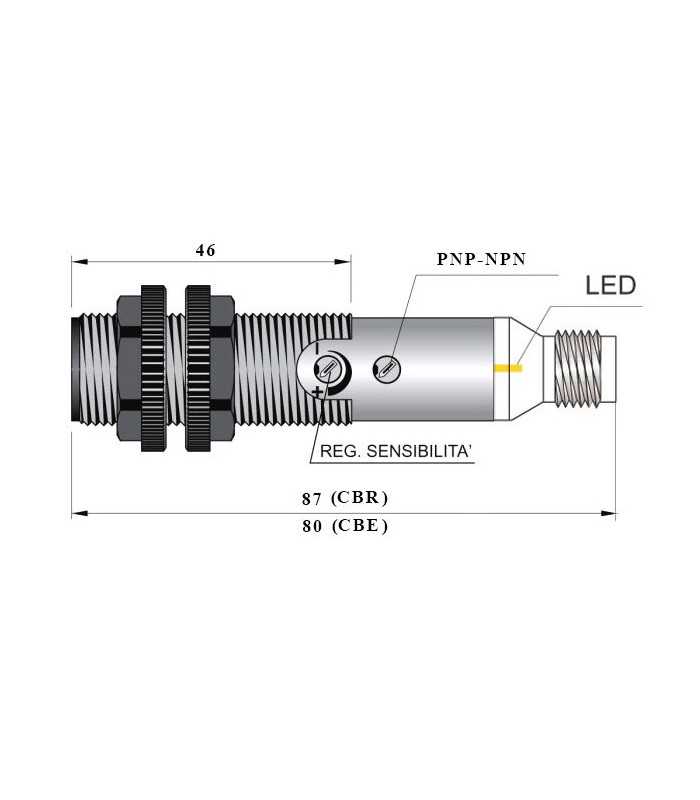

Fotocellula FT18SM-CP50

Sensing range Sn adjustable: 50 Cm
Programmable output: NPN/PNP NO + NC
Light source: Led Infrared
Power ON delay: = 100 mSec
Switching frequency: 200 Hz
Continuous voltage: 10 ÷ 30 V
Max output current: 200 mA
Max absorption at 24 Vdc: = 50 mA
Voltage drop (I out = 200 mA): = 1.8 V
Short circuit protection: Incorporated
Light immunity: > 10.000 Lux
Led: Yellow Operation indicator
Temperature limits: -20 ÷ +60 °C
IP rating: IP67
Housing: FT18SP series plastic housing - FT18SM series metallic housing
