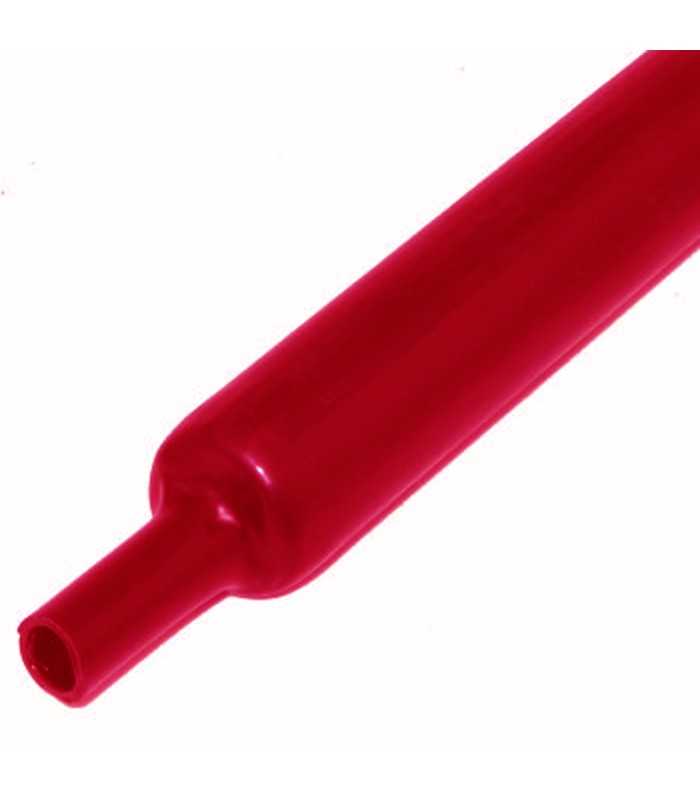

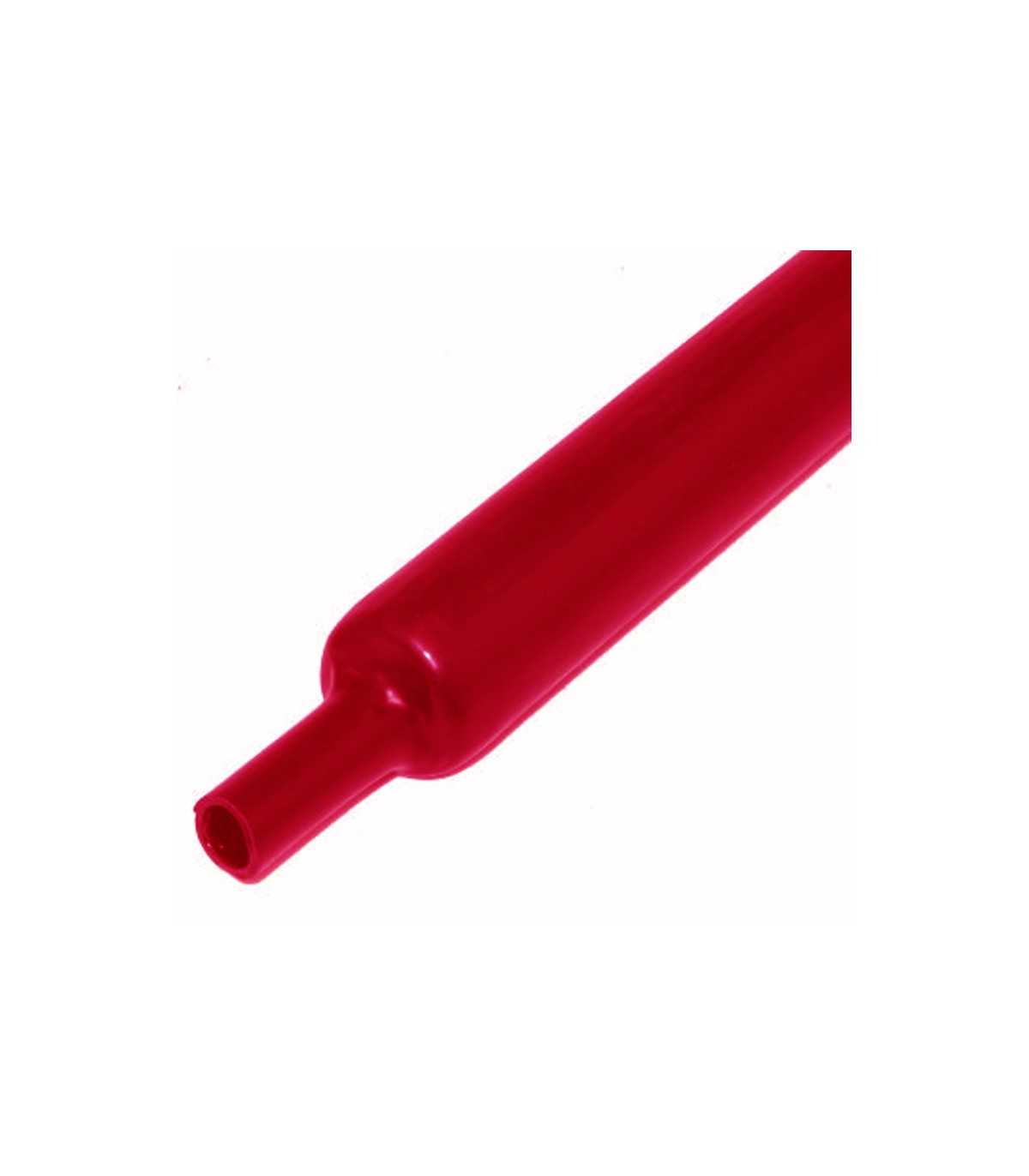

Guaina Termorestringente senza Colla diametro 6,4mm 2:1 Rosso

Codice ErreBi: 19736
Diametro: 6,4mm
Temperatura di esercizio (°C): -55° / +135°
Vendita al metro
Read moreShow less
0,52 € (Tasse escluse)
0,63 €

Sconti per quantità

Quantità Prezzo unitario Salva
2 0,63 € 0,00 €
10 0,57 € 0,63 €
26 0,51 € 3,29 €
50 0,48 € 7,93 €
100 0,41 € 22,27 €
250 0,35 € 71,29 €
500 0,32 € 158,60 €
1000 0,29 € 349,24 €
Disponibile in magazzino 304 Articoli
La quantità minima ordinabile per questo prodotto è 2.
Condizione
Nuovo
Reference:
RBGNTR6.4RO
Metti in lista desideri(1)
Descrizione
Polyolefin Sheath 2:1 shrink flexible, with high ratio of narrowing suited to various applications given its particular adaptability to all forms. Widely used for insulation and identification in electrical wiring, for cable assembly or as simple mechanical protection. It is also suitable for all those applications where a relatively low shrinkage temperature is required.

Features:
- Polyolefin
- Shrinkage factor: 2:1
- Self extinguishing
- Suitable for any use
- Highly flexible
- Tensile strength: = 17 MPa
- Elongation: = 500%
- Secant modulus: 175 MPa
- Specific weight: 1,30g / cm³
- Elongation after Heat Aging: 500%
- Tensile strength after thermal aging (168 hours at 175 ° C): 13 MPa
- Elongation after Heat Shock (4 hours at 250 ° C): No cracking
- Tensile strength after thermal shock (4 hours at 250 ° C): 13 MPa
- Low Temperature Flexibility: It does not break at -55 ° C
- Flammability: Self-extinguishing UL 224
- Dielectric Strength: 24 kV/mm
- Volume Resistivity: >= 10^14 Ohm/cm
- Weathering: Non-corrosive
- Water absorption: 0.15%

Certifications:
- Meets MIL - DTL - 123053/5
- Compliant with: RoHS

Application:
- Operating temperature: from -55°C to + 135°C
- Minimum shrinkage temperature: + 90°C
- Longitudinal variation: 0 ± 10% maximum
Read moreShow less
Dettagli del prodotto
RBGNTR6.4RO

Scheda tecnica

Tipologia di prodotto
Guaina Termorestringente
Materiale
Poliolefina
Colore
Rosso
Temperatura operativa
-55°C a +125°C
Diametro interno
6.4 mm
Rapporto di restringimento
2 a 1
Temperatura di restringimento min.
110°C
Colla
No
Flessibilità a bassa temperatura
Fino a -55° C
Rigidità dielettrica
26 kv/mm
Spessore
0.6 mm
Espandibile
No
Minimo d'ordine
2
Unità di misura
metri
