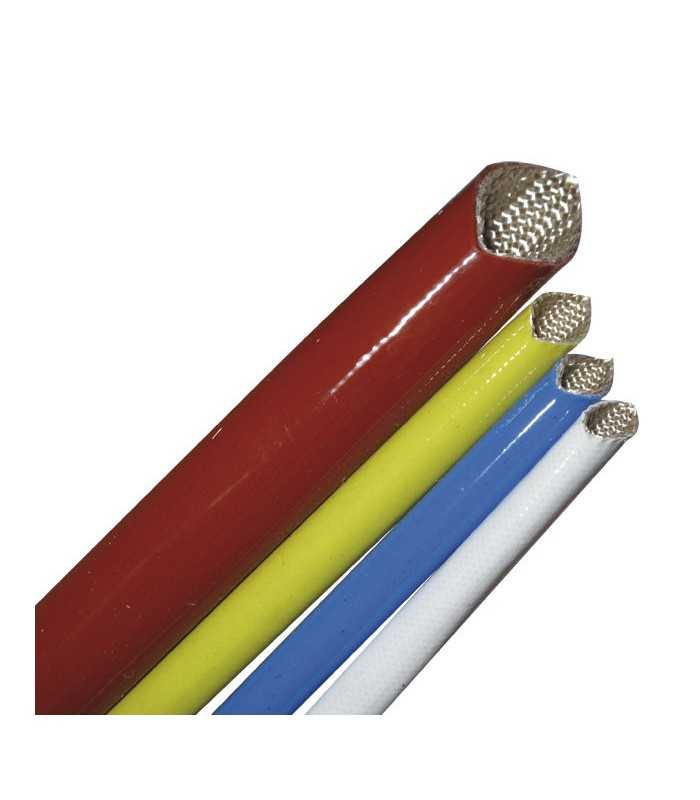

Guaina in vetro/silicone Diametro 14mm 1.5kv Rosso

Codice ErreBi: 20619
Diametro: 14mm
Temperatura di esercizio (°C): 180°
Vendita al metro
Read moreShow less
1,63 € (Tasse escluse)
1,99 €

Sconti per quantità

Quantità Prezzo unitario Salva
10 1,79 € 1,96 €
25 1,59 € 9,92 €
50 1,49 € 24,86 €
100 1,29 € 69,80 €
250 1,09 € 223,47 €
500 0,99 € 497,15 €
1000 0,89 € 1.094,72 €
Disponibile in magazzino 302 Articoli
Condizione
Nuovo
Reference:
RBGNVSD14/1.5KWR
Metti in lista desideri
Descrizione
Insulation jacket braided fiberglass coated with silicone resin. It has excellent resistance to high temperatures and a good electrical resistance, withstands vibration, rough handling and is highly resistant to bending being very flexible. Resistant to most chemical agents such as UV radiation, solvents, greases, oils. It is notaffected by mold or fungus. Used in wiring of appliances and heaters, ovens, stoves,irons, welding machines, lamps, transformers, electrical panels, etc. etc ..

It does not spread flame.
3 versions: 1.5 kV, 2.5 kV and 4 kV.
Standard color: red brick (Other: Black).
Thermal class H (180 ° C), but resists peaks of 250 ° C.
Dielectric strength to UL 1441.

After heat treatment: Do you notice any breakage or detachment of the sheath recoating after 48 hours at 260 ° C
At low temperatures: Do you notice any tears or detachment of the sheath covering after 60 minutes at - 70 ° C

Flame Propagation: Max 60 seconds
Read moreShow less
Dettagli del prodotto
RBGNVSD14/1.5KWR

Scheda tecnica

Tipologia di prodotto
Guaina Vetro/Silicone
Materiale
Vetro/Silicone
Colore
Rosso
Diametro interno
14 mm
Infiammabilità
Non propagano la fiamma.
Versione
1.5 kv
Espandibile
No
Temperatura operativa max.
+180°C
Minimo d'ordine
1
Unità di misura
metro
