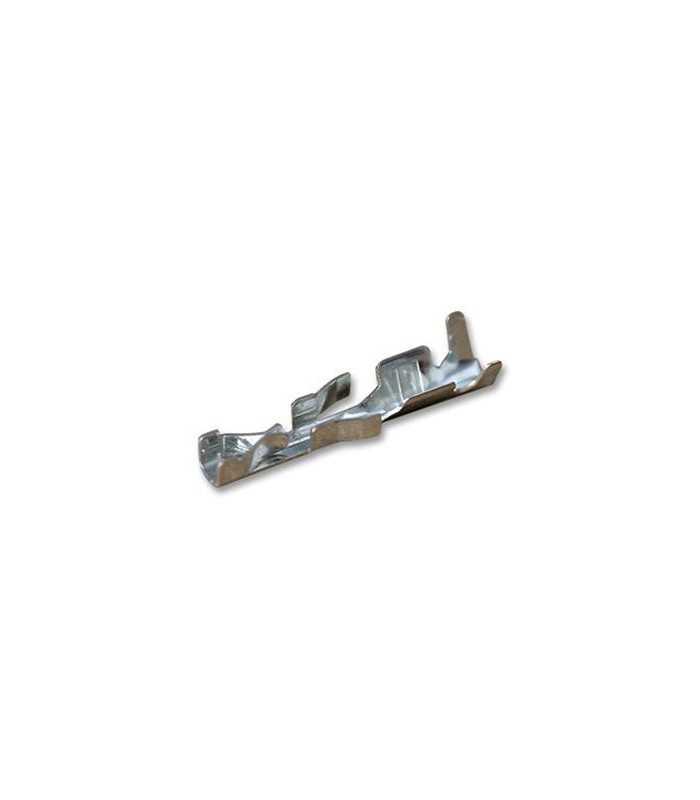

Terminale Minimodul Multimodul femmina per cavo di Sez. 0,30 - 0,60 mmq

Series: 3111
Series Number: 3111 G
Termination Method: Crimp
Gender: Female

Environmental conditions
- Temperature range: -25 °C to +100 °C

Materials
- Contact Material: Copper Tin Alloy
- Contact Plating: Tin

Mechanical data
- Insertion force/contact: <= 4.0 N
- Withdrawal force/contact: >= 0.5 N
- Retaining force in housing: > 50 N
- Suitable housing: empty housings 3114, 3823

Connectable conductors for crimp area
- Section:0.30–0.60 mmq
- Insulation diameter: 2.1 mm

Electrical data (at Tamb 20 °C)
- Contact resistance: <= 5 mohm
- Rated current: 5.0 A (Tamb 30 °C), 2.5 A (Tamb 70 °C)
