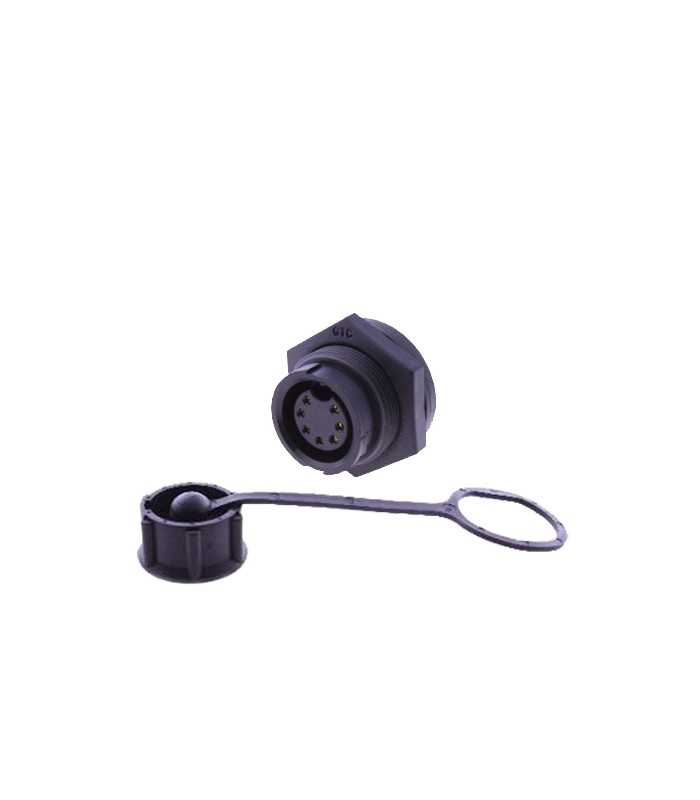

Connettore Circolare C3 Femmina 7 Vie da Panello

The Waterproof Circular Connector has designed for a wide range of applications. This series is basically applied to wireless outdoor AP, outdoor LED display and lighting, outdoor lamp, marine, automation machine and IPC/Military NB. The waterproof technology is guaranteed for the product has been tested in a 1M depth water environment for 30 minutes.

Apart from the material to make waterproof circular connector, we also focus on the process of producing. With a strict monitoring system, we are confident in providing our customers the best product. In order to make the customers feel satisfying, we also provided customized as well as the blueprints discussion services. If you are interested in our products and the services, please feel free and contact with us for our waterproof circular connector today!

Current Rating: 5.0A
AWG Gauge: 20 AWG ~ 24 AWG
Temperature Range: -40°C / +105°C
IP Rating: IP 67

Material
Female Housing: PA66
Female Contacts: Copper Alloy, Au Plating
Panel Hex Nut: PA66
Panel Gasket: Silicone
Glue: Epoxy

Technical Data
Insulation Resistance : DC500V±10%, test for 1 minute and the insulation resistance should be more than100Mohm
Dielectric Withstanding Voltage : 1500 V AC contact-to-contact, for 1 minute.
Contact Resistance: 10mohm at 10mA Max.
Durability: 4000 cycles insertion/extraction cycles at a maximum rate of 200cycles per hour.
Thermal Shock: 5 cycles at -40°C / +105°C, after the test, the function and appearance can't be impacted.
Waterproof Test: Under 1 M water for 30 minutes.
