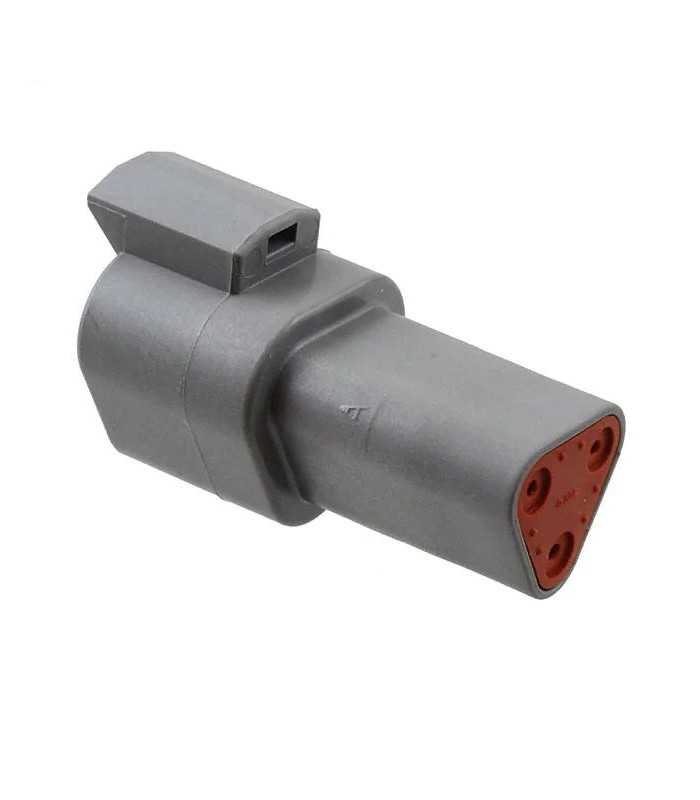

Product Type Features
Connector Style: Housing for male terminals
Sealed: Yes
Hybrid Connector: No
Primary Locking Feature: Integrated in Housing
Connector System: Wire-to-Wire
Configuration Features
Number of Positions: 3
Electrical Characteristics
Nominal Voltage Architecture (V): 12, 24, 42, 48, 80, 90, 125, 240
Operating Voltage (VDC): 250
Body Features
Body Material: PA GF
Cable Exit Angle: 180°
Color: Gray
Contact Features
Mating Pin Diameter: 1.5 mm [ 0.059 in ]
Mechanical Attachment
Terminal Position Assurance: No
Mounting Feature: No
Polarized: Yes
Housing Features
Pitch 4.45 mm [ 0.175 in ]
Dimensions
Width 17.15 mm [ 0.675 in ]
Height 17.02 mm [ 0.67 in ]
Length 43.38 mm [ 1.708 in ]
Usage Conditions
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]
Industry Standards
Degree of Protection: IP67
UL Flammability Rating: None
