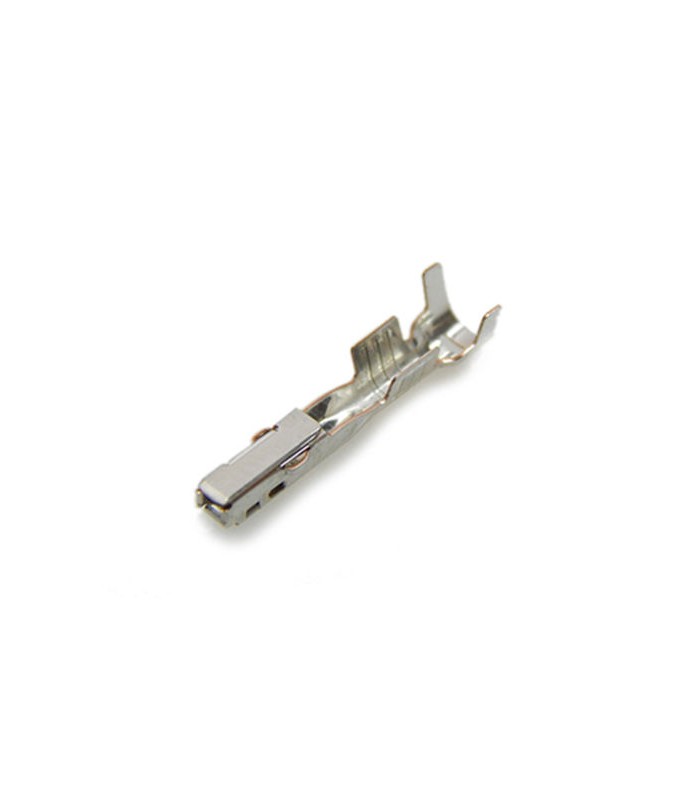

Terminale HV/HVG/HX Sealed Serie Femmina
Codice ErreBi: 22181
Codice produttore: 8100-3068
Produttore: Sumitomo
Read moreShow lessCodice produttore: 8100-3068
Produttore: Sumitomo
0,18 €
(Tasse escluse)
0,22 €
(Tasse incl.)
Condizione
Nuovo
Reference:
RBTNHVGHXSF0.75
Brand:
Metti in lista desideri
Sealed/Unsealed: sealed
Male/Female: F
Tab Size: 1.0mm(040)
Size: M
Mating parts: 8100-3178(HX sealed series/HV/HVG sealed series)
Applicable wire size: 0.75-1.25mm2
Cable overall diameter (mm): 1.8-2.2
Materials: Heat-resistant copper alloy
Surface treatment: Tin-plated
Contact resistance: Initial, 5mO Max. After durability tests, 10mO Max.
Leak current: 100µA Max.
Insulation resistance: 100MO Min.
Read moreShow less
Male/Female: F
Tab Size: 1.0mm(040)
Size: M
Mating parts: 8100-3178(HX sealed series/HV/HVG sealed series)
Applicable wire size: 0.75-1.25mm2
Cable overall diameter (mm): 1.8-2.2
Materials: Heat-resistant copper alloy
Surface treatment: Tin-plated
Contact resistance: Initial, 5mO Max. After durability tests, 10mO Max.
Leak current: 100µA Max.
Insulation resistance: 100MO Min.
