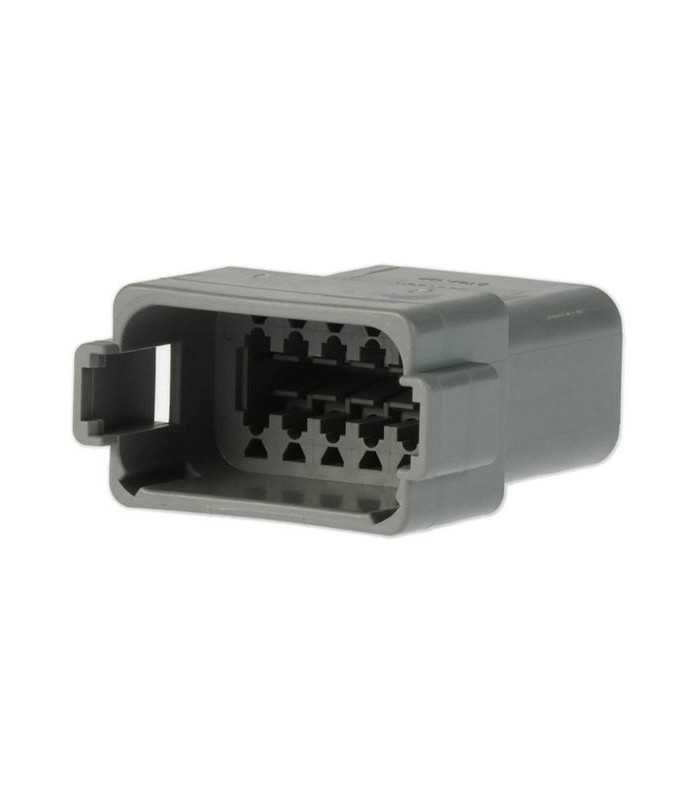

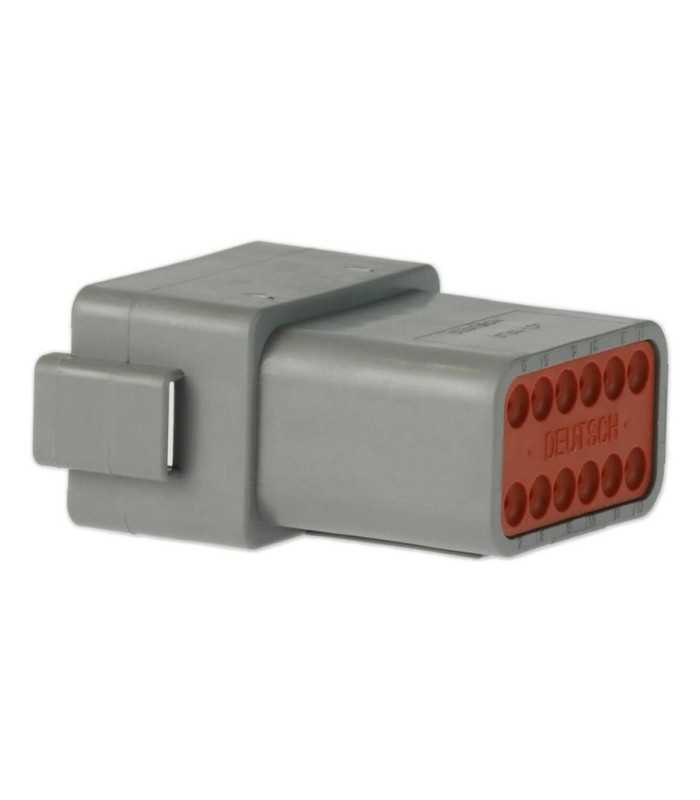

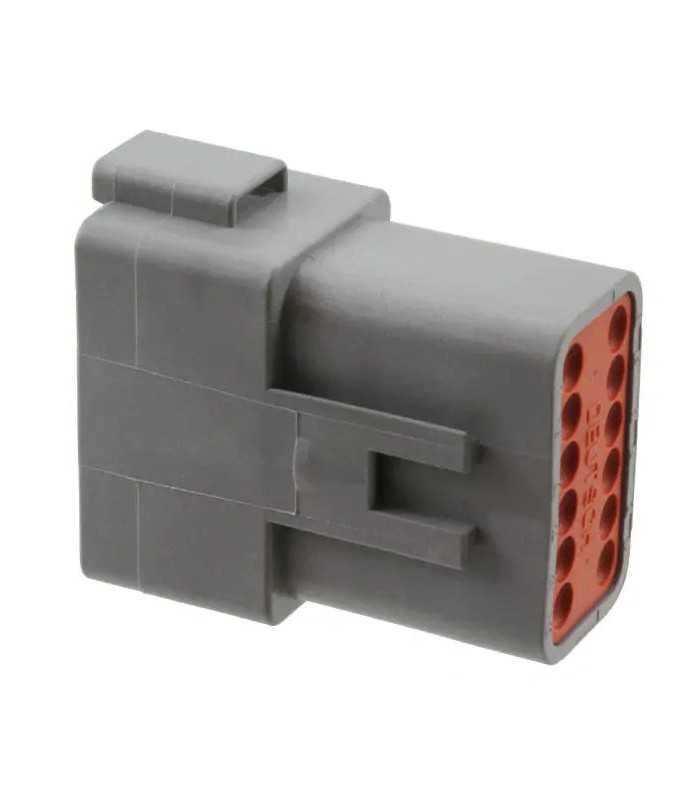

Connettore Serie DT Femmina 12 Vie

Product Type Features
- Connector & Housing Type: Housing for Male Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Connector & Contact Terminates To: Wire & Cable
- Strain Relief: Add By Accessory
- Row-to-Row Spacing: 4.45 mm [ .175 in ]

Configuration Features
- Number of Positions: 12
- Number of Rows: 2
- Blank Cavity Position: 0

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 48
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 250

Body Features
- Primary Product Color: Gray
- Connector Code: A
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Pin Diameter: 1.59 mm [ .0625 in ]
- Contact Current Rating (Max) (A): 13

Mechanical Attachment
- Connector Mounting Type: Cable Mount (Free-Hanging), Fixing Screw
- Mounting Feature: With
- Terminal Position Assurance: Yes
- Polarized: Yes

Housing Features
- Centerline (Pitch): 9.12 mm [ .359 in ]

Dimensions
- Width: 40.56 mm [ 1.597 in ]
- Height: 22.25 mm [ .876 in ]
- Length: 45.92 mm [ 1.808 in ]

Usage Conditions
- Operating Temperature (Max): 125 °C [ 257 °F ]
- Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
- Circuit Application: Power & Signal

Industry Standards
- Degree of Protection: IP68, IP6K9K
- UL Flammability Rating: 12mm Flame Test per Standard UL-94
- Agency/Standard: SAE J2030

Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
