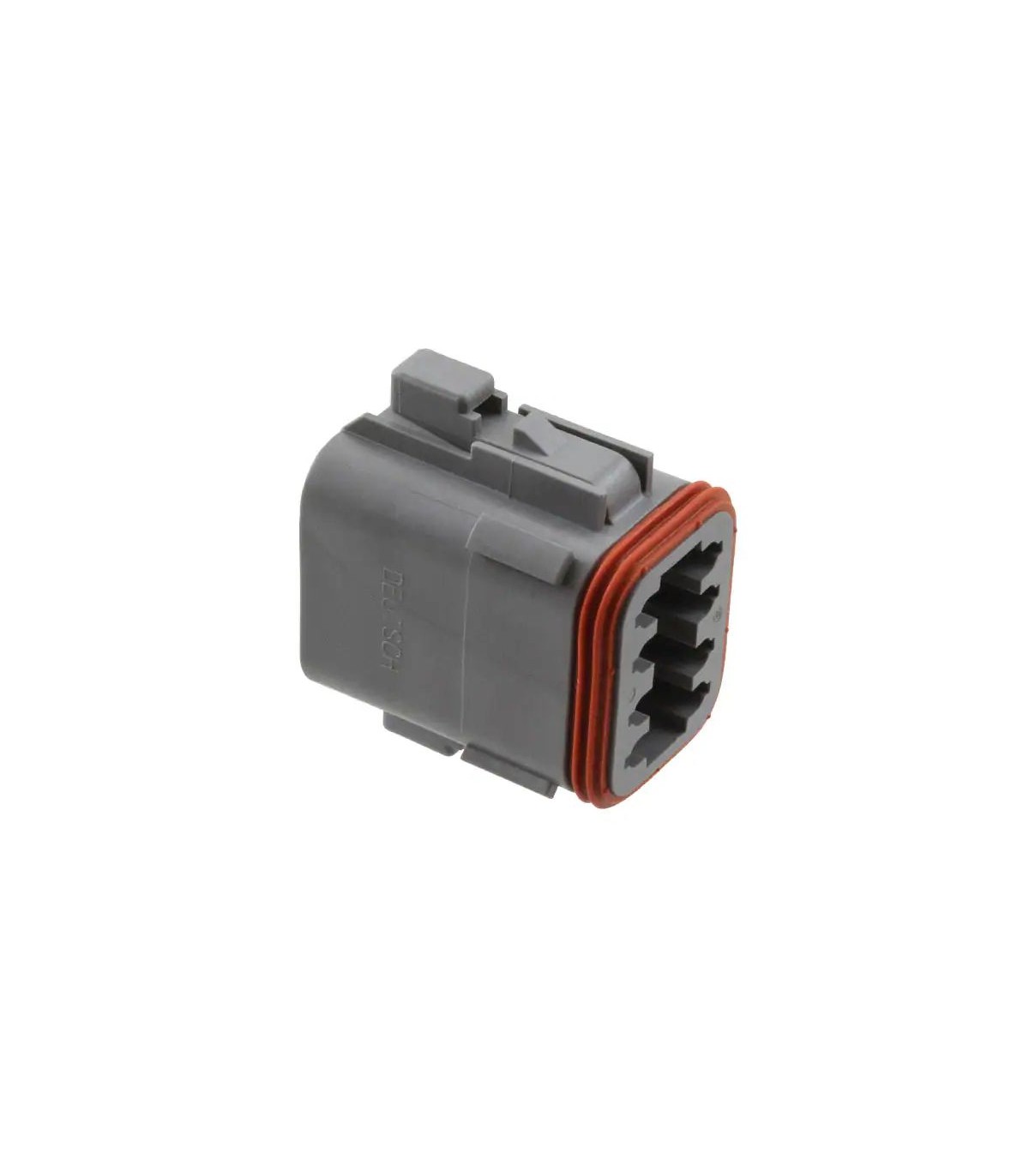

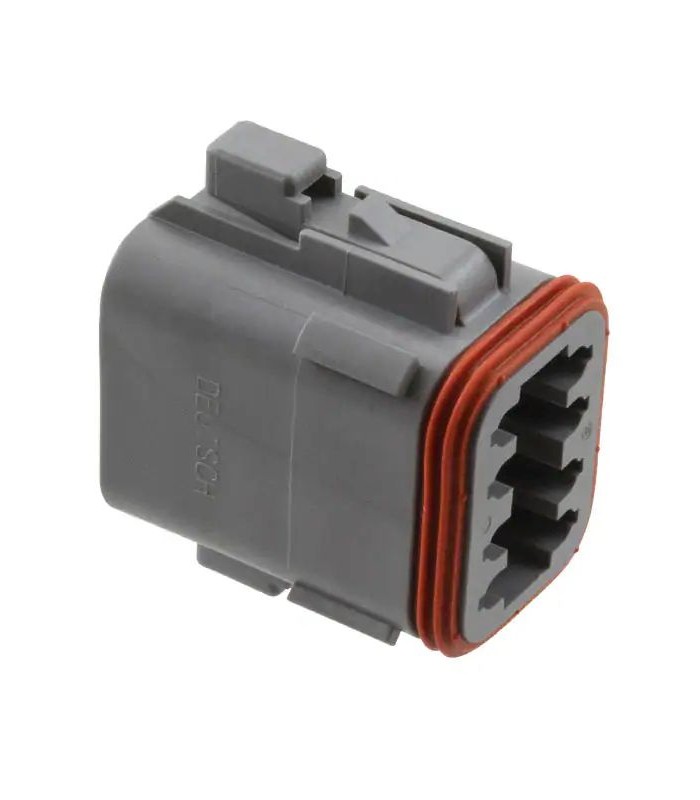

Connettore Serie DT Maschio 8 Vie

Codice ErreBi: 22680
Codice produttore: DT06-08SA
Produttore: Deutsch
Read moreShow less
2,31 € (Tasse escluse)
2,82 €

Sconti per quantità

Quantità Prezzo unitario Salva
10 2,54 € 2,78 €
25 2,26 € 14,06 €
50 2,11 € 35,23 €
100 1,83 € 98,92 €
250 1,55 € 316,70 €
500 1,41 € 704,55 €
1000 1,27 € 1.551,42 €
Disponibile in magazzino 623 Articoli
Condizione
Nuovo
Reference:
RBCTDTPF8V
Brand:
Metti in lista desideri
Descrizione
Product Type Features
- Connector & Housing Type: Housing for Female Terminals
- Connector System: Wire-to-Wire
- Sealable: Yes
- Hybrid Connector: No
- Primary Locking Feature: Integrated in Housing
- Connector & Contact Terminates To: Wire & Cable
- Strain Relief: Add By Accessory
- Row-to-Row Spacing: 4.45 mm [ .175 in ]

Configuration Features
- Number of Positions: 8
- Number of Rows: 2
- Blank Cavity Position: 0

Electrical Characteristics
- Nominal Voltage Architecture (V): 12, 24, 48
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 250

Body Features
- Primary Product Color: Gray
- Connector Code: A
- Cable Exit Angle: 180°
- Body Material: PA GF

Contact Features
- Mating Pin Diameter: 1.59 mm [ .0625 in ]
- Contact Current Rating (Max) (A): 13

Mechanical Attachment
- Mounting Feature: Without
- Terminal Position Assurance: Yes
- Polarized: Yes

Housing Features
- Centerline (Pitch): 9.12 mm [ .359 in ]

Dimensions
- Width: 19.71 mm [ .776 in ]
- Height: 37.21 mm [ 1.465 in ]
- Length: 30.91 mm [ 1.217 in ]

Usage Conditions
- Operating Temperature (Max): 125 °C [ 257 °F ]
- Operating Temperature Range: -55 – 125 °C [ -67 – 257 °F ]

Operation/Application
- Circuit Application: Power & Signal

Industry Standards
- Degree of Protection: IP68, IP6K9K
- UL Flammability Rating: 12mm Flame Test per Standard UL-94
- Agency/Standard: SAE J2030

Other
- Connector Position Assurance Capable: No
- Serviceable: Yes
Read moreShow less
Dettagli del prodotto
RBCTDTPF8V

Scheda tecnica

Tipologia di prodotto
Corpo del connettore
Serie
DT
Amperaggio
13A
Materiale
PA (Poliammide, Nylon)
Colore
Grigio
IP Protezione
IP68
Temperatura operativa
-55°C a +125°C
Dimensione
30,91x19,71x37,21 (L x W x H)
Voltaggio
250V
Montaggio
Sul cavo
Genere
Maschio
Numero di poli
8
Numero di file
2
Passo
9.12 mm
Orientamento
Diritto (180°)
Minimo d'ordine
1
Unità di misura
pezzo
