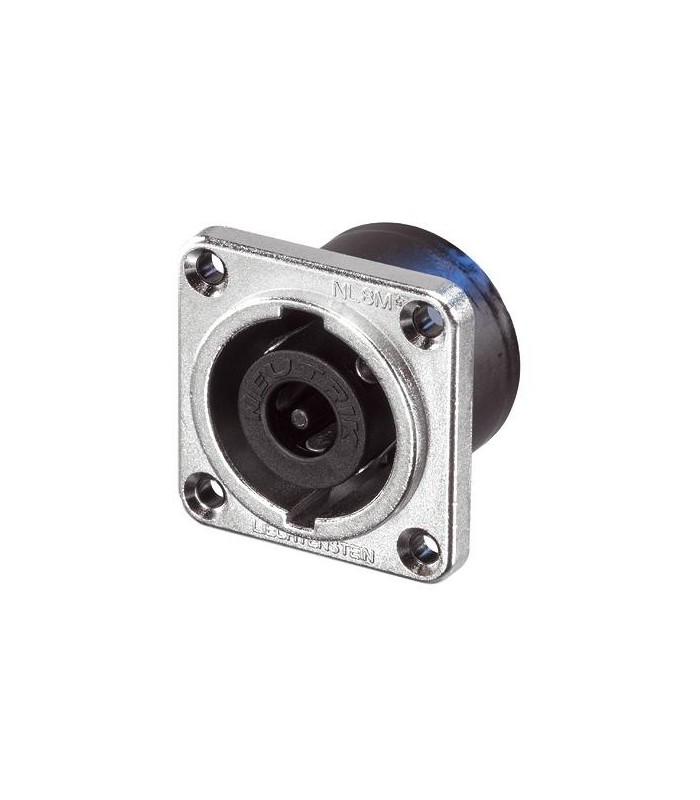

Connettore NL8 Maschio 8 Vie da Pannello

8 pole chassis connector, nickel metal square G-size flange, countersunk thru holes, 3/16" flat tabs.

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits
-Glass reinforced materials make it extremely robust and dependable
-Precise keyway for secure mating
-Accurate twist lock latching system
-Metal flange
-Airtight design - optimized for speaker applications

Product
Title: NL8MPR
Connection Type: speakON
Gender: male

Electrical
Contact resistance: = 3 mO (after lifetime)
Dielectric strength: 4 kVdc (peak)
Insulation resistance: > 1 GO (after dampheat)
Rated current per contact: 30 A rms continuous
Rated current per contact: 40 A audiosignal, duty cycle 50 %
Rated voltage: 250 V (Insulation)
Attention: speakON is NOT to be used as an AC mains or power supply connector!

Mechanical
Lifetime: > 5000 mating cycles
Locking device: Quick Lock
Chassis shape: square G-size flange
Layout: four thru holes

Material
Contact plating: 4 µm Ag
Contacts: Bronze (CuSn6)
Shell: Polyamide (PA 6 30 % GR) Ni

Environmental
Flammability: UL 94 HB
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
