Orange Pi 5 con 16 GB di RAM
Codice ErreBi: 61692
Produttore: Orange
Memoria (SDRAM): 16GB DDR4
Read moreShow lessProduttore: Orange
Memoria (SDRAM): 16GB DDR4
283,16 €
(Tasse escluse)
345,46 €
(Tasse incl.)
Condizione
Nuovo
Reference:
RBOP516GB
Brand:
Metti in lista desideri
Orange Pi 5 utilizza il processore Rockchip RK3588S di nuova generazione a 8 core a 64 bit, quad-core A76 + quad-core A55, con design del processo a 8 nm, frequenza principale fino a 2,4 GHz, GPU ARM Mali-G610 integrata, 3D ad alte prestazioni incorporato /Modulo di accelerazione delle immagini 2D, NPU integrato con potenza di calcolo 6Tops, con 4 GB/8 GB/16 GB (LPDDR4/4x) e capacità di elaborazione del display fino a 8K.
Orange Pi 5 offre numerose interfacce, tra cui uscita HDMI, interfaccia GPIO, M.2 PCIe2.0, Type-C, porta LAN Gigabit, 2*USB2.0, 1*USB3.0, ecc.; Può essere ampiamente utilizzato in tablet, edge computing, intelligenza artificiale, cloud computing, AR/VR, sicurezza intelligente, casa intelligente e altri campi, coprendo vari settori dell'AIoT.
Orange Pi 5 supporta Orange Pi OS (Droid), il sistema operativo ufficiale sviluppato da Orange Pi, così come Android12 e Debian11.
Hardware specification
SoC:
Rockchip RK3588S (8nm LP process)
CPU:
- 8-core 64-bit processor
- Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
- Arm Mali-G610 MP4 “Odin” GPU
- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
- 3D graphics engine and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB (LPDDR4/4x)
Memory:
- QSPI Nor FLASH 16MB
- MicroSD (TF) Card Slot
- M.2 M-KEY Socket
USB:
- USB3.0 × 1
- USB2.0 × 2
- Type-C (USB3.1) ×1
Video Output:
- HDMI2.1, up to 8K @60Hz
- DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
- 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera:
- MIPI CSI 4Lane
- 2 * MIPI D-PHY RX 4Lane
Audio: CODEC: ES8388
- 3.5mm headphone jack audio input/output
- Input: Onboard MIC
- HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
- Support PCIe NVMe SSD
- Support custom PCIe Wi-Fi6+BT5.0 module
Button:
- 1×MaskROM key
- 1×Recovery key
- 1×On/Off key
Power Source: Support Type-C power supply, 5V @ 4A
LED:
- Power indicator: red
- Status indicator: green
Debugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid)?Orangepi OS(Arch)?Ubuntu?Debian?Android12

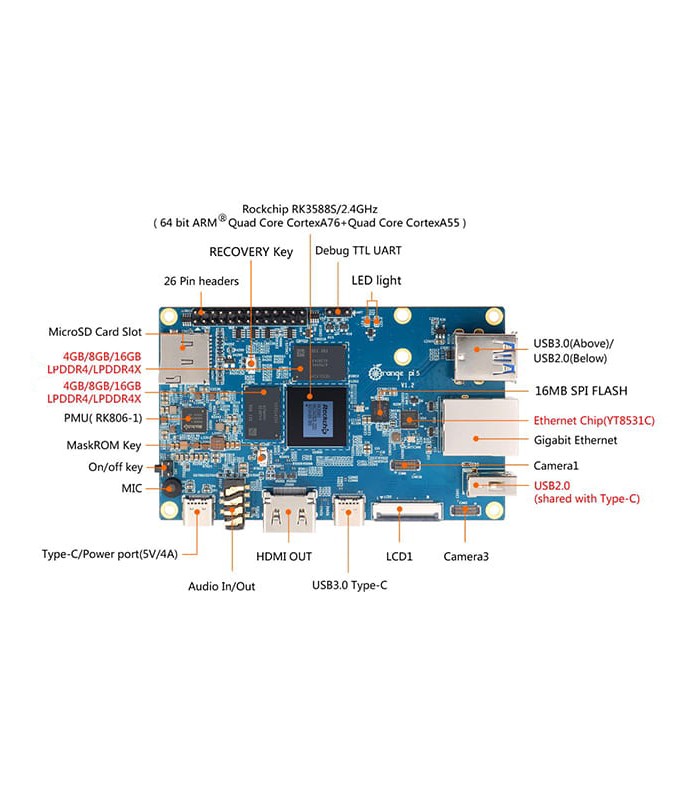

Interface definition:
Product size: 62 mm × 100mm
Weight: 46g
Rockchip RK3588S (8nm LP process)
CPU:
- 8-core 64-bit processor
- Big.Little Architecture: 4xCortex-A76 and 4xCortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU
- Arm Mali-G610 MP4 “Odin” GPU
- Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
- 3D graphics engine and 2D graphics engine
NPU: Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU: RK806-1
RAM: 4GB/8GB/16GB (LPDDR4/4x)
Memory:
- QSPI Nor FLASH 16MB
- MicroSD (TF) Card Slot
- M.2 M-KEY Socket
USB:
- USB3.0 × 1
- USB2.0 × 2
- Type-C (USB3.1) ×1
Video Output:
- HDMI2.1, up to 8K @60Hz
- DP1.4 (DisplayPort), DP1.4 and USB3.1 ports are multiplexed, and the port is shared with Type-C
- 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera:
- MIPI CSI 4Lane
- 2 * MIPI D-PHY RX 4Lane
Audio: CODEC: ES8388
- 3.5mm headphone jack audio input/output
- Input: Onboard MIC
- HDMI 2.1 eARC
Ethernet: 10/100/1000Mbps Ethernet
Expansion Port: For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces.
M.2 M-KEY Socket Expansion Slot:
- Support PCIe NVMe SSD
- Support custom PCIe Wi-Fi6+BT5.0 module
Button:
- 1×MaskROM key
- 1×Recovery key
- 1×On/Off key
Power Source: Support Type-C power supply, 5V @ 4A
LED:
- Power indicator: red
- Status indicator: green
Debugging: 3 Pin debug serial port (UART)
Supported OS: Orangepi OS(Droid)?Orangepi OS(Arch)?Ubuntu?Debian?Android12
Interface definition:
Product size: 62 mm × 100mm
Weight: 46g
| Orange Pi 4 VS Orange Pi 4 LTS (4GB) | ||
| Model | Orange Pi 4 | Orange Pi 4 LTS |
| Hardware features | ||
| SOC | Rockchip RK3399 | Rockchip RK3399 |
| CPU architecture | Cortex-A72+Cortex™-A53 | Cortex-A72+Cortex™-A53 |
| CPU frequency | 1.8GHz | 1.6GHz |
| Onboard Storage | 16GB EMMC Flash | Without EMMC |
| Core number | 6 | 6 |
| Memory bus | LPDDR4 | LPDDR4 |
| Memory | Dual 4GB | 4GB |
| WiFi+BT | WiFi+BT5.0 (AP6256) | WiFi+BT5.0 (CDW.20U5622-00) |
| Onboard Network | 10M/100M/1000M Ethernet (Realtek RTL8211E) | 10M/100M/1000M Ethernet (YT8531C) |
| USB | 2*USB2.0 + 1*USB3.0 + 1*USB3.0 Type-C | 2*USB2.0 + 1*USB3.0 + 1*USB3.0 Type-C |
| Debug UART | 3Pin | 3Pin |
| PCIE | Support Mini PCIE Port | Support Mini PCIE Port |
| GPIO | GPIO1 40Pin | 26Pin |
| PCB size | 56X91mm | 56X91mm |
| Power interface | DC 5V/3A,TYPE-C 5V/3A | DC 5V/3A,DC 5V/4A Type-C 5V/4A |
| PMU | Yes | Yes |
| MIC | Yes | Yes |
| Software features | ||
| OS | Android, Ubuntu, Debian | Android, Ubuntu, Debian |
