CPU:
- Allwinner H616 64-bit high-performance Quad-core Cortex-A53 processor
GPU
- Mali G31 MP2
- Supports OpenGL ES 1.0/2.0/3.2?OpenCL 2.0
Video decoding:
- H.265 [email protected] decoder up to 4K@60fps or 6K@30fps
- VP9 Profile 2 decoder up to 4K@60fps
- AVS2 JiZhun 10bit decoder up to 4K@60fps
- H.264 BP/MP/[email protected] decoder up to 4K@30fps
Video encoding:
- H.264 BP/MP/HP encoder up to 4K@25fps or 1080p@60fp
- JPEG snapshot performance of 1080p@60fps
Memory (SDRAM): 1GB DDR3 (Shared with GPU)
Onboard Storage
- TF card slot
- 2MB SPI Flash
Onboard Network:
- Support 1000M/100M/10M Ethernet
Onboard WiFi+BT:
- AW859A Chip
- Support IEEE 802.11 a/b/g/n/ac
- Support BT5.0
Video Outputs:
- Micro HDMI 2.0a up to 4K@60fps
- TV CVBS output, Support PAL/NTSC(Via 13pin interface board)
Audio output:
- Micro HDMI
- 3.5mm audio port (Via 13pin interface board)
Power Source: Type-C interface 5V3A input
USB 2.0 Ports: 3*USB 2.0 HOST(Two of them are via 13pin interface board)
Low-level peripherals:
- 26pin header with I2C, SPI, UART and multiple GPIO ports
- 13pin header with 2*USB Host, IR pin, Tv-out?AUDIO (no MIC) and 3 GPIO ports
Debug serial port: UART-TX?UART-RX and GND
LED: Power led & Status led
IR receiver: Support IR remote control (via 13pin interface board)
Supported OS: Android10?Ubuntu?Debian

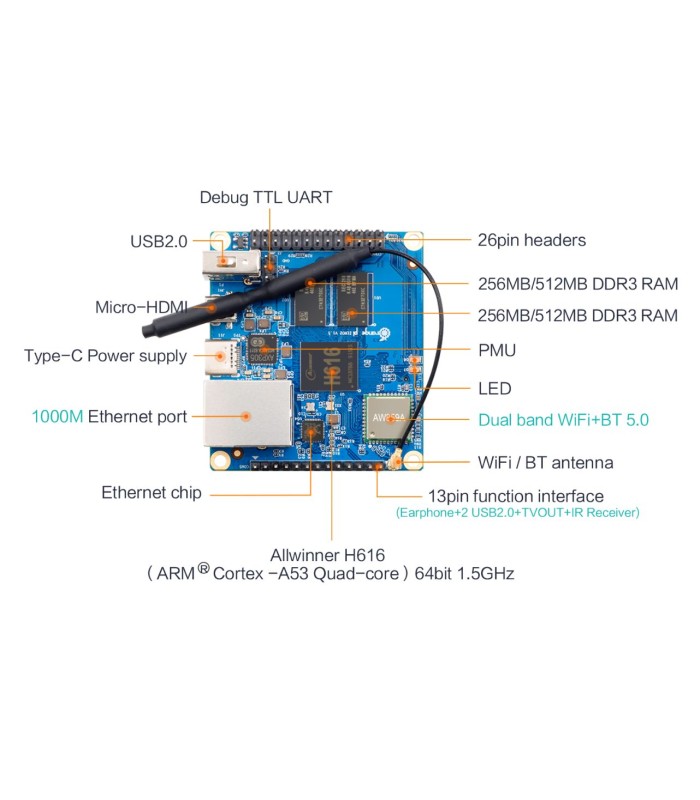

Interface definition:
Product size: 53 mm × 60mm
Weight: 30g
