SOC: Rockchip RK3399 (4GB)
CPU:
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU
- Mali400MP2 GPU @600MHz
- Supports OpenGL ES 2.0
Memory (SDRAM): 512MB DDR3 (shared with GPU)
Onboard Storage: TF card (Max. 32GB) / MMC card slot
Onboard Network: 10/100M Ethernet RJ45
Video Input
- A CSI input connector Camera:
- Supports 8-bit YUV422 CMOS sensor interface
- Supports CCIR656 protocol for NTSC and PAL
- Supports SM pixel camera sensor
- Supports video capture solution up to 1080p@30fps
Video Outputs
- Supports HDMI output with HDCP
- Supports HDMI CEC
- Supports HDMI 30 function
- Supports simultaneous output of HDMI
Power Source: DC input can supply power, but USB OTG input don’t supply power
USB 2.0 Ports: Only One USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button(SW4)
Low-level peripherals: 40 Pins Header
LED: Power led & Status led
Key: POWER
Supported OS: Android Ubuntu, Debian Image

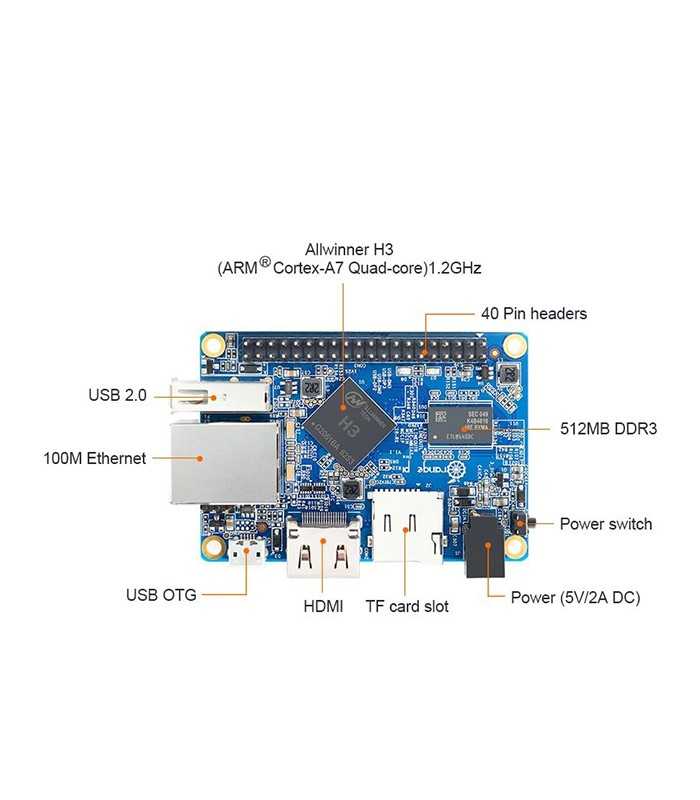

Interface definition:
Product size: 69 mm × 48mm
Weight: 36g
