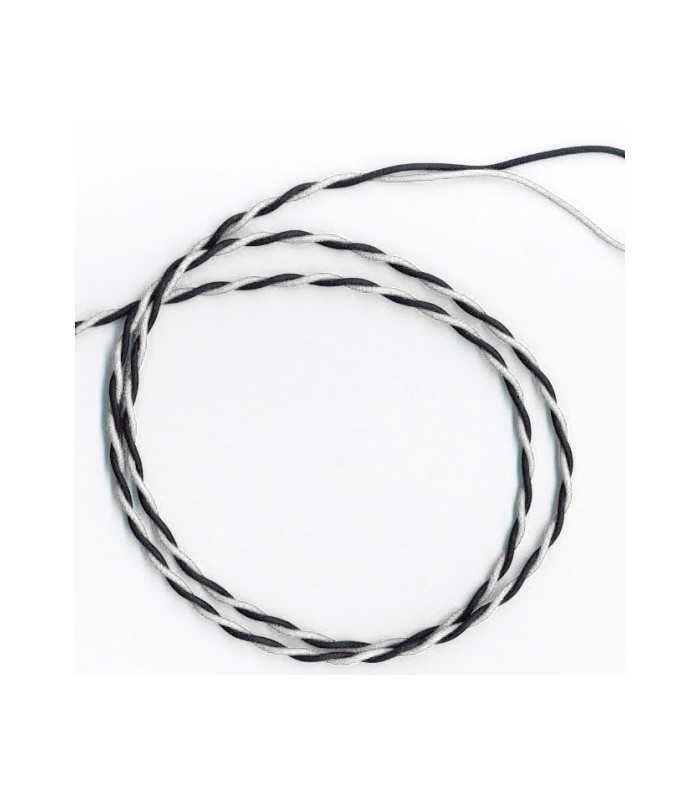

Cavo Filo Unipolare FLRY-B 6722 Twistato 2x1,00 mmq Bianco - Bianco/Nero
Codice ErreBi: 17188
Vendita al metro
Read moreShow lessVendita al metro
1,06 €
(Tasse escluse)
1,29 €
(Tasse incl.)
Condizione
Nuovo
Reference:
RBCVFLRYB2X1TBNNR
Brand:
Metti in lista desideri
Multi strand wire. The steps of stranding Comply with the requirements of DIN 72551.
Insulation polyvinyl chloride suitable for use in the automotive industry resistant to mineral oils, hydrocarbons and fluids Motor (PVC type T2 or T3 to specifications FIAT 91107, Class B or Class C according to ISO 6722).
Rated voltage: 50 V
Test voltage: 3 kV or 5 kV
Temperature: 105 ° C or 125 ° C
Short circuit temperature: 160 ° C
Minimum bending radius: 6 x D
Read moreShow less
Insulation polyvinyl chloride suitable for use in the automotive industry resistant to mineral oils, hydrocarbons and fluids Motor (PVC type T2 or T3 to specifications FIAT 91107, Class B or Class C according to ISO 6722).
Rated voltage: 50 V
Test voltage: 3 kV or 5 kV
Temperature: 105 ° C or 125 ° C
Short circuit temperature: 160 ° C
Minimum bending radius: 6 x D
RBCVFLRYB2X1TBNNR
Scheda tecnica
- Tipologia di prodotto
- Cavo FLRY-B
- Colore
- Bianco/Nero
- Diametro esterno
- 2.05 mm
- Voltaggio
- 50V
- Temperatura operativa min.
- -40°C
- Temperatura operativa max.
- +125°C
- Materiale dell'isolante
- PVC
- Conduttore (Materiale)
- Rame Elettrolitico
- Sezione del cavo mmq
- 1.00 mmq
- Test Voltaggio
- 3 kV - 5 kV
- Resistenza del conduttore
- <= 7.98 Ohm/Km
- Minimo d'ordine
- 2
- Unità di misura
- metri
