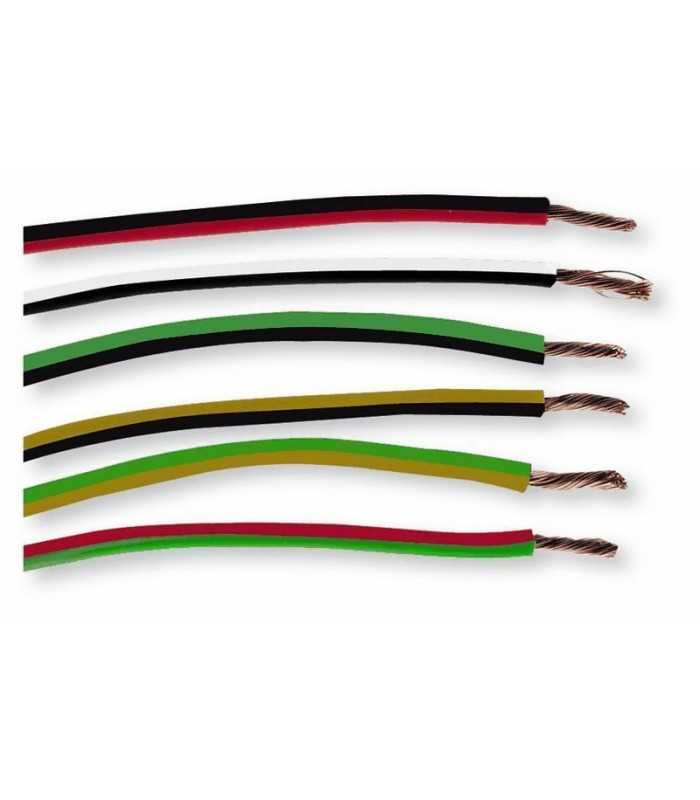

Cavo Filo Unipolare N07V-K sez. 4,00 mmq Giallo/Verde
Codice ErreBi: 17787
Vendita al metro
Read moreShow lessVendita al metro
2,89 €
(Tasse escluse)
3,53 €
(Tasse incl.)
Condizione
Nuovo
Reference:
RBCVN074GLVR
Brand:
Metti in lista desideri(1)
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables.
For installation in surface conduits or embedded conduits or similar closed systems.
Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground.
The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists.
For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read moreShow less
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables.
For installation in surface conduits or embedded conduits or similar closed systems.
Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground.
The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists.
For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCVN074GLVR
Scheda tecnica
- Tipologia di prodotto
- Cavo H07V-K
- Colore
- Giallo/Verde
- Diametro esterno
- 4.20 mm
- Voltaggio
- 750V
- Temperatura operativa min.
- -10°C
- Temperatura operativa max.
- +70°C
- Materiale dell'isolante
- PVC
- Conduttore (Materiale)
- Rame Elettrolitico
- Sezione del cavo mmq
- 4.00 mmq
- Schermatura
- No
- Test Voltaggio
- 2500V
- Tipologia impiego
- Cablaggi Interni
- Resistenza del conduttore
- <= 4.95 Ohm/Km
- Minimo d'ordine
- 2
- Unità di misura
- metri
