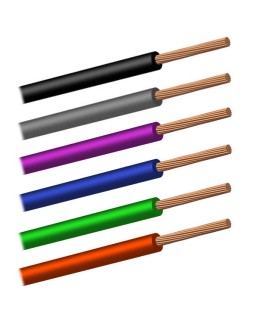

Cavo Filo Unipolare N07V-K sez. 25,00 mmq Nero

Codice ErreBi: 17374
Vendita al metro
Read moreShow less
9,04 € (Tasse escluse)
11,03 €

Sconti per quantità

Quantità Prezzo unitario Salva
5 10,33 € 3,50 €
10 8,05 € 29,76 €
25 7,18 € 96,28 €
100 6,30 € 472,69 €
200 5,60 € 1.085,45 €
Disponibile in magazzino 2766 Articoli
Condizione
Nuovo
Reference:
RBCV25N07NR
Metti in lista desideri(1)
Descrizione
Nominal voltage Uo/U: 450/750 V
Maximum operating temperature: 70°C
Minimum operating temperature: -10°C (without mechanical stress)
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter

Use and installation
For systems requiring not propagating fire cables.
For installation in surface conduits or embedded conduits or similar closed systems.
Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground.
The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists.
For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read moreShow less
Dettagli del prodotto
RBCV25N07NR

Scheda tecnica

Tipologia di prodotto
Cavo H07V-K
Colore
Nero
Diametro esterno
9.00 mm
Voltaggio
750V
Temperatura operativa min.
-10°C
Temperatura operativa max.
+70°C
Materiale dell'isolante
PVC
Conduttore (Materiale)
Rame Elettrolitico
Sezione del cavo mmq
25.00 mmq
Schermatura
No
Test Voltaggio
2500V
Tipologia impiego
Cablaggi Interni
Resistenza del conduttore
<= 0.780 Ohm/Km
Minimo d'ordine
1
Unità di misura
metro
