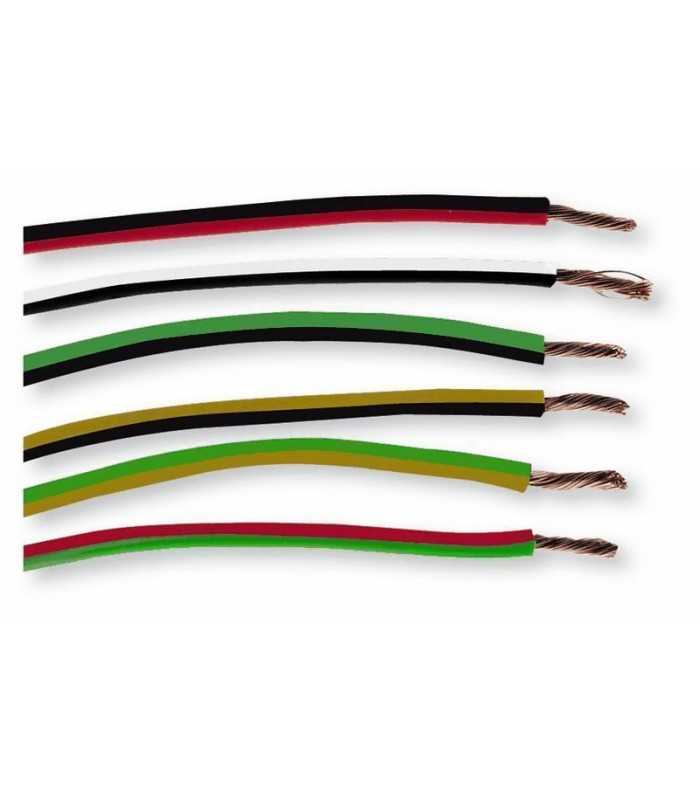

Cavo Filo Unipolare N07V-K sez. 1,00 mmq Giallo/Marrone
Codice ErreBi: 18786
Vendita al metro
Read moreShow lessVendita al metro
0,45 €
(Tasse escluse)
0,55 €
(Tasse incl.)
Condizione
Nuovo
Reference:
RBCV1N07GLMR
Brand:
Metti in lista desideri
Nominal voltage Uo/U: 450/750 V
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read moreShow less
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCV1N07GLMR
Scheda tecnica
- Tipologia di prodotto
- Cavo H07V-K
- Colore
- Giallo/Marrone
- Diametro esterno
- 2.50 mm
- Voltaggio
- 750V
- Temperatura operativa min.
- -10°C
- Temperatura operativa max.
- +70°C
- Materiale dell'isolante
- PVC
- Conduttore (Materiale)
- Rame Elettrolitico
- Sezione del cavo mmq
- 1.00 mmq
- Numero di trefoli
- 32
- Dimensione dei trefoli
- 0.193 mm
- Schermatura
- No
- Test Voltaggio
- 2500V
- Resistenza alla fiamma
- CEI EN 60332-1-2
- Tipologia impiego
- Cablaggi Interni
- Resistenza del conduttore
- <= 19.5 Ohm/Km
- Minimo d'ordine
- 5
- Unità di misura
- metri
