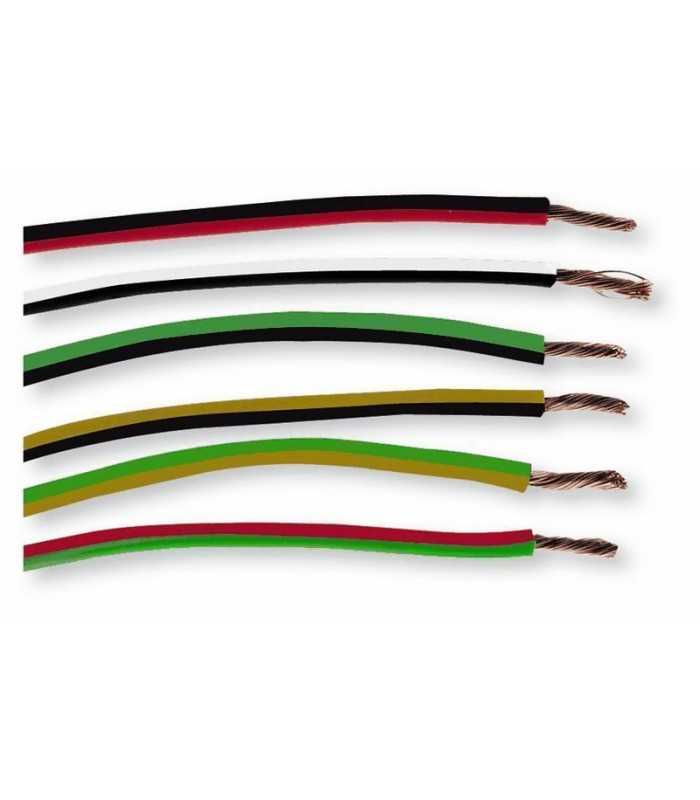

Cavo Filo Unipolare H05V-K sez. 0,75 mmq Bianco/Rosso
Codice ErreBi: 18295
Vendita al metro
Read moreShow lessVendita al metro
0,46 €
(Tasse escluse)
0,56 €
Condizione
Nuovo prodotto
Reference:
RBCV0.75H05BNRO
Brand:
Nominal voltage Uo/U: 450/750 V
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
Read moreShow less
Minimum operating temperature: -10°C (without mechanical stress)
Maximum operating temperature: 70°C
Minimum installation temperature: 5°C
Maximum short circuit temperature: 160°C
Maximum tensile stress: 50 N/mm2
Minimum bending radius: 4 x maximum external diameter
Use and installation
For systems requiring not propagating fire cables. For installation in surface conduits or embedded conduits or similar closed systems. Suitable for fixed and protected installation in lighting appliances and switching and control equipments, allowed for voltages up to 1000 V a.c. or up to 750 V d.c. to ground. The 1 mm² section is provided (in addition to others) only for internal wiring in switchboards for signalling and control or for electric circuits of lifts and hoists. For fire risk installations, the maximum temperature must not exceed 55°C. (ref. CEI 20-40)
RBCV0.75H05BNRO
Scheda tecnica
- Colore
- Bianco/Rosso
- Diametro esterno
- 2.30 mm
- Voltaggio
- 750V
- Temperatura operativa min.
- -10°C
- Temperatura operativa max.
- +70°C
- Materiale dell'isolante
- PVC
- Conduttore (Materiale)
- Rame Elettrolitico
- Sezione del cavo mmq
- 0.75 mmq
- Dimensione dei trefoli
- 0.193 mm
- Schermatura
- No
- Test Voltaggio
- 2500V
- Resistenza alla fiamma
- IEC 60332-1-2
- Tipologia impiego
- Cablaggi Interni
- Resistenza del conduttore
- <= 26.0 Ohm/Km
- Tipologia di prodotto
- Cavo H05V-K
- Minimo d'ordine
- 7
- Unità di misura
- metri
