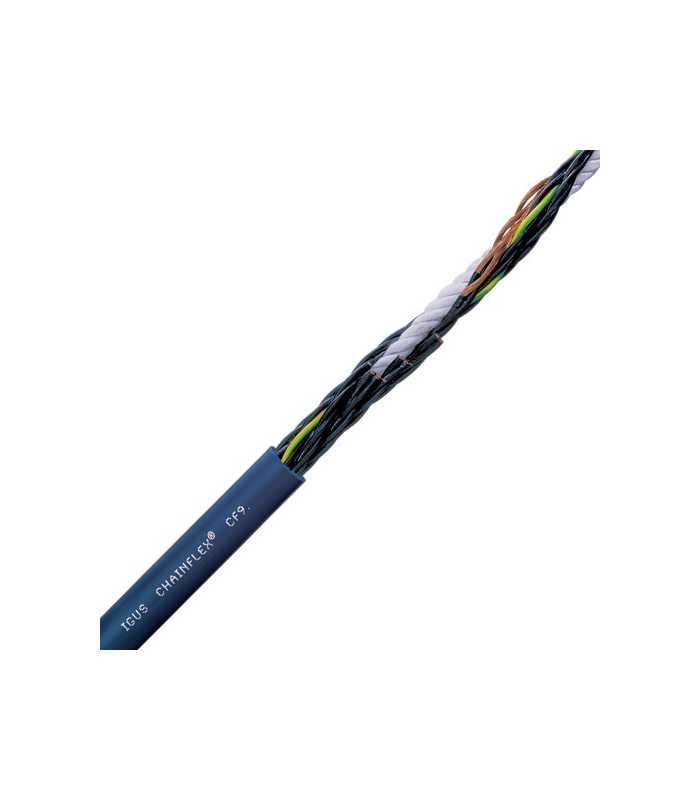

Cavo in TPE Chainflex 8x0,34 300/500V

Codice ErreBi: 14444
Codice produttore: CF9.03.08
Produttore: IGUS
Vendita al metro
Read moreShow less
6,86 € (Tasse escluse)
8,37 €

Sconti per quantità

Quantità Prezzo unitario Salva
10 7,89 € 4,78 €
25 7,41 € 23,91 €
50 5,86 € 125,54 €
100 5,26 € 310,83 €
250 4,66 € 926,68 €
500 4,18 € 2.092,30 €
Prodotto disponibile per gli ordini
Condizione
Nuovo
Reference:
RBCVETPE8X0.34
Brand:
Metti in lista desideri
Descrizione
Cable Type: Chainflex® CF
number of wires: 8
Section (single conductor): 0:34 mm²
Section: 8 x 0:34 mm²
Features: Halogen-free, resistance chain, resistant to oils, sheath TPE
Outside diameter: 6.5 mm
Blue: Color
Content: Goods meter
Nominal voltage: 500 V
Rated voltage: U0 - 300 V
Verify voltage: 2000 V (in accordance with DIN VDE 0281-2)
Packaged: No
Goods meter: Yes
Halogen-free: Yes
Shielded: No
Manufacturer part number: CF9.03.08
Insulation: Rubber
Insulation: TPE mixture
Operating temperature range of flexion (min.): -35 ° C
Temperature range in motion (max.): +100 ° C
Temperature range, fixed installation (min.): -40 ° C
Temperature range, fixed installation (max.): +100 ° C
Type: CF9.03.08
Read moreShow less
Dettagli del prodotto
RBCVETPE8X0.34

Scheda tecnica

Minimo d'ordine
1
Unità di misura
metro
