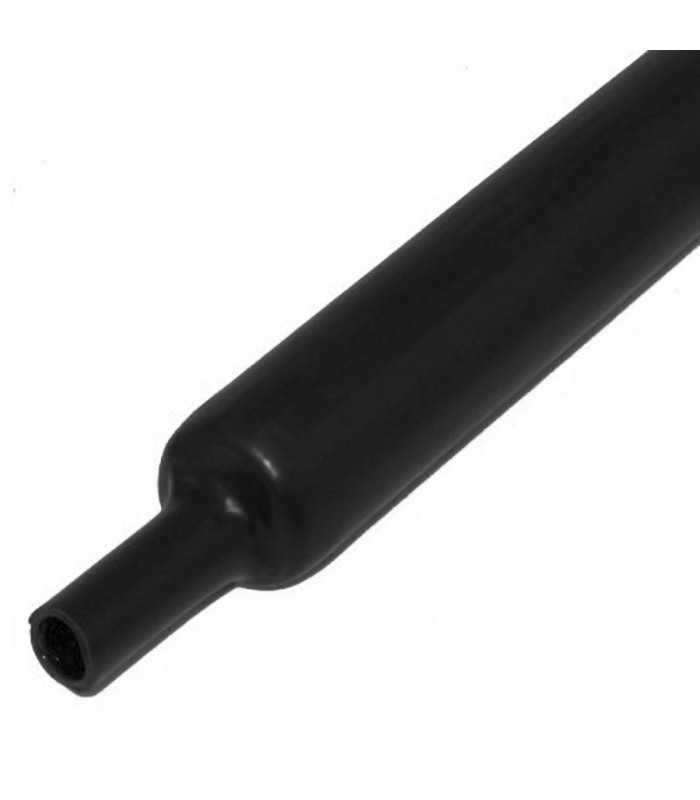

Schrumpfschläuche ohne Klebstoff Durchmesser 4,8mm 2:1 Schwarz

Errebi code: 10677
Durchmesser: 4,8mm
Arbeitstemperatur (°C): -55° / +135°
Verkauf ein meter
Read moreShow less
0,41 € (tax excl.)
0,50 €

Mengenrabatt

Menge Stückpreis Sie sparen
4 0,50 € 0,00 €
12 0,45 € 0,59 €
28 0,40 € 2,79 €
52 0,38 € 6,50 €
100 0,32 € 17,56 €
252 0,28 € 56,66 €
500 0,25 € 125,05 €
1000 0,22 € 275,36 €
Available in stock 2662 Artikel
Die Mindestbestellmenge für diesen Artikel ist 4.
Zustand
Neu
Reference:
RBGNTR4.8
Zur Wunschliste hinzufügen(1)
Beschreibung
Polyolefin Sheath 2:1 shrink flexible, with high ratio of narrowing suited to various applications given its particular adaptability to all forms. Widely used for insulation and identification in electrical wiring, for cable assembly or as simple mechanical protection. It is also suitable for all those applications where a relatively low shrinkage temperature is required.

Features:
- Polyolefin
- Shrinkage factor: 2:1
- Self extinguishing
- Suitable for any use
- Highly flexible
- Tensile strength: = 17 MPa
- Elongation: = 500%
- Secant modulus: 175 MPa
- Specific weight: 1,30g / cm³
- Elongation after Heat Aging: 500%
- Tensile strength after thermal aging (168 hours at 175 ° C): 13 MPa
- Elongation after Heat Shock (4 hours at 250 ° C): No cracking
- Tensile strength after thermal shock (4 hours at 250 ° C): 13 MPa
- Low Temperature Flexibility: It does not break at -55 ° C
- Flammability: Self-extinguishing UL 224
- Dielectric Strength: 24 kV/mm
- Volume Resistivity: >= 10^14 Ohm/cm
- Weathering: Non-corrosive
- Water absorption: 0.15%

Certifications:
- Meets MIL - DTL - 123053/5
- Compliant with: RoHS

Application:
- Operating temperature: from -55°C to + 135°C
- Minimum shrinkage temperature: + 90°C
- Longitudinal variation: 0 ± 10% maximum
Read moreShow less
Artikeldetails
RBGNTR4.8

Technische Daten

Produktart
Schrumpfschläuche
Material
Polyolefin
Farbe
Schwarz
Betriebstemperatur
-55°C bis +125°C
Innendurchmesser
4.8 mm
Schrumpfrate
2 bis 1
Minimale Schrumpftemperatur
110°C
Kleber
Nein
Niedrigtemperatur-Flexibilität
Bis zu -55° C
Dielektrische Steifigkeit
26 kv/mm
Dicke
0.5 mm
Erweiterbar
Nein
Mindestbestellmenge
4
Maßeinheit
meter
