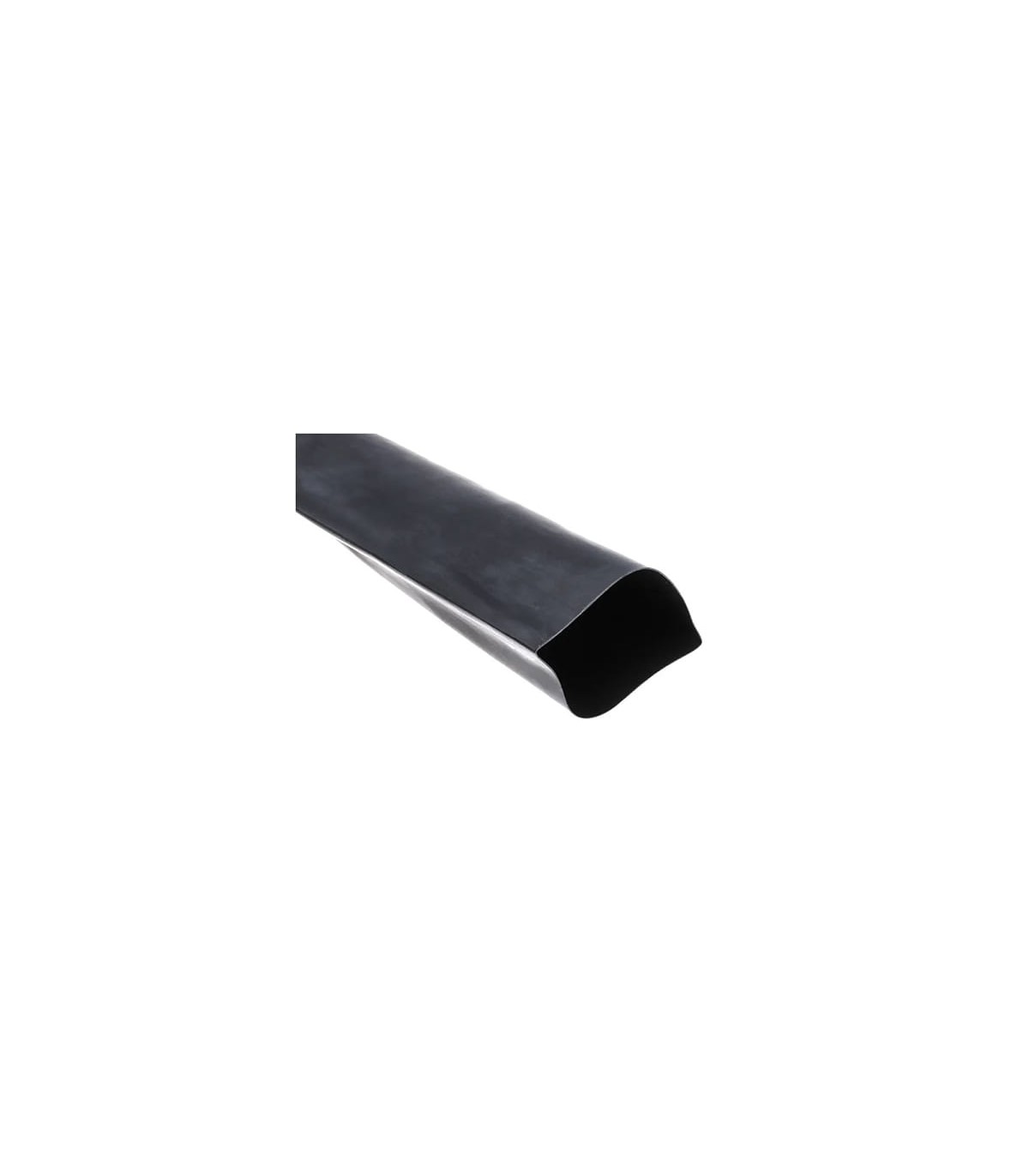

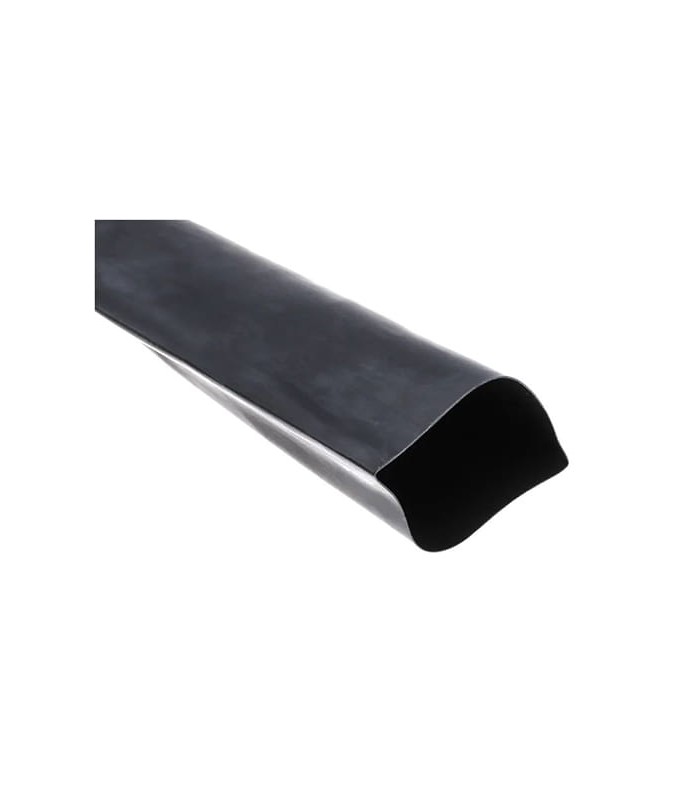

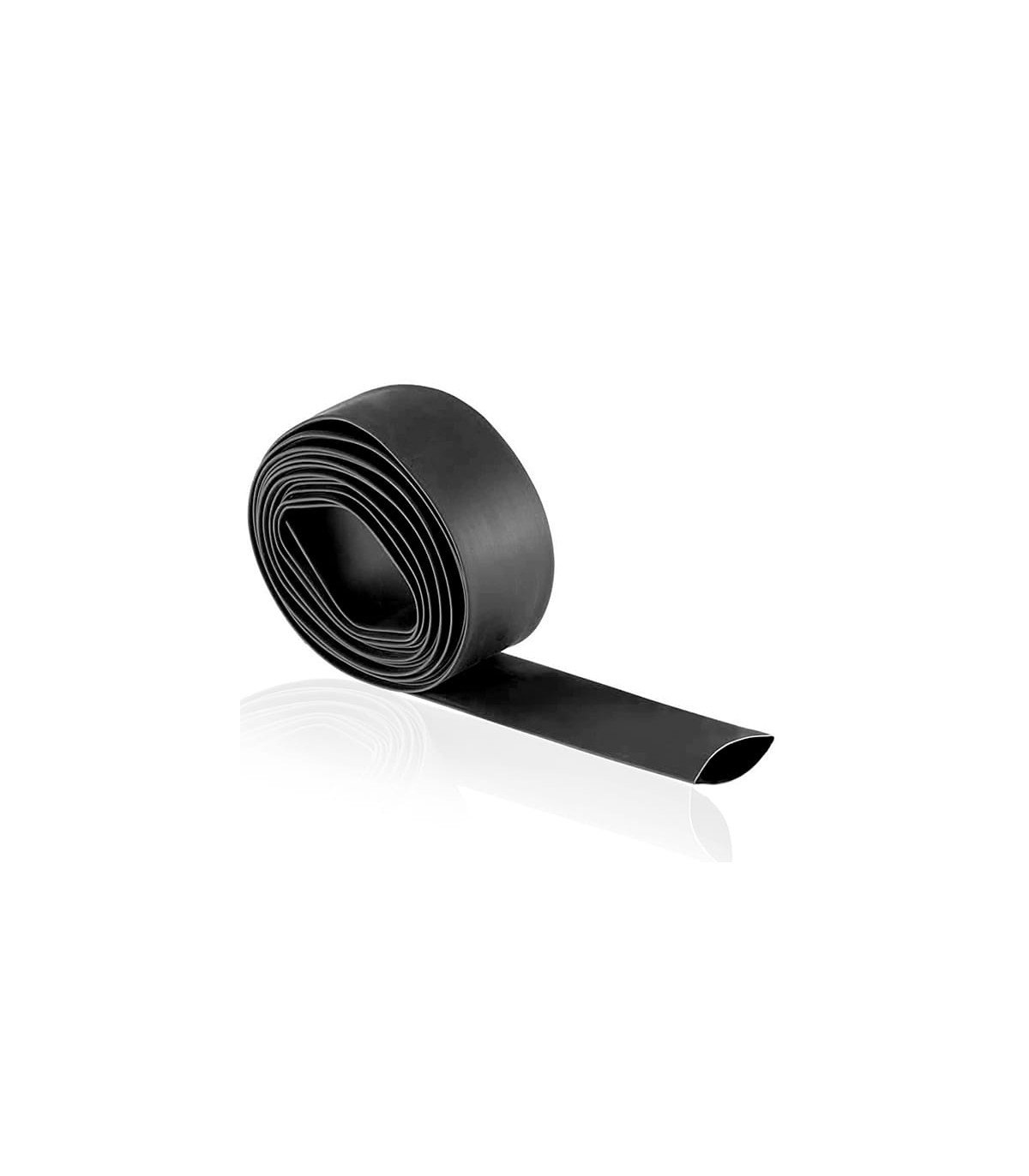

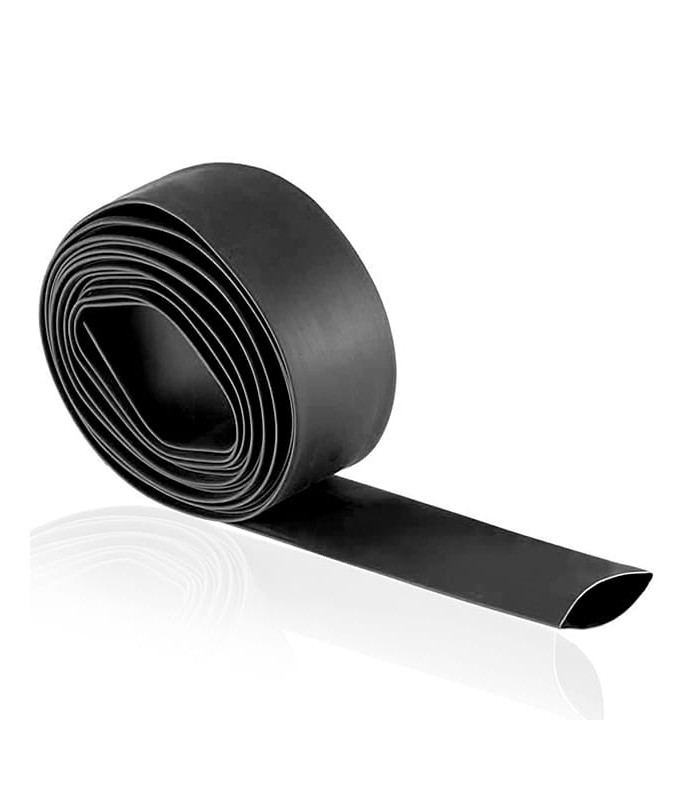

Schrumpfschläuche mit Leim Durchmesser 24mm 4:1 Schwarz

Flexible heat shrink tubing 4:1 in polyolefin with thermoplastic adhesive to ensure a better seal. High shrink ratio suitable for various applications given its particular adaptability to all forms. Widely used for insulation and identification in electrical connections, for cable assembly or as simple mechanical protection. It is also suitable for all those applications where a relatively low shrinkage temperature is required.

Continuous operating temperature from -55°C to +110°C.
Shrink Temperature: 95°C.
SELF EXTINGUISHING

Tensile strength: 15 MPa
Shrinkage: 4:1
Elongation at break: 400%
Longitudinal: 18% max
Specific weight: 1,25g/cm3
Elongation at break after heat aging (168 hours at 150°C): 320%
Tensile strength after thermal aging (168 hours at 150°C): 15 MPa
Elongation after Heat Shock (4 hours at 200°C) to IEC 811-1-2 360%
Tensile strength after thermal shock (4 hours at 200°C): 15 MPa
Low Temperature Flexibility: It does not break at -55°C
Flammability: Self-extinguishing UL 224
Dielectric Strength: 22 kV/mm
Volume Resistivity: 10 Ohm/cm
Weathering: Non-corrosive
Water absorption: 0.15%
