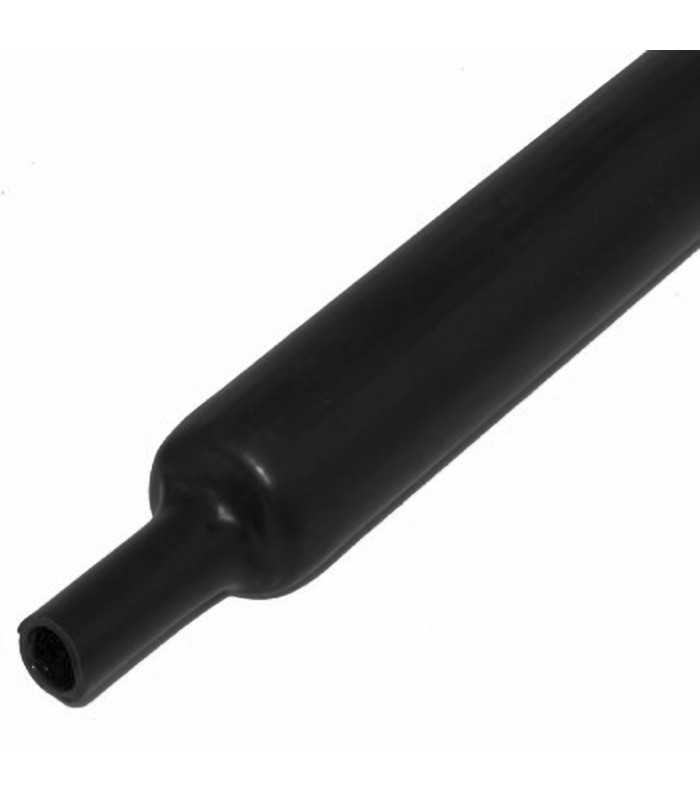

Schrumpfschläuche ohne Klebstoff Durchmesser 19,1mm 2:1 Schwarz

Errebi code: 12142
Durchmesser: 19,1 mm
Arbeitstemperatur (°C): -55° / +135°
Verkauf ein meter

Mit Ihrem Kauf unterstützen Sie den Verein R.A.Y.    Logo_R.A.Y.
Read moreShow less
1,79 € (tax excl.)
2,18 €

Mengenrabatt

Menge Stückpreis Sie sparen
11 1,97 € 2,37 €
26 1,75 € 11,33 €
51 1,64 € 27,84 €
101 1,42 € 77,42 €
251 1,20 € 246,39 €
501 1,09 € 547,04 €
1001 0,98 € 1.203,38 €
Available in stock 499 Artikel
100 % sichere Zahlungen
Zustand
Neuer Artikel
Reference:
RBGNTR19.1
Beschreibung
Polyolefin Sheath 2:1 shrink flexible, with high ratio of narrowing suited to various applications given its particular adaptability to all forms. Widely used for insulation and identification in electrical wiring, for cable assembly or as simple mechanical protection. It is also suitable for all those applications where a relatively low shrinkage temperature is required.

Features:
- Polyolefin
- Shrinkage factor: 2:1
- Self extinguishing
- Suitable for any use
- Highly flexible
- Tensile strength: = 17 MPa
- Elongation: = 500%
- Secant modulus: 175 MPa
- Specific weight: 1,30g / cm³
- Elongation after Heat Aging: 500%
- Tensile strength after thermal aging (168 hours at 175 ° C): 13 MPa
- Elongation after Heat Shock (4 hours at 250 ° C): No cracking
- Tensile strength after thermal shock (4 hours at 250 ° C): 13 MPa
- Low Temperature Flexibility: It does not break at -55 ° C
- Flammability: Self-extinguishing UL 224
- Dielectric Strength: 24 kV/mm
- Volume Resistivity: >= 10^14 Ohm/cm
- Weathering: Non-corrosive
- Water absorption: 0.15%

Certifications:
- Meets MIL - DTL - 123053/5
- Compliant with: RoHS

Application:
- Operating temperature: from -55°C to + 135°C
- Minimum shrinkage temperature: + 90°C
- Longitudinal variation: 0 ± 10% maximum
Read moreShow less
Artikeldetails
RBGNTR19.1

Technische Daten

Produktart
Schrumpfschläuche
Material
Polyolefin
Farbe
Schwarz
Betriebstemperatur
-55°C bis +125°C
Innendurchmesser
19.1 mm
Schrumpfrate
2 bis 1
Minimale Schrumpftemperatur
110°C
Kleber
Nein
Niedrigtemperatur-Flexibilität
Bis zu -55° C
Dielektrische Steifigkeit
26 kv/mm
Dicke
0.8 mm
Erweiterbar
Nein
Mindestbestellmenge
1
Maßeinheit
meter
