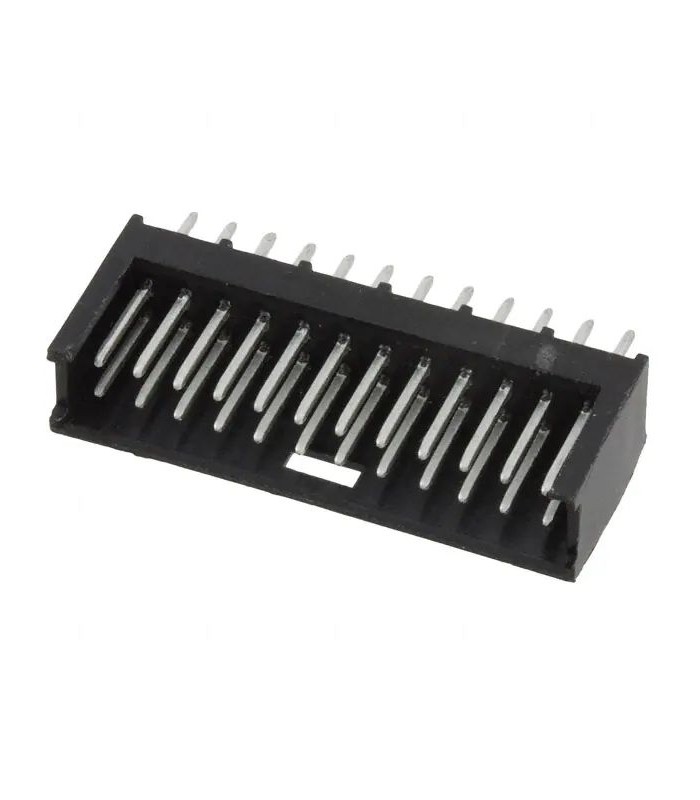

Modu II Steckverbinder männlich 12x2 wege PCB

Product type features:
- PCB Connector Assembly Type: PCB Mount Header
- Connector system: board-to-board
- Header type: Partially protected
- Sealable: No
- The connector and the contact end with: printed circuit

Configuration features:
- Load condition of the connector contact: fully loaded
- PCB mounting orientation: vertical
- Number of positions: 8
- Number of lines: 2

Electrical characteristics:
- Dielectric withstand voltage (max) (V): 750

Body features:
- Connector connector profile: Standard

Contact characteristics:
- Contact base material: phosphor bronze
- PCB PCB Contact Termination Area Plating Material: Tin
- Shape and shape of the contact: round
- PCB Contact Termination Area Plating material Thickness (µm): 3.5
- Contact mating area plating material: tin
- Contact mating area plating material finish: bright
- Contact type: Pin

Termination functions:
- End cap and tail length: 3.5 mm [.138 in]
- PCB termination method: Through hole - Soldering

Mechanical attack:
Panel mount function: without
- Anti-tear: Without
- PCB Mount Alignment PCB: Without
- Retention of coupling: with
- PCB mounting retention: without
- Connector Mounting Type: Board Mount

Housing features:
- Centerline (pitch): 2.54 mm [.1 in]
- Housing color: black
- Housing material: Thermoplastic

Dimensions:
- Row-to-row spacing: 2.54 mm [.1 in]

Terms of use:
- Operating temperature range: -65 - 105 ° C [-85 - 221 ° F]
- Housing temperature rating: Standard

Operation / Application:
- Circuit application: power and signal

Industry standard:
- Approved standards: CSA LR7189, UL E28476
- UL flammability classification: UL 94V-0
