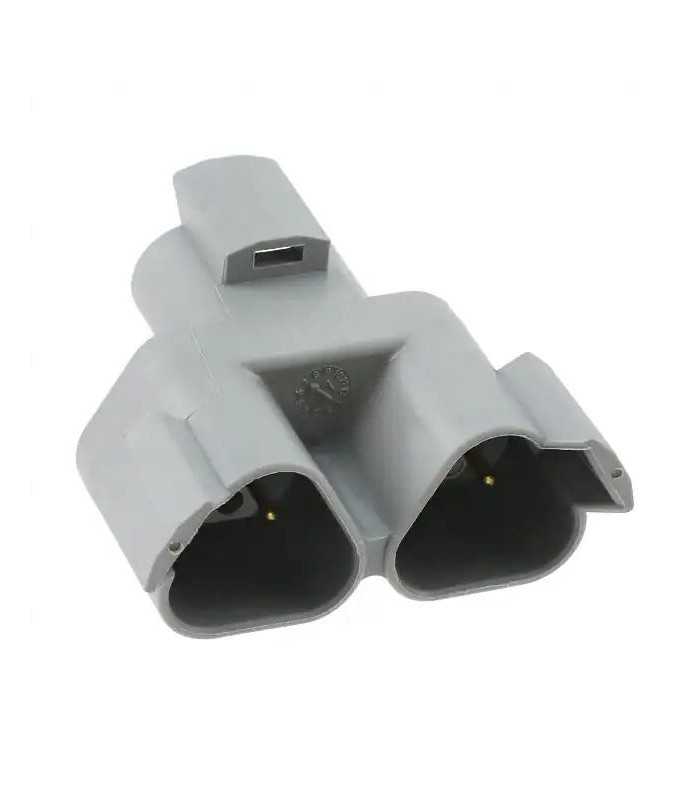

3-Wege-Anschluss DT-Anschlussstück mit 3 Ausgängen P007
Errebi code: 57643
Produzent code: DT04-3P-P007
Produzent: Deutsch
Read moreShow lessProduzent code: DT04-3P-P007
Produzent: Deutsch
17,60 €
(tax excl.)
21,47 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBRDTPM3V3U
Marke:
Zur Wunschliste hinzufügen
Product type features:
Connector and Housing Type: Male Terminal Housing
Connector system: cable to panel, cable to cable
Sealable: Yes
Configuration features
Number of positions: 3
Electrical characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 48
Characteristics of the body
Main product color: gray
Contact characteristics
Diameter of the coupling pin: 1.59mm
Contact rated current (max) (A): 13
Mechanical attack
Connector mounting type: cable mount (free hanging), set screw
Housing features
Center line (pitch): 10.01mm
Dimensions
Product height: 24.71 mm
Product length: 48.01mm
Product width: 44 mm
Terms of use
Operating temperature (max): 125 ° C
Operating temperature range: -55 - 125 ° C
UL flammability classification: 12mm flame test according to UL-94 standard
Read moreShow less
Connector and Housing Type: Male Terminal Housing
Connector system: cable to panel, cable to cable
Sealable: Yes
Configuration features
Number of positions: 3
Electrical characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 48
Characteristics of the body
Main product color: gray
Contact characteristics
Diameter of the coupling pin: 1.59mm
Contact rated current (max) (A): 13
Mechanical attack
Connector mounting type: cable mount (free hanging), set screw
Housing features
Center line (pitch): 10.01mm
Dimensions
Product height: 24.71 mm
Product length: 48.01mm
Product width: 44 mm
Terms of use
Operating temperature (max): 125 ° C
Operating temperature range: -55 - 125 ° C
UL flammability classification: 12mm flame test according to UL-94 standard
RBRDTPM3V3U
Technische Daten
- Produktart
- Steckverbinderkörper
- Serie
- DT
- Stromstärke
- 13A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Grau
- Schutzklasse (IP)
- IP68
- Betriebstemperatur
- -55°C bis +125°C
- Spannung
- 250V
- Montage
- Auf Kabel
- Art
- Weibilich
- Anzahl der Pole
- 3
- Anzahl der reihen
- 2
- Raster
- 10.01 mm
- Ausrichtung
- 180°
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
