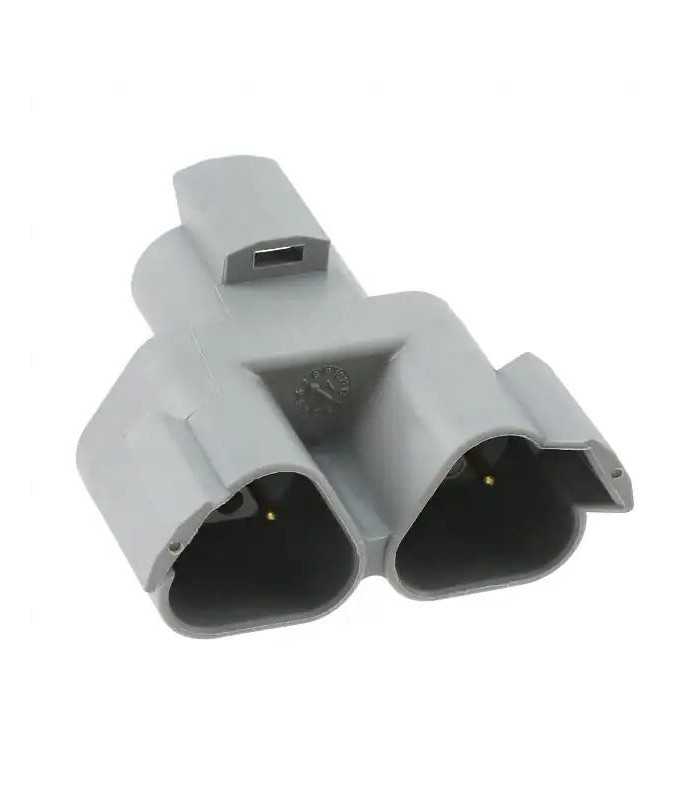

Conexión DT de 3 vías macho con 3 salidas P007
Código ErreBi: 57643
Código productor: DT04-3P-P007
Productor: Deutsch
Lee masShow lessCódigo productor: DT04-3P-P007
Productor: Deutsch
17,60 €
(tax excl.)
21,47 €
(impuestos inc.)
Estado
Nuevo
Referencia:
RBRDTPM3V3U
Marca:
A lista de deseos
Product type features:
Connector and Housing Type: Male Terminal Housing
Connector system: cable to panel, cable to cable
Sealable: Yes
Configuration features
Number of positions: 3
Electrical characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 48
Characteristics of the body
Main product color: gray
Contact characteristics
Diameter of the coupling pin: 1.59mm
Contact rated current (max) (A): 13
Mechanical attack
Connector mounting type: cable mount (free hanging), set screw
Housing features
Center line (pitch): 10.01mm
Dimensions
Product height: 24.71 mm
Product length: 48.01mm
Product width: 44 mm
Terms of use
Operating temperature (max): 125 ° C
Operating temperature range: -55 - 125 ° C
UL flammability classification: 12mm flame test according to UL-94 standard
Lee masShow less
Connector and Housing Type: Male Terminal Housing
Connector system: cable to panel, cable to cable
Sealable: Yes
Configuration features
Number of positions: 3
Electrical characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 48
Characteristics of the body
Main product color: gray
Contact characteristics
Diameter of the coupling pin: 1.59mm
Contact rated current (max) (A): 13
Mechanical attack
Connector mounting type: cable mount (free hanging), set screw
Housing features
Center line (pitch): 10.01mm
Dimensions
Product height: 24.71 mm
Product length: 48.01mm
Product width: 44 mm
Terms of use
Operating temperature (max): 125 ° C
Operating temperature range: -55 - 125 ° C
UL flammability classification: 12mm flame test according to UL-94 standard
RBRDTPM3V3U
Ficha técnica
- Tipo de producto
- Cuerpo del conector
- Serie
- DT
- Amperaje
- 13A
- Material
- PA (Poliamida, Nylon)
- Color
- Gris
- Protección IP
- IP68
- Temperatura de funcionamiento
- -55°C a +125°C
- Voltaje
- 250V
- Montaje
- En cable
- Clase
- Hembra
- Número de polos
- 3
- Número de Filas
- 2
- Paso
- 10.01 mm
- Orientación
- 180°
- Minima pedido
- 1
- Tipo de unidad
- pieza
