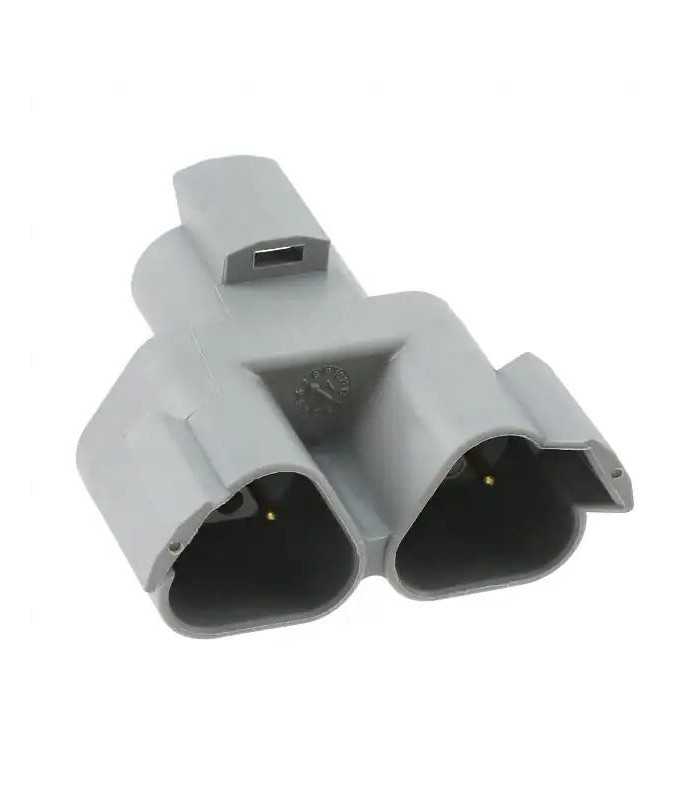

Raccord DT 3 voies port mâle 3 sorties P007
Code ErreBi: 57643
Code Producteur: DT04-3P-P007
Producteur: Deutsch
Lire la suiteShow lessCode Producteur: DT04-3P-P007
Producteur: Deutsch
17,60 €
(tax excl.)
21,47 €
TTC
Condition
Neuf
Référence:
RBRDTPM3V3U
Marque:
Ajouter à la liste de souhaits
Product type features:
Connector and Housing Type: Male Terminal Housing
Connector system: cable to panel, cable to cable
Sealable: Yes
Configuration features
Number of positions: 3
Electrical characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 48
Characteristics of the body
Main product color: gray
Contact characteristics
Diameter of the coupling pin: 1.59mm
Contact rated current (max) (A): 13
Mechanical attack
Connector mounting type: cable mount (free hanging), set screw
Housing features
Center line (pitch): 10.01mm
Dimensions
Product height: 24.71 mm
Product length: 48.01mm
Product width: 44 mm
Terms of use
Operating temperature (max): 125 ° C
Operating temperature range: -55 - 125 ° C
UL flammability classification: 12mm flame test according to UL-94 standard
Lire la suiteShow less
Connector and Housing Type: Male Terminal Housing
Connector system: cable to panel, cable to cable
Sealable: Yes
Configuration features
Number of positions: 3
Electrical characteristics
Operating voltage (VAC): 250
Operating voltage (VDC): 250
Nominal voltage architecture (V): 12, 24, 48
Characteristics of the body
Main product color: gray
Contact characteristics
Diameter of the coupling pin: 1.59mm
Contact rated current (max) (A): 13
Mechanical attack
Connector mounting type: cable mount (free hanging), set screw
Housing features
Center line (pitch): 10.01mm
Dimensions
Product height: 24.71 mm
Product length: 48.01mm
Product width: 44 mm
Terms of use
Operating temperature (max): 125 ° C
Operating temperature range: -55 - 125 ° C
UL flammability classification: 12mm flame test according to UL-94 standard
RBRDTPM3V3U
Data sheet
- Type de produit
- Corps du connecteur
- Serie
- DT
- Ampérage
- 13A
- Matériel
- PA (Polyamide, Nylon)
- Couleur
- Gris
- Protection IP
- IP68
- Température de fonctionnement
- -55°C à +125°C
- Voltage
- 250V
- Montage
- Sur câble
- Genre
- Femelle
- Nombre de pôles
- 3
- Nombre de rangées
- 2
- Pas
- 10.01 mm
- Orientation
- 180°
- Minimale commande
- 1
- Unité de mesure
- pièce
