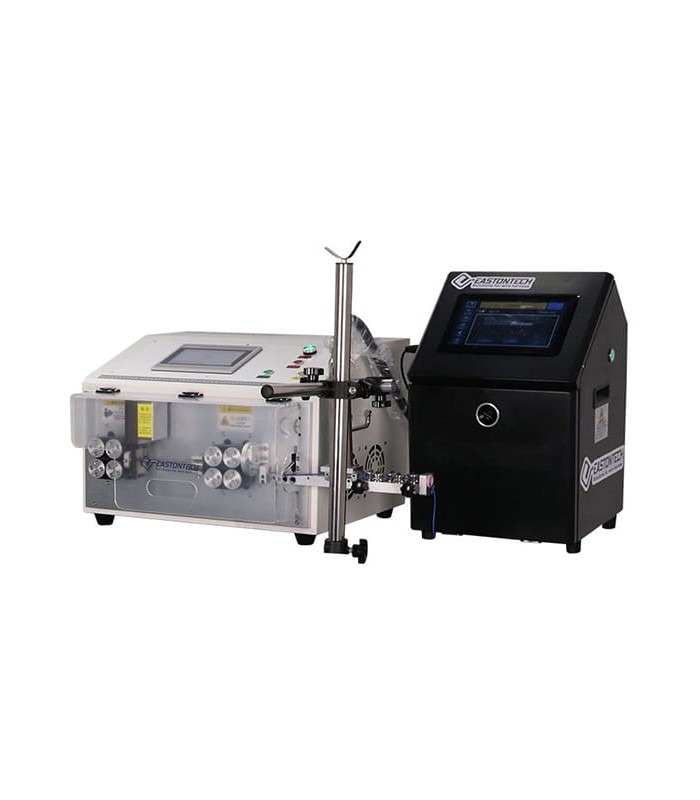

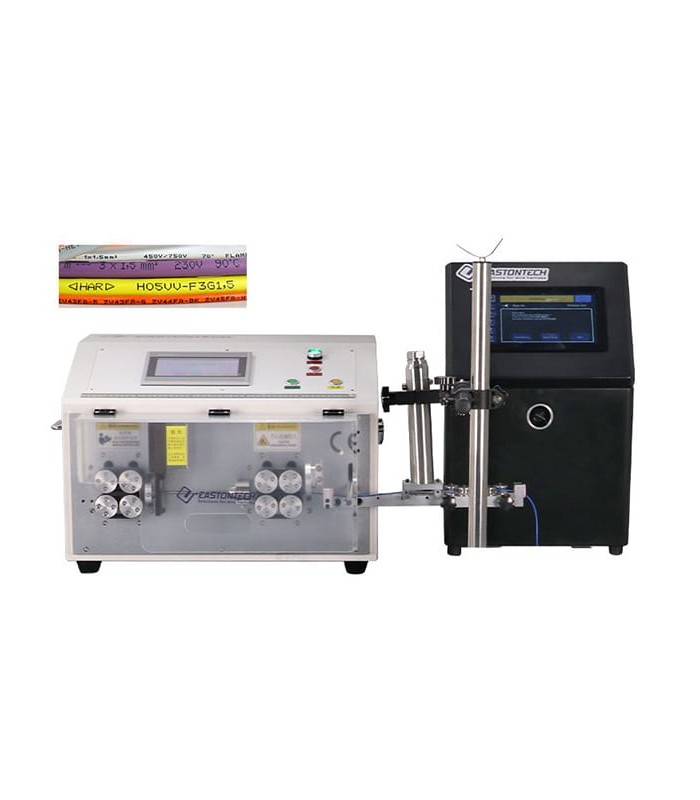

Automatische Maschine zum Schneiden und Abisolieren von einadrigen Kabeln (1,5–35 mm²) + Tintenstrahlmarkierer

Features

The EW-05A+P is designed to process a wide range of industrial wires and cables up to 35mmq, adding customized inkjet printing.
• Cutting/Stripping (optional).
• Robust 8-roller feeding machine.
• Belt feeding: ensures no scratches on the sheath.
• PLC touch screen with intuitive program.
• Memory capacity of 100 materials
• Optional cutting device and inkjet printer

Technical data

Model: RBEW05A+P
Conductor cross-section: 1.5 - 35 mmq
Cutting length: 1 - 100,000 mm
Cutting length tolerance: < 0.002 * L
Stripping length (side I): 0 - 250 mm
Stripping length (side II): 0 - 120 mm
Max. guide tube diameter: 16 mm
Guide mode: 8 rollers with belt guide
Display mode: 7-inch touch screen
Memory capacity: 100 materials
Blade material: Steel
Productivity: 1500 - 2000 pcs./h
Power supply: 110, 220 V (50 - 60 Hz)
Power: 650W
Weight: 70Kg
Dimensions: 560*520*450mm
