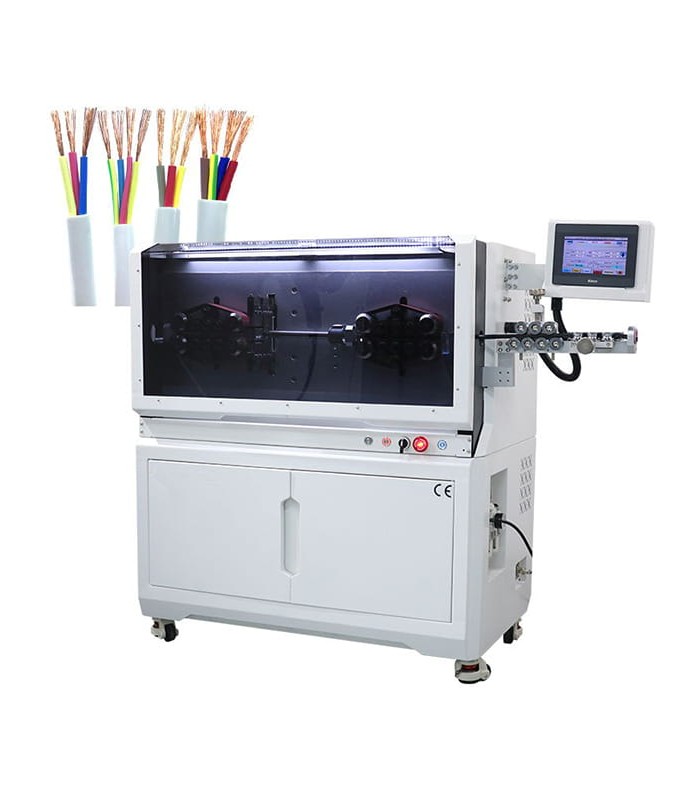

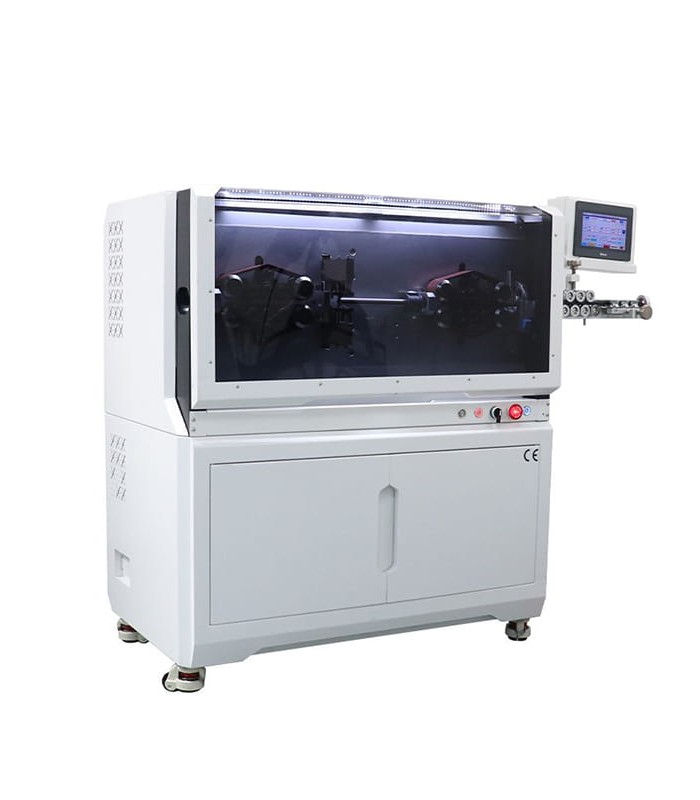

Automatische Maschine zum Schneiden und Abisolieren von ein- und mehradrigen Kabeln

Technical data

Model: RBEW05H+
Conductor section: 2.5 - 120 mm2
Cable: single core cable, multi core cable, sheathed cable, PVC cable etc.
Cutting length: 1-999,999.9 mm
Cutting length tolerance: < 0.002 * L (L = cutting length)
Maximum diameter of the guide tube: 27 mm
Productivity: 2000 pcs/h (single core cable)
900 pcs/h (multi-conductor cable)
Blade material: Steel
Display mode: 7 inch touch screen
Driving Mode: Servo motor cutting with 24 roller driving system
Feeding mode: Tape feeding with pressure stripping function
Power supply: 110, 220 V (50 - 60 Hz)
Power: 1.1 kW
Air pressure: 0.5 - 0.8 MPa
Weight: 260 kg
Dimensions: 1020*590*1440 mm
Remarks: Customized options by sending samples
