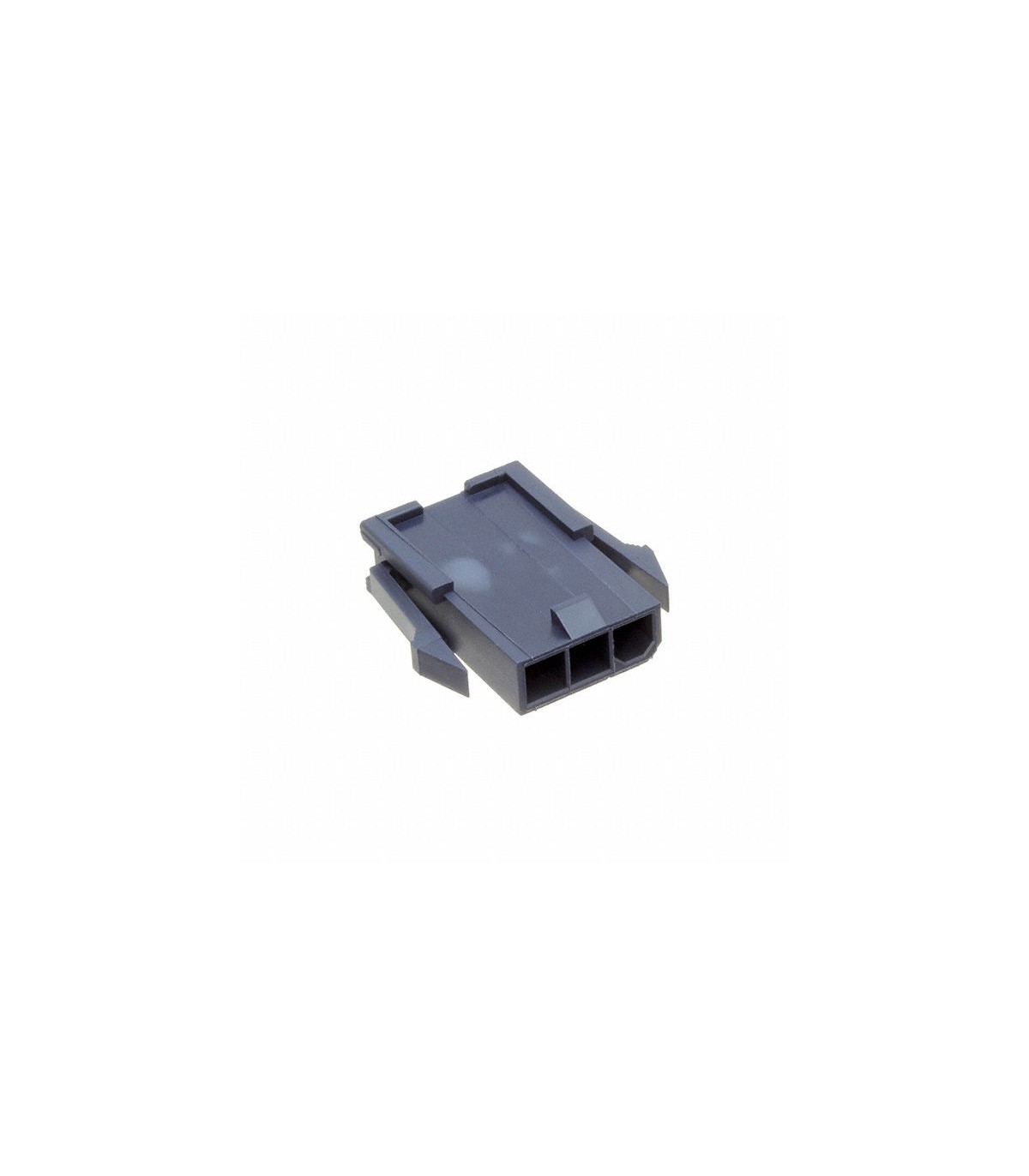

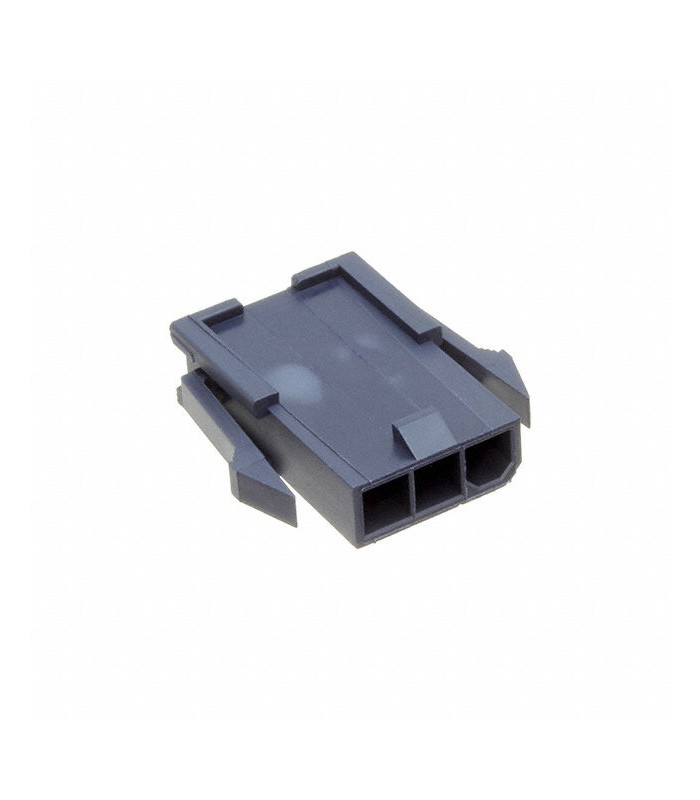

Steckverbinder Mini Fit männlich 3 wege schwarz

Errebi code: 48483
Produzent code: 172646-0312
Produzent: Molex
Read moreShow less
2,34 € (tax excl.)
2,85 € (inkl. MwSt.)

Mengenrabatt

Menge Stückpreis Sie sparen
10 2,57 € 2,85 €
25 2,28 € 14,27 €
50 2,14 € 35,69 €
100 1,86 € 99,92 €
250 1,57 € 321,17 €
500 1,43 € 713,70 €
1000 1,28 € 1.570,14 €
Available in stock 8096 Artikel
Zustand
Neu
Reference:
RBCTMNFTPM3VNRM.UL
Marke:
Zur Wunschliste hinzufügen
Beschreibung
Product Name: Mini-Fit Jr.
Series: 172646
Circuits (maximum): 3
Number of Rows: 1
Color - Resin: Black
Material - Resin: Nylon
Flammability: 94V-2
Gender: Plug
Glow-Wire Capable: Yes
Keying to Mating Part: None
Lock to Mating Part: Yes
Panel Mount: Yes
Pitch - Mating Interface: 4.20mm
Pitch - Termination Interface: 4.20mm
Polarized to Mating Part: Yes
Stackable: No
Temperature Range - Operating (°C): -40° to +105°
Read moreShow less
Artikeldetails
RBCTMNFTPM3VNRM.UL

Technische Daten

Produktart
Steckverbinderkörper
Serie
Mini-Fit
Stromstärke
13A
Material
PA (Polyamid, Nylon)
Farbe
Schwarz
Schutzklasse (IP)
IP20
Betriebstemperatur
-40°C bis +105°C
Entzündbarkeit
94V-2
Montage
Für Leitungen
Art
Männlich
Anzahl der Pole
3
Anzahl der reihen
1
Raster
4.20 mm
Ausrichtung
180°
Mindestbestellmenge
1
Maßeinheit
stück

Besondere Bestellnummern

upc
887191725680
