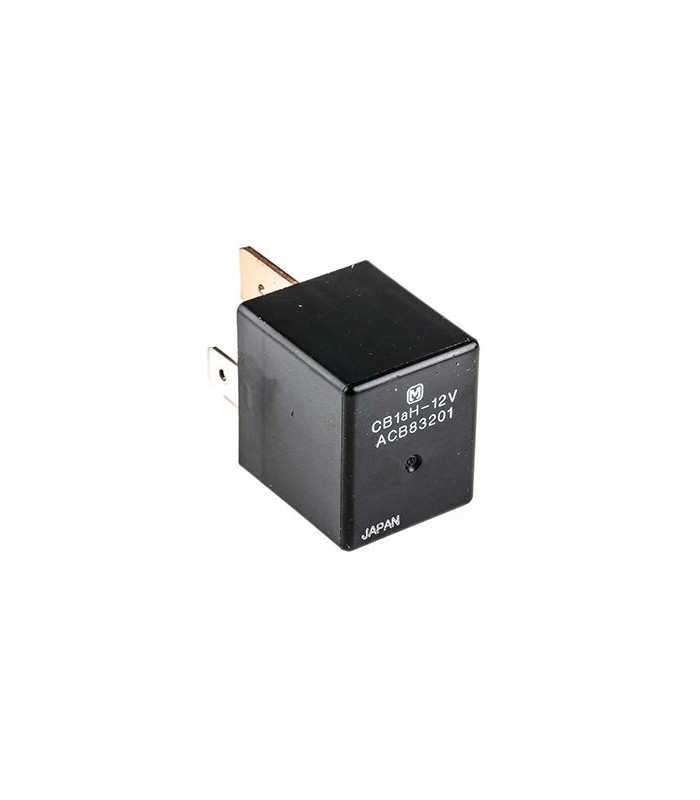

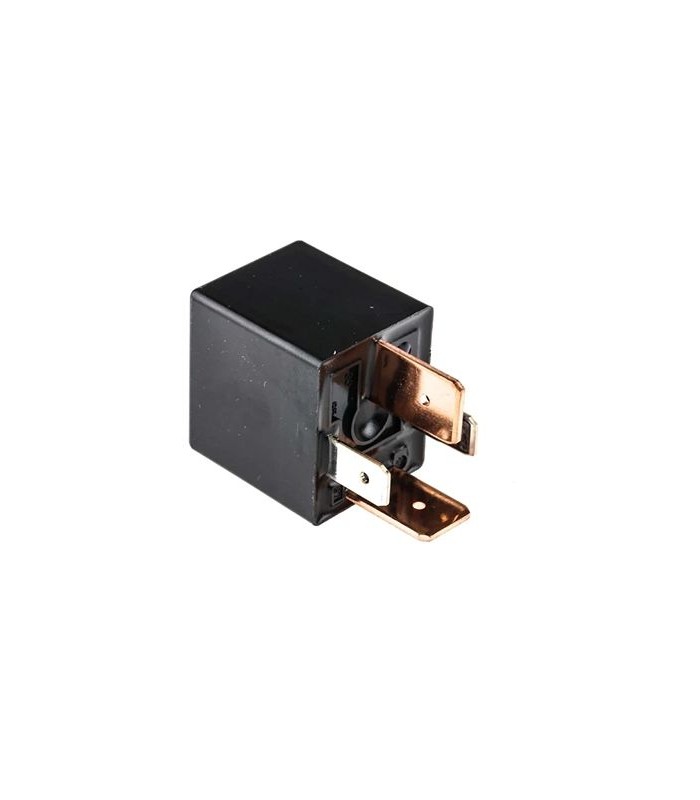

Panasonic 12V 70A Kfz-Relais

Panasonic CB Series High Power Automotive Relays feature high switching capacity and feature ISO terminal arrangement in a compact (22 x 26mm) space saving package. Typical applications include automobiles, construction and agricultural equipment.

- Compact Mini-ISO terminal layout.
- High switching capacity of 40 A.
- High thermal resistance.
- Reduced temperature rise.
- Version with built-in resistance available.

The Panasonic SPST non-staticking high power automotive is a plug mount relay. It is operated with the help of a 12 V DC coil and up to 70A of current through the coil to switch positions. This relay has silver alloy contacts. The contact arrangement is 1 Form A with hermetic type protection structure.

Features and Benefits
- High thermal resistance of 125 ° C.
- Service temperature range between -40 ° C and 85 ° C.
- High contact capacity.
- Built-in type resistor.
- Compact and mini-ISO terminal.
- Built-in diode type surge current absorption that works when the relay coil is OFF.

Applications
- Motors for automotive use.
- Agricultural equipment.
- Construction equipment.

Specifications
Attribute: Value
Coil voltage: 12 Vdc
Coil Power: 1.8W
Coil Resistance: 103 Ohm
Coil - contact insulation: 500V rms
Contact configuration: SPST
Mounting type: Plug-in
Switching current: 70A
Terminal type: Plug-in
Maximum DC switching voltage: 14V
Depth: 22mm
Height: 25.5mm
Length: 26.5mm
