Errebi code: 24327Produzent code: DF22L-3S-7.92C(28)Produzent: Hirose

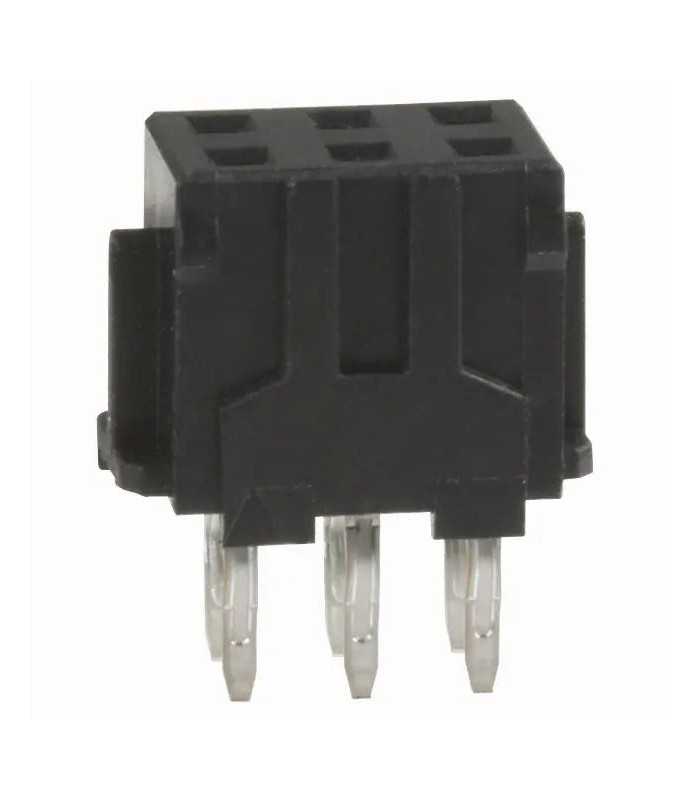

Steckverbinder DF11 Weiblich 3x2 Wege PCB
Errebi code: 21824
Produzent code: DF11-6DS-2DSA(05)
Produzent: Hirose
Read moreShow lessProduzent code: DF11-6DS-2DSA(05)
Produzent: Hirose
3,03 €
(tax excl.)
3,70 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBCTDF11F3X2VS
Marke:
Zur Wunschliste hinzufügen
Basic Specifications
- Connector Type: Header
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 6
- Number of Rows (Interface): 2
- Mounting Pitch: 2.0 mm
- Contact Pitch: 2.0 mm
- Connector Length: 8.0 mm
- Connector Width: 5.0 mm
- Connector Height: 6.6 mm
- Mounting Style: THT
- Mounting Side: Standard on-Board
- Staggered Lead: No
- Recommended PCB Thickness: 1.6 mm Max.
- Connector Orientation: Straight
- Mating/Unmating Cycles: 30
- Contact Plating: Tin
- Plating Thickness: 2.0 µm
- Housing Color: Black
- Operating Temperature: -40°C to 85°C
Mechanical Specifications
- Locking Style: Friction
Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
Read moreShow less
- Connector Type: Header
- Cable Assembly: No
- Safety Standards: C-UL/CSA, UL
- Number of Positions: 6
- Number of Rows (Interface): 2
- Mounting Pitch: 2.0 mm
- Contact Pitch: 2.0 mm
- Connector Length: 8.0 mm
- Connector Width: 5.0 mm
- Connector Height: 6.6 mm
- Mounting Style: THT
- Mounting Side: Standard on-Board
- Staggered Lead: No
- Recommended PCB Thickness: 1.6 mm Max.
- Connector Orientation: Straight
- Mating/Unmating Cycles: 30
- Contact Plating: Tin
- Plating Thickness: 2.0 µm
- Housing Color: Black
- Operating Temperature: -40°C to 85°C
Mechanical Specifications
- Locking Style: Friction
Electrical Specifications
- Rated Current: 2.0 A
- Rated Voltage (AC): AC 250.0 V
- Rated Voltage (DC): DC 250.0 V
- Withstanding Voltage: 650 V Max.
RBCTDF11F3X2VS
Technische Daten
- Produktart
- Steckverbinder
- Serie
- DF11
- Stromstärke
- 2A
- Material
- PA (Polyamid, Nylon)
- Farbe
- Schwarz
- Betriebstemperatur
- -40°C a +85°C
- Aussenmass
- 8,00x5,00x6,60 (L x W x H)
- Spannung
- 250V
- Kontaktmaterial
- Messing
- Montage
- Gedruckte Schaltung
- Art
- Weibilich
- Anzahl der Pole
- 6
- Anzahl der reihen
- 2
- Raster
- 2.00 mm
- Ausrichtung
- 180°
- Kontaktbeschichtung
- Zinn
- Mindestbestellmenge
- 1
- Maßeinheit
- stück
