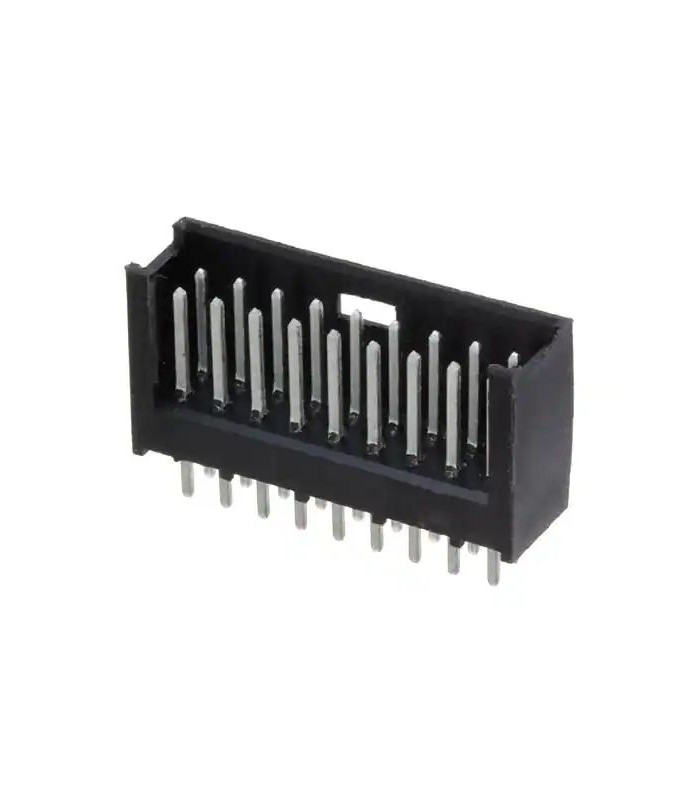

Modu II Steckverbinder männlich 9X2 wege PCB

Product Type Features
Applies To: Printed Circuit Board
Connector Style: Plug
PCB Mounting Orientation: Vertical
Connector Type: Header
Row-to-Row Spacing: 2.54 mm [ .1 in ]
Product Type: Connector
Profile: Standard
Gasket: Without
Board Standoff: Without
Strain Relief: Without
Stabilizers: Without

Configuration Features
Number of Positions: 18
Number of Rows: 2
Selectively Loaded: No
Keyed: No

Electrical Characteristics
Dielectric Withstanding Voltage: 750 V

Body Features
Header Type: Shrouded
Post Size (in): .025

Contact Features
Contact Base Material: Phosphor Bronze
Contact Type: Pin
Contact Mating Area Plating Material: Tin
Solder Tail Contact Plating Material: Tin
Contact Shape: Round
Contact Protection: With
Contact Protection Type: Shrouded

Termination Features
Termination Post Length: 3.5 mm [ .138 in ]
Termination End Plating Thickness (µm): 3.5
Termination Method to PC Board: Through Hole
Termination End Plating Material: Tin

Mechanical Attachment
PCB Mounting Style: Through Hole
Mating Connector Lock Type: Detent Windows
Mating Alignment Type: Polarization
PCB Mount Retention: Without
Mating Alignment: With
Panel Mount Retention: Without
Mating Connector Lock: With

Housing Features
Centerline: 2.54 mm [ .1 in ]
Housing Style: 3-Sided
Housing Material: Thermoplastic
Housing Color: Black

Dimensions
Shrouded End Dimension (mm): 1.65
Mating Post Length: 6.6 mm [ .26 in ]

Usage Conditions
Operating Temperature Range (°C): -65 – 105
High Temperature Housing: No

Operation/Application
High Speed Serial Data Connector: No

Industry Standards
Approved Standards: CSA LR7189, UL E28476
UL Flammability Rating: UL 94V-0
