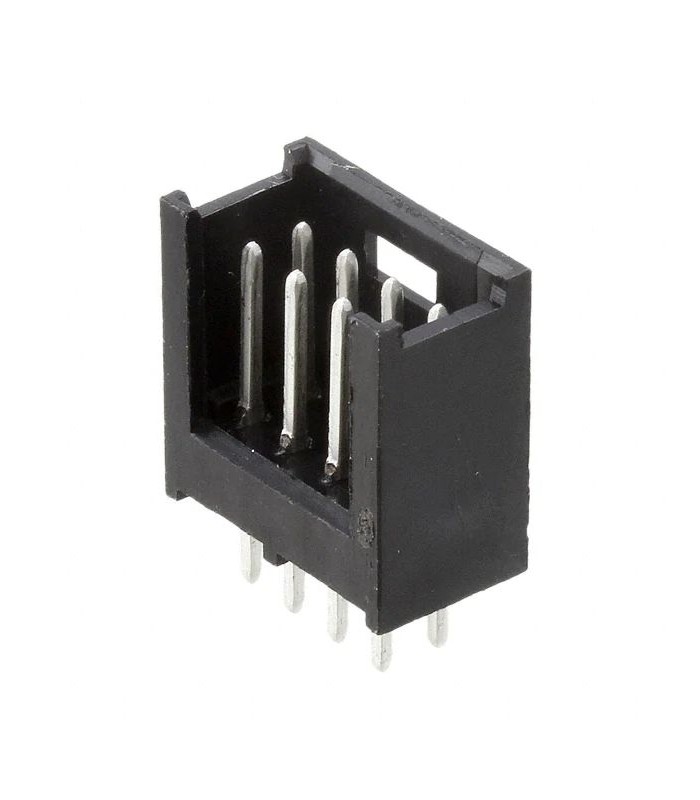

Modu II Steckverbinder männlich 4x2 wege PCB

Electrical characteristics:
- Dielectric withstand voltage (max) (V): 750

Body features:
- Standard connector profile

Contact characteristics:
- Contact base material: Phosphor bronze
- PCB Contact Termination Area: Tin Plating Material
- Contact shape and round shape
- PCB Contact Termination Area Plating material Thickness (µm): 3.5
- Contact Mating area Plating material Tin
- Contact Mating area Plating material Polished finish
- Contact type: Pin

Termination functions:
- Termination terminal and tail length 3.5 mm [.138 in]
- Method of terminating the printed circuit through the hole - Soldering

Mechanical attack:
- Panel mount function: without
- Anti-tear: without
- PCB Mount Alignment: Without
- Coupling retention: with
- PCB mounting retention: without
- Connector Mounting Type: Board Mount

Housing features:
- Centerline: (pitch) 2.54mm [0.1 inch]
- Housing color: Black
- Housing material: Thermoplastic

Dimensions:
- Row spacing 2.54 mm [.1 in]

Terms of use:
- Operating temperature range -65 - 105 ° C [-85 - 221 ° F]
- Housing temperature evaluation standard

Operation / Application:
- Power and signal application of the circuit

Industry standard:
- Approved standards CSA LR7189, UL E28476
- UL flammability classification UL 94V-0
