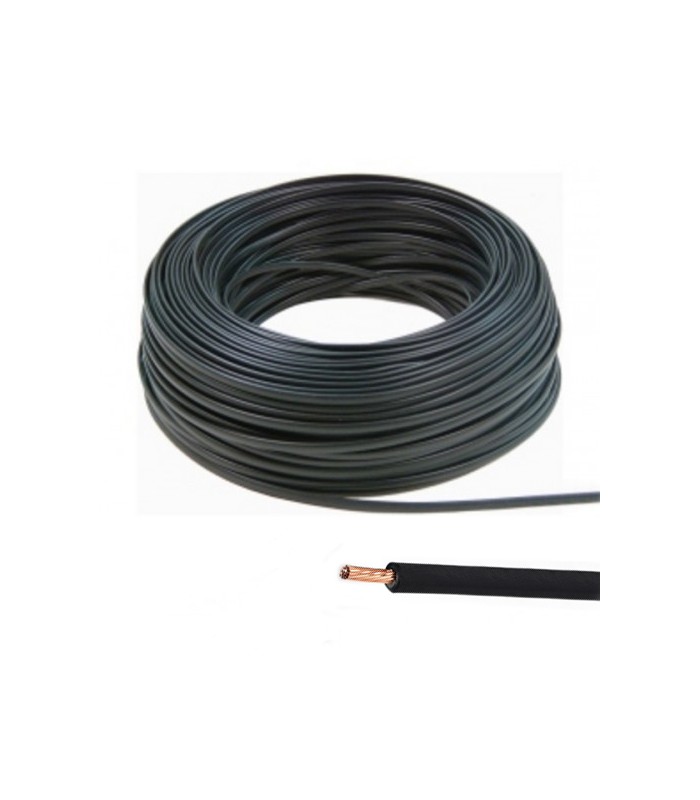

Solarkabel Draht Unipolar FG21M21 abs. 6,00 mmq Schwarz

ErreBi code: 15038
Verkauf ein meter
Read moreShow less
3,77 € (tax excl.)
4,60 €

Mengenrabatt

Menge Stückpreis Sie sparen
10 4,15 € 4,54 €
25 3,68 € 22,94 €
50 3,45 € 57,49 €
100 2,99 € 161,44 €
250 2,53 € 516,86 €
500 2,30 € 1.149,85 €
1000 2,07 € 2.531,97 €
Available in stock 80 Artikel
Zustand
Neu
Reference:
RBCV6FG21M21NR
Zur Wunschliste hinzufügen
Beschreibung
Conductors: annealed tinned copper cl.5 IEC 60228
Insulation: LSZH compound quality G21 CEI 20-91
Sheath: LSZH compound quality M21 CEI 20-91
Sheath color: black - red - blue
Flame retardant: IEC 60332-1-2
Halogen: (<0.5 mg / g - 0.5%) IEC 50267-2-1 / 2 - IEC 60754-1 / 2
Reduced emission of toxic gases: (toxicity index <2%) CEI 20-37 / 4-0
Reduced smoke emission: (transmittance> 60%) IEC 61034-2
UV-resistant: HD 605
Ozone resistant: IEC 50396
Long-term behavior: (20000 has 120 ° C) IEC 60216
Electrical resistance: according to IEC 60228
Maximum voltage: 1.2 kVac 1.8 kV DC (also ground)
Test voltage: 6.5 kV DC 15 kVac
Maximum working temperature: 90 ° C
Short circuit temperature: 250 ° C
Min. installation: -25 ° C
Bending radius: 6 x Ø
Read moreShow less
Artikeldetails
RBCV6FG21M21NR

Technische Daten

Produktart
Kabel FG21M21
Farbe
Schwarz
Außendurchmesser
6.80 mm
Betriebstemperatur min.
-40°C
Betriebstemperatur max.
+90°C
Dämm Material
LS0H (Low Smoke Zero Halogen)
Leiter (Material)
Zinnkupfer
Kabelquerschnitt mmq
6.00 mmq
Spannungsprüfung
4000V
Art der Anstellung
Photovoltaikanlagen
Widerstand des Dirigenten
<= 3.39 Ohm/Km
Mindestbestellmenge
1
Maßeinheit
meter
