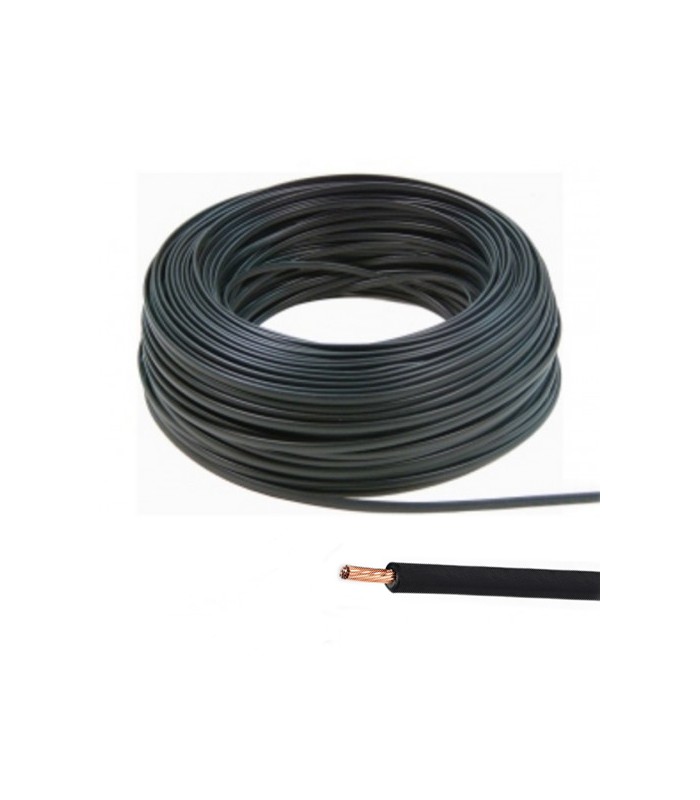

Câble Fil Unipolaire Solaire FG21M21 sec. 6,00 mmq Noir
Code ErreBi: 15038
Vendu au mètre
Lire la suiteShow lessVendu au mètre
3,77 €
(tax excl.)
4,60 €
TTC
Condition
Neuf
Référence:
RBCV6FG21M21NR
Marque:
Ajouter à la liste de souhaits
Conductors: annealed tinned copper cl.5 IEC 60228
Insulation: LSZH compound quality G21 CEI 20-91
Sheath: LSZH compound quality M21 CEI 20-91
Sheath color: black - red - blue
Flame retardant: IEC 60332-1-2
Halogen: (<0.5 mg / g - 0.5%) IEC 50267-2-1 / 2 - IEC 60754-1 / 2
Reduced emission of toxic gases: (toxicity index <2%) CEI 20-37 / 4-0
Reduced smoke emission: (transmittance> 60%) IEC 61034-2
UV-resistant: HD 605
Ozone resistant: IEC 50396
Long-term behavior: (20000 has 120 ° C) IEC 60216
Electrical resistance: according to IEC 60228
Maximum voltage: 1.2 kVac 1.8 kV DC (also ground)
Test voltage: 6.5 kV DC 15 kVac
Maximum working temperature: 90 ° C
Short circuit temperature: 250 ° C
Min. installation: -25 ° C
Bending radius: 6 x Ø
Lire la suiteShow less
Insulation: LSZH compound quality G21 CEI 20-91
Sheath: LSZH compound quality M21 CEI 20-91
Sheath color: black - red - blue
Flame retardant: IEC 60332-1-2
Halogen: (<0.5 mg / g - 0.5%) IEC 50267-2-1 / 2 - IEC 60754-1 / 2
Reduced emission of toxic gases: (toxicity index <2%) CEI 20-37 / 4-0
Reduced smoke emission: (transmittance> 60%) IEC 61034-2
UV-resistant: HD 605
Ozone resistant: IEC 50396
Long-term behavior: (20000 has 120 ° C) IEC 60216
Electrical resistance: according to IEC 60228
Maximum voltage: 1.2 kVac 1.8 kV DC (also ground)
Test voltage: 6.5 kV DC 15 kVac
Maximum working temperature: 90 ° C
Short circuit temperature: 250 ° C
Min. installation: -25 ° C
Bending radius: 6 x Ø
RBCV6FG21M21NR
Data sheet
- Type de produit
- Câble FG21M21
- Couleur
- Noir
- Diamètre externe
- 6.80 mm
- Température de fonctionnement min.
- -40°C
- Température de fonctionnement max.
- +90°C
- Matériau d'isolation
- LS0H (Low Smoke Zero Halogen)
- Conducteur (matériel)
- Cuivre Etamé
- Section de câble mmq
- 6.00 mmq
- Test de tension
- 4000V
- Type d'emploi
- Systèmes Photovoltaïques
- Résistance du conducteur
- <= 3.39 Ohm/Km
- Minimale commande
- 1
- Unité de mesure
- mètre
