Orange Pi R1 Plus LTS mit 1 GB RAM
Errebi code: 60607
Produzent: Orange
Arbeitsspeicher (SDRAM): 1GB DDR3 (gemeinsam mit GPU)
Orange Pi R1 Plus LTS ist ein Open-Source-Einplatinencomputer mit zwei Gigabit-Ethernet-Ports. Es ist sehr kompakt mit einer Abmessung von 56 x 57 mm. Es kann OpenWRT, Ubuntu und Debian ausführen.
Read moreShow lessProduzent: Orange
Arbeitsspeicher (SDRAM): 1GB DDR3 (gemeinsam mit GPU)
Orange Pi R1 Plus LTS ist ein Open-Source-Einplatinencomputer mit zwei Gigabit-Ethernet-Ports. Es ist sehr kompakt mit einer Abmessung von 56 x 57 mm. Es kann OpenWRT, Ubuntu und Debian ausführen.
71,71 €
(tax excl.)
87,49 €
(inkl. MwSt.)
Zustand
Neu
Reference:
RBOPR1PLTS1GB
Marke:
Zur Wunschliste hinzufügen

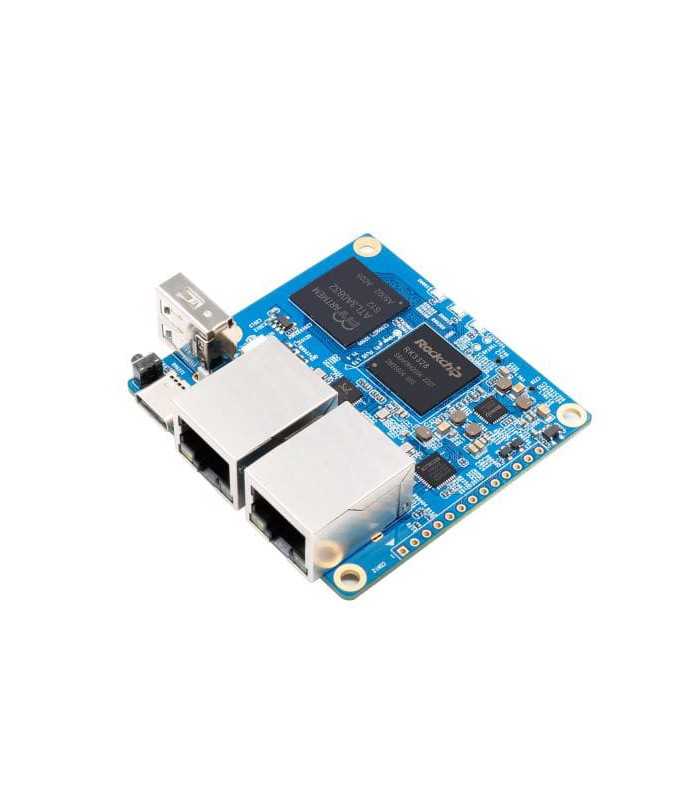

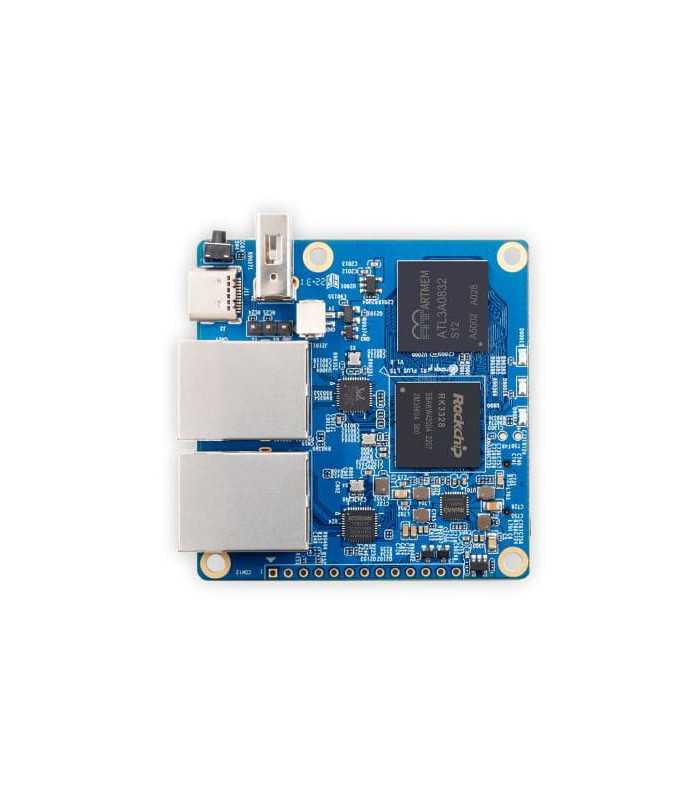

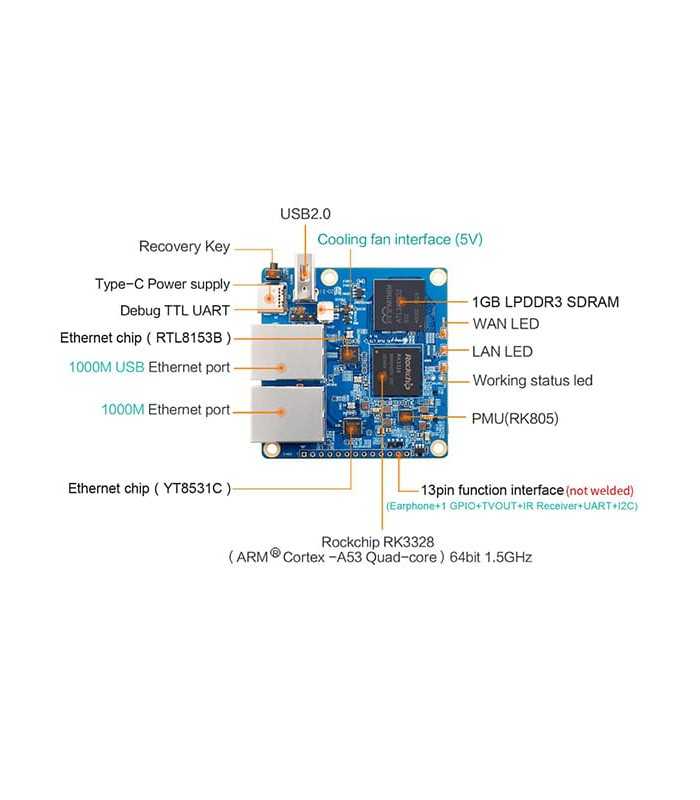

Orange Pi R1 Plus LTS uses the Rockchip RK3328 SoC, Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz and 1GB LPDDR3 SDRAM. It integrates cooling fan connector, USB 2.0 port, TF card slot, 13pin headers etc. It is powered through Type-C. It is suitable for industrial control needs.G.
Orange Pi R1 Plus LTS is for anyone who wants to start creating with technology - not just consuming it. lt's a simple, fun, useful tool that you can use to start taking control of the world around you.
Hardware specification
CPU:
- Rockchip RK3328
- Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz
GPU
- Mali-450MP2
- Supports OpenGL ES 1.0/2.0
Power management chip: RK805
Memory (SDRAM): 1GB LPDDR3(Not Shared With GPU)
Onboard Storage
- Micro-SD Card slot
- 16MB SPI Flash
Onboard Network:
- 10M/100M/1000M Ethernet (YT8531C)
- 10M/100M/1000M USB Ethernet (RTL8153B)
Video Outputs
- TV CVBS output(Via 13pin interface board)
Audio output: 3.5mm audio port(Via 13pin interface board)
Power Source: USB Type-C Interface 5V/2A Input
USB: 1x USB 2.0 HOST
Low-level peripherals: 13pin header with IR pin, Tv-out, AUDIO(no MIC), 2xUSB2.0(not support)and 1 GPIO port Note: 13Pin Headers Will Not Be Welded
Debug serial port: UART-TX?UART-RX and GND
Button: 1x Reset Button
Fan interface: 1x cooling fan interface (5V)
LED: Power LED & Status LED
Supported OS: OpenWRT, Ubuntu, Debian
Appearance specification introduction:
Product size: 56 mm x 57mm
Weight: 29.5g
- Rockchip RK3328
- Quad-Core ARM Cortex-A53 64-Bit Processor, Main Frequency Speeds Up To 1.5GHz
GPU
- Mali-450MP2
- Supports OpenGL ES 1.0/2.0
Power management chip: RK805
Memory (SDRAM): 1GB LPDDR3(Not Shared With GPU)
Onboard Storage
- Micro-SD Card slot
- 16MB SPI Flash
Onboard Network:
- 10M/100M/1000M Ethernet (YT8531C)
- 10M/100M/1000M USB Ethernet (RTL8153B)
Video Outputs
- TV CVBS output(Via 13pin interface board)
Audio output: 3.5mm audio port(Via 13pin interface board)
Power Source: USB Type-C Interface 5V/2A Input
USB: 1x USB 2.0 HOST
Low-level peripherals: 13pin header with IR pin, Tv-out, AUDIO(no MIC), 2xUSB2.0(not support)and 1 GPIO port Note: 13Pin Headers Will Not Be Welded
Debug serial port: UART-TX?UART-RX and GND
Button: 1x Reset Button
Fan interface: 1x cooling fan interface (5V)
LED: Power LED & Status LED
Supported OS: OpenWRT, Ubuntu, Debian
Appearance specification introduction:
Product size: 56 mm x 57mm
Weight: 29.5g
